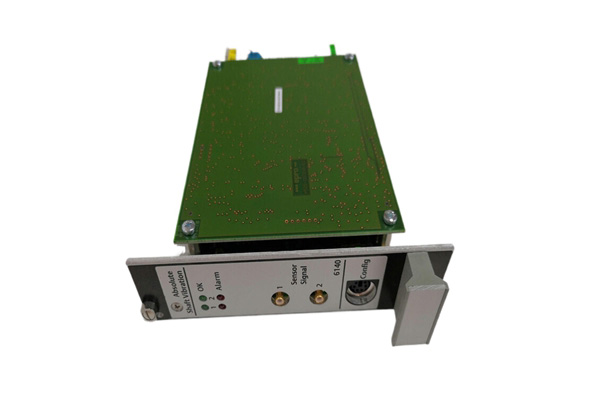

Emerson A6140 9199-00058 Product Overview

The Emerson A6140 9199-00058 is a two-channel, 3U size, 1-slot plug-in module that decreases cabinet space requirements in half from traditional four-channel 6U size cards. It is designed for use in the AMS 6500 Machinery Health Monitor, which is an integral part of PlantWeb® and AMS software. The A6140 is used to monitor shaft relative vibration, which is an important measurement on all sleeve bearing machines for predictive and protection monitoring.

Key Features

• Two independent or combined monitoring modes
• Eddy current, differential Emerson sensor inputs
• Galvanically isolated from power supply
• Input resistance >100 kΩ
• Input voltage range 0 to -22 VDC
• Lower cutoff 1 or 5 Hz
• Upper cutoff 50-2000 Hz* Frequency band 1-1000 Hz
• Non-synchronous vibration detection
• Synchronous vibration detection
• Alarm/trip outputs for each channel
• 4-20 mA output for each channel
• RS-485 communications

Additional Features

• The Emerson A6140 9199-00058 is CE certified.
• The Emerson A6140 9199-00058 is NEMA 4X rated.
• The Emerson A6140 9199-00058 is backed by Emerson’s global support network.

Applications

The Emerson A6140 9199-00058 is typically used in industrial applications, such as

• Pumps
• Fans
• Compressors
• Generators
• Motors

Specifications

• Size 3U
• Slots 1
• Input type Eddy current, differential Emerson sensor
• Input resistance >100 kΩ
• Input voltage range 0 to -22 VDC
• Lower cutoff 1 or 5 Hz
• Upper cutoff 50-2000 Hz
• Frequency band 1-1000 Hz
• Vibration detection Non-synchronous, synchronous
• Outputs Alarm/trip, 4-20 mA
• Communication RS-485
• Certifications CE, NEMA 4X
