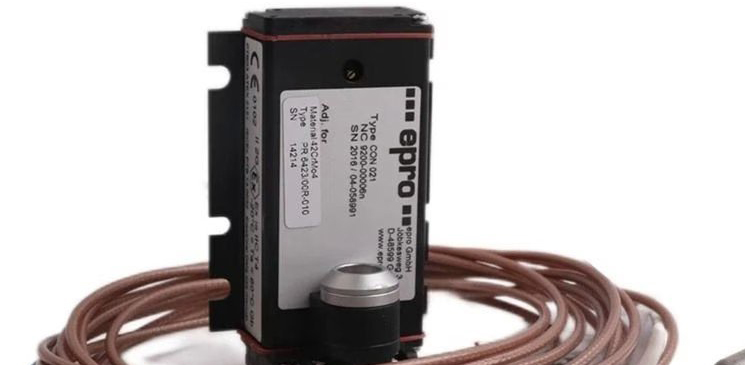

Epro PR6423/003-130 Eddy Current Displacement Sensor
Product Number: PR6423/003-130
Category: Eddy Current Displacement Sensor
Sensor Type: Non-contact eddy current displacement sensor
Probe Length: 0.3 meters (specified by -003)
Cable Length: 13.0 meters (specified by -130)
System Compatibility: CON0xx converters, MMS 3000/6000 monitors
Application: Shaft vibration, radial position, axial thrust measurement
Product Description
The EPRO PR6423/003-130 is an Eddy Current Displacement Sensor, ideal for precise measurement in critical turbomachinery. It monitors shaft vibration, displacement, and position in turbines, compressors, and pumps.
Technical Specifications
Measurement Principle: Eddy current-based, non-contact measurement.
Linear Measurement Range: ±2 mm (static).
Sensitivity: 8 V/mm (203.2 mV/mil).
Nominal Air Gap: 0.5 mm (20 mils).
Frequency Response: Up to 20,000 Hz.
Operating Temperature: -35°C to +180°C (-31°F to +356°F).
Material: Stainless steel housing with PEEK sensor tip.
Protection Class: IP66.
Certifications: ATEX, IECEx, CSA for hazardous areas.
Loading comments...
Epro PR6423/003-130 Eddy Current Displacement Sensor
Product Number: PR6423/003-130
Category: Eddy Current Displacement Sensor
Sensor Type: Non-contact eddy current displacement sensor
Probe Length: 0.3 meters (specified by -003)
Cable Length: 13.0 meters (specified by -130)
System Compatibility: CON0xx converters, MMS 3000/6000 monitors
Application: Shaft vibration, radial position, axial thrust measurement
Product Description
The EPRO PR6423/003-130 is an Eddy Current Displacement Sensor, ideal for precise measurement in critical turbomachinery. It monitors shaft vibration, displacement, and position in turbines, compressors, and pumps.
Technical Specifications
Measurement Principle: Eddy current-based, non-contact measurement.
Linear Measurement Range: ±2 mm (static).
Sensitivity: 8 V/mm (203.2 mV/mil).
Nominal Air Gap: 0.5 mm (20 mils).
Frequency Response: Up to 20,000 Hz.
Operating Temperature: -35°C to +180°C (-31°F to +356°F).
Material: Stainless steel housing with PEEK sensor tip.
Protection Class: IP66.
Certifications: ATEX, IECEx, CSA for hazardous areas.
