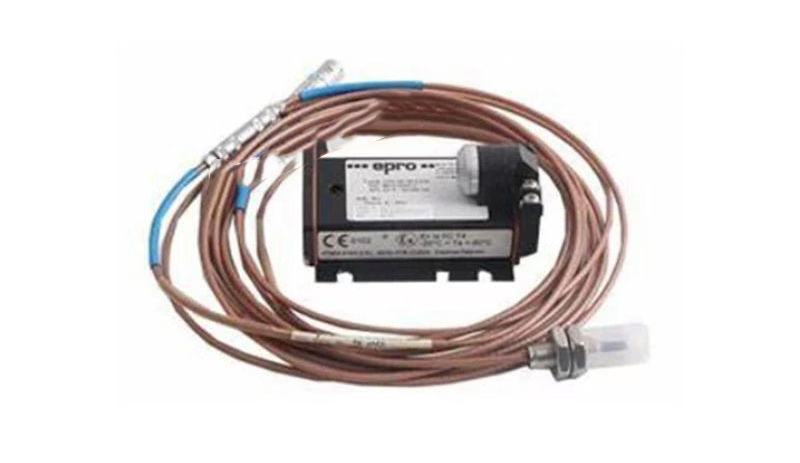

Epro CON021+PR6423/000-031 Vibration Sensor

The EPRO CON021 + PR6423/000-031 system offers precise, non-contact eddy current sensing. Engineers use it to measure shaft displacement, position, and vibration in rotating machinery like turbines, compressors, and pumps. Consequently, it plays a critical role in condition monitoring and machinery protection across power generation and heavy industry.

PR6423/000-031 Sensor Specifications

• Type: Eddy current proximity probe
• Measuring Range: 2.0 mm (standard)
• Linearity Error: ≤ 1.0%
• Operating Temperature: –35°C to +180°C
• Protection Class: IP65
• Mounting: Use a threaded or clamp method
• Cable: Choose between integrated or detachable options

CON021 Converter Specifications

• Function: Converts eddy current sensor signals
• Frequency Range: 0–20,000 Hz
• Rise Time: Less than 15 μs
• Output Voltage Range:

  –4V to –20V (with –23V to –32V supply)

  –2V to –18V (with –21V to –32V supply)

• Operating Temperature: –30°C to +100°C
• Housing Material: LMgSi 0.5 F22 alloy
• Weight: 120 g
• Mounting: Secure using four M5 screws
• Connections:
  • Sensor: Self-locking LEMO plug
  • Power/Output: Screw terminals
