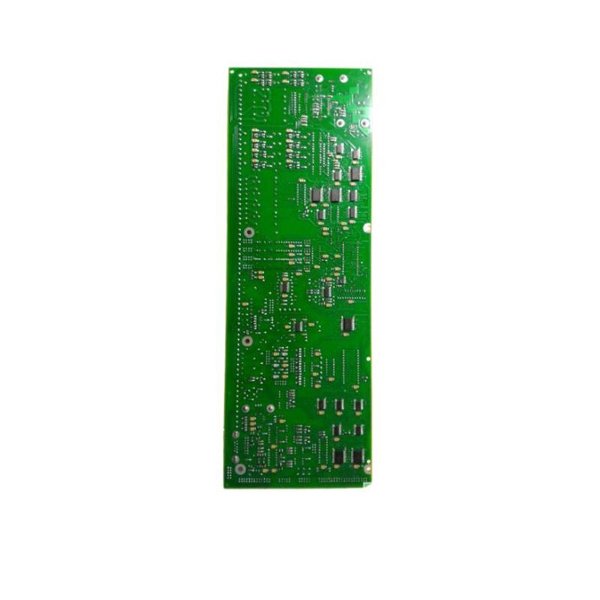

ABB YPQ 108A YT204001-DT I/O Board

The ABB YPQ 108A YT204001-DT I/O board is a high-performance input/output (I/O) module designed for use in industrial automation systems. It is a vital component in various applications, offering reliable and efficient data transfer between devices within control systems. The module provides versatile I/O capabilities, ensuring that it meets the demands of modern industrial control systems while maintaining accuracy and reliability in harsh environments.

Product Parameters

Product Applications

The ABB YPQ 108A YT204001-DT I/O board is widely used in applications requiring reliable and fast data exchange between control systems and field devices. It finds its place in industries such as:

• Process Control Systems: For monitoring and controlling industrial processes.

• Automation Systems: Integration in PLCs for seamless data acquisition and control.

• Energy Management: Used in systems to monitor energy consumption and control the distribution of electrical power.

• Machine Control: For controlling machinery inputs and outputs, ensuring smooth automation of processes.

Product Advantages

1. High Reliability: Designed for industrial environments, ensuring stable operation even in harsh conditions.

2. Compact Design: The small form factor (158 x 85 x 30 mm) allows for easy integration into space-constrained environments.

3. Wide Temperature Range: The board operates efficiently between -20°C to +60°C, making it suitable for a variety of industrial applications.

4. Efficient Communication: Supports both Modbus RTU and Profibus DP, enabling seamless integration into diverse systems.

5. Low Power Consumption: With a current draw of only 120 mA, the YPQ 108A is energy-efficient, reducing the operational cost in the long run.

6. Versatile I/O Options: Equipped with 8 digital inputs and 8 digital outputs, it allows for flexible control and monitoring across different systems.

Frequently Asked Questions (FAQ)

Q1: What is the power supply required for the ABB YPQ 108A YT204001-DT I/O board?

A1: The I/O board requires a 24 VDC power supply.

Q2: How many digital inputs and outputs does the module support?

A2: The module supports 8 digital inputs and 8 digital outputs.

Q3: Can the module be used in harsh industrial environments?

A3: Yes, the YPQ 108A is designed to operate in harsh industrial environments with an operating temperature range of -20°C to +60°C.

Q4: What is the communication protocol supported by this module?

A4: The YPQ 108A supports Modbus RTU and Profibus DP communication protocols.

Q5: How is the ABB YPQ 108A mounted?

A5: The module is designed to be mounted on a DIN rail, making installation easy and secure.

Q6: What is the weight of the YPQ 108A I/O board?

A6: The weight of the module is 0.42 kg.

Q7: What is the size of the ABB YPQ 108A module?

A7: The module has dimensions of 158 x 85 x 30 mm.

Q8: Is the YPQ 108A compatible with PLCs?

A8: Yes, it is fully compatible with PLCs, offering seamless integration into industrial control systems.

Q9: Can the module handle both input and output functions?

A9: Yes, the YPQ 108A provides both digital inputs and outputs, enabling it to function as an I/O interface for various applications.

Q10: Is there a limit to the number of devices that can be connected to the YPQ 108A?

A10: The number of devices depends on the communication protocol used. For Modbus RTU and Profibus DP, the limits are based on the configuration of the network.
