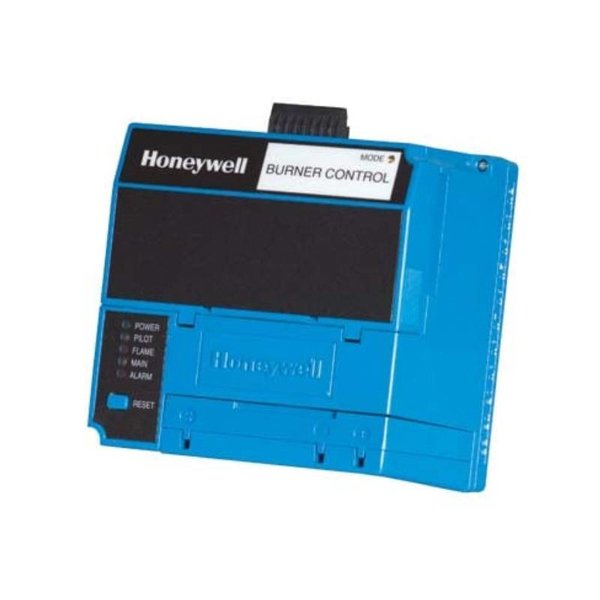

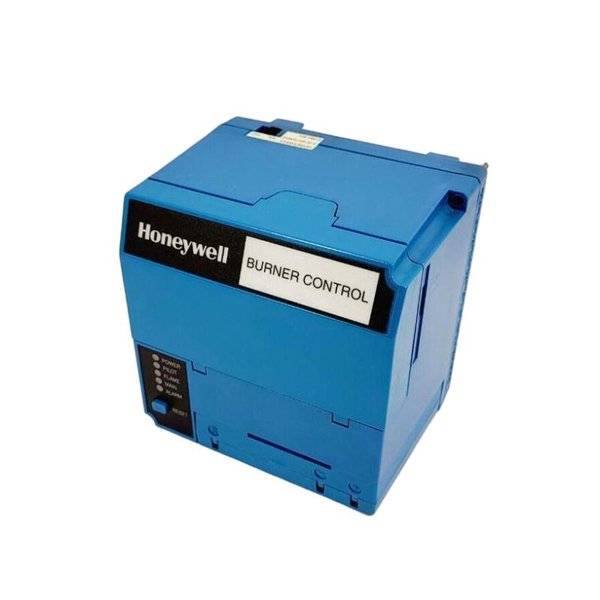

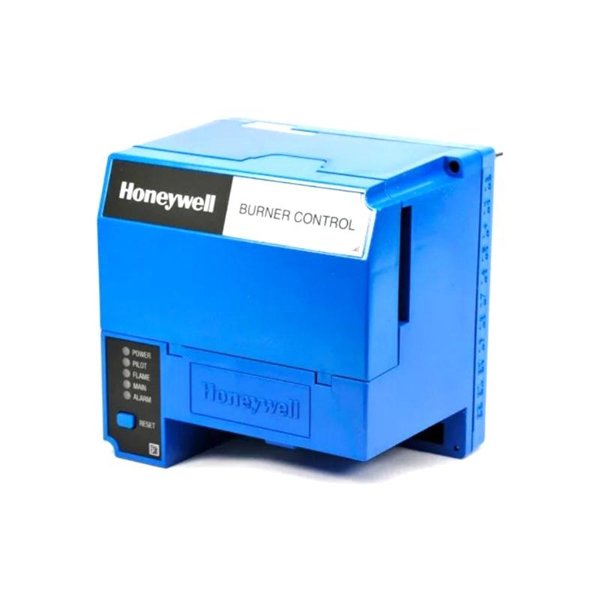

Honeywell RM7800E1010 Relay Module

The Honeywell RM7800E1010 is part of the RM7800 series of flame monitoring and combustion control systems. Designed to support industrial applications, it ensures safe and efficient operation in a wide range of combustion processes. These systems are ideal for burners, furnaces, and other industrial equipment that require reliable flame detection and control. The RM7800E1010 serves as a versatile solution, integrating easily with various combustion control systems to ensure stable performance, minimize risks, and increase operational efficiency.

Product Specifications

The following table summarizes the key specifications for the Honeywell RM7800E1010:

Product Applications

The Honeywell RM7800E1010 is specifically designed for applications requiring precise combustion control and flame monitoring. Key industries include:

• Oil & Gas: Ensuring safe operation of oil burners and other combustion equipment in offshore and onshore facilities.

• Power Generation: Provides essential flame detection for industrial burners, ensuring energy efficiency and safe combustion processes.

• Industrial Manufacturing: Used in large furnaces, kilns, and other high-temperature systems where combustion efficiency and safety are critical.

• Chemical Processing: Helps maintain optimal flame conditions in reactors and other chemical processing equipment.

Product Advantages

The Honeywell RM7800E1010 offers several notable advantages that contribute to its widespread adoption across industries:

1. Reliability: It provides consistent flame detection, reducing the likelihood of false trips and operational downtime.

2. Flexible Flame Detection: Compatible with both UV and IR flame detectors, allowing for adaptability in various environments.

3. Enhanced Safety: Built to meet stringent safety standards like UL, FM, and CE, ensuring safe operation in hazardous environments.

4. Versatility: Ideal for a variety of industrial applications, from simple burners to complex multi-burner systems.

5. Easy Integration: Seamlessly integrates with other Honeywell combustion control equipment, providing a robust solution for all combustion system needs.

6. Durability: Designed to operate in extreme conditions, including high temperatures and industrial environments.

FAQ(Frequently Asked Questions)

1. What is the primary function of the Honeywell RM7800E1010?

   • The Honeywell RM7800E1010 is used for flame monitoring and combustion control. It ensures safe operation by detecting the presence of a flame and regulating combustion processes in industrial equipment.

2. Can the RM7800E1010 be used with both UV and IR flame detectors?

   • Yes, the RM7800E1010 is compatible with both UV and IR flame detectors, making it versatile for various combustion environments.

3. What is the input voltage for the RM7800E1010?

   • The RM7800E1010 operates on 120/240 V AC ± 10%, 50/60 Hz input power.

4. Is the RM7800E1010 suitable for use in high-temperature environments?

   • Yes, the device is designed to operate in temperatures ranging from -40°C to 70°C (-40°F to 158°F), making it suitable for demanding industrial environments.

5. What industries use the Honeywell RM7800E1010?

   • The RM7800E1010 is widely used in industries such as oil and gas, power generation, industrial manufacturing, and chemical processing.

6. Does the RM7800E1010 comply with safety standards?

   • Yes, it complies with major safety standards including UL, CSA, FM, and CE, ensuring it meets global safety requirements.

7. Can the RM7800E1010 integrate with other Honeywell combustion control systems?

   • Yes, the RM7800E1010 is designed to integrate seamlessly with other Honeywell combustion control systems, providing a comprehensive solution for combustion management.

8. What type of flame signal output does the RM7800E1010 provide?

   • The RM7800E1010 provides a 4-20 mA analog flame signal output for easy integration with other control systems.

9. Is the RM7800E1010 suitable for use in offshore oil rigs?

   • Yes, its rugged design and compliance with safety standards make it ideal for offshore and onshore oil and gas facilities.

10. What are the key benefits of using the RM7800E1010?

• Key benefits include reliability, flexibility in flame detection, enhanced safety, and easy integration into existing combustion control systems.
