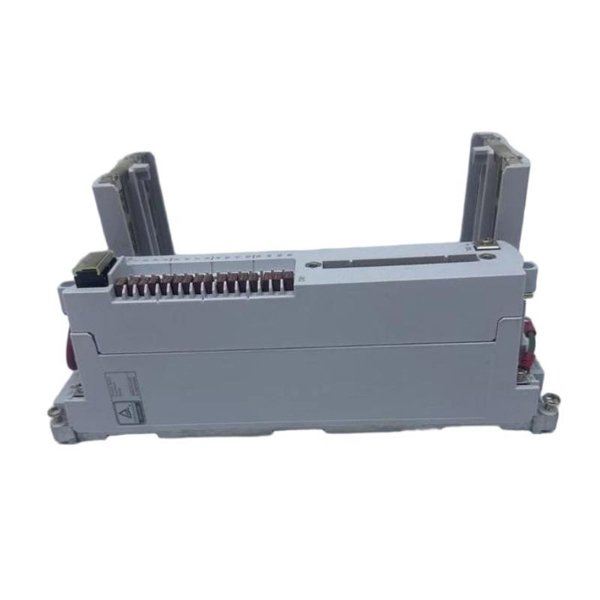

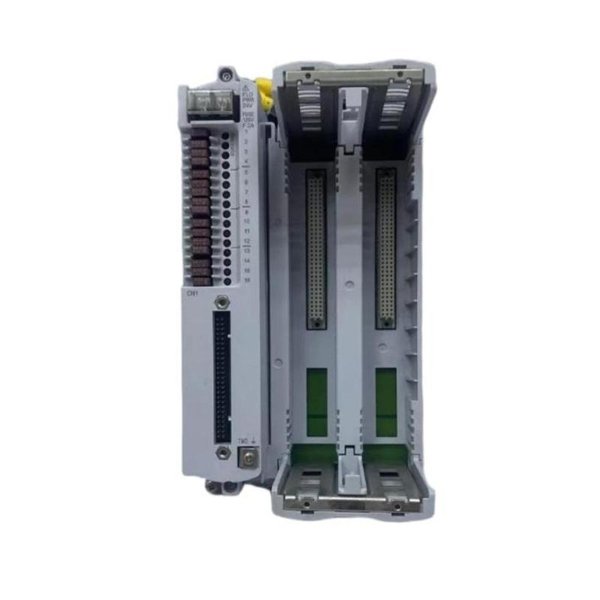

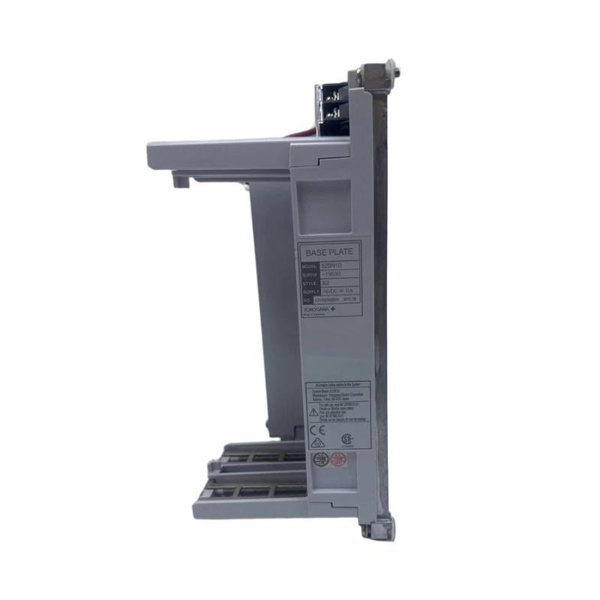

Yokogawa S2BN1D-19030 Terminal Base

The Yokogawa S2BN1D-19030 Terminal Base is a high-quality interface module designed for reliable connection of field wiring to Yokogawa control and automation systems. It ensures secure, organized, and durable connections between I/O modules and field devices, supporting efficient signal transmission and maintenance.

Key Features

• Provides secure and reliable wiring interface for I/O modules

• Supports easy installation and maintenance of field wiring

• Rugged construction suitable for industrial environments

• Compatible with multiple Yokogawa I/O modules and control systems

• Facilitates clear labeling and organization of wiring

• Reduces downtime with reliable terminal connections

Technical Specifications

Industry Applications

• Oil & Gas – field instrumentation connection

• Power Generation – turbine and generator monitoring

• Petrochemical & Chemical – process control signal wiring

• Water & Wastewater – pump and motor control

• Manufacturing – automation and process control

• Food & Beverage – process measurement and control

Advantages

• Ensures reliable electrical connection for I/O modules

• Simplifies installation and wiring management

• High durability for harsh industrial environments

• Supports organized labeling and maintenance

• Compatible with multiple Yokogawa control system configurations

• Reduces risk of signal loss and downtime

Frequently Asked Questions (FAQ)

Q1: What is the main function of this terminal base?

It provides a reliable connection platform between field wiring and Yokogawa I/O modules.

Q2: Which I/O modules are compatible with S2BN1D-19030?

It is compatible with Yokogawa S2 series I/O modules.

Q3: What is the maximum wire size it supports?

0.2 – 2.5 mm² (24–14 AWG).

Q4: How is it mounted?

DIN rail or panel mount.

Q5: What is the operating temperature range?

-20 °C to +70 °C.

Q6: Can it be used in hazardous industrial environments?

Yes, it is designed for standard industrial conditions; ensure compliance with local hazardous area regulations.

Q7: What are the dimensions and weight?

252 mm x 134 mm x 118.1 mm, approximately 1.4 kg.

Q8: Is labeling supported for wiring identification?

Yes, it allows organized labeling for field wiring management.

Q9: Does it comply with industry standards?

Yes, it meets CE, UL, CSA, and RoHS standards.

Q10: What industries commonly use this terminal base?

Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage industries.
