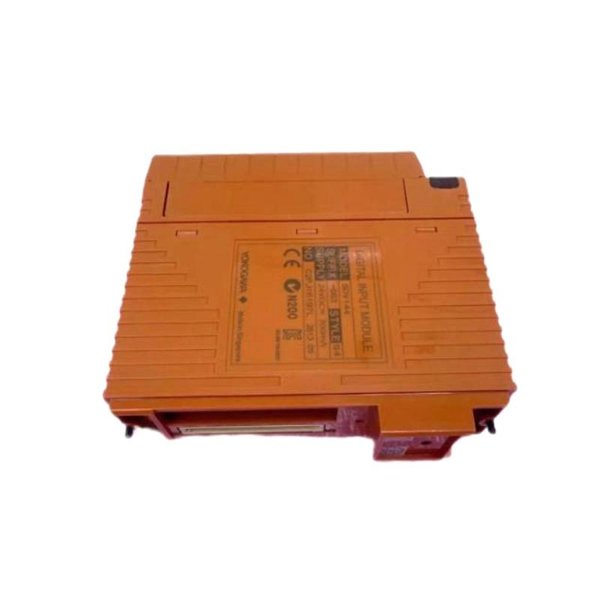

Yokogawa SAV144-S63 Analog Input Module
Manufacturer:Yokogawa
Product Number:SAV144-S63
Product Type:Analog Input Module
Origin:Japan
Dimensions:130 x 124x 32.8mm
Weight:0.29kg
Views:67
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa SAV144-S63 is a high-performance voltage input module designed for use in safety and control systems within the ProSafe-RS platform. With 16 isolated channels, the module supports input voltage ranges of 1–5 V or 1–10 V. It ensures robust and reliable voltage signal acquisition from field devices in mission-critical applications, with a focus on system safety, modularity, and diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | SAV144-S63 |
| Input Channels | 16 isolated channels |
| Rated Input Range | 1 to 5 V / 1 to 10 V |
| Permissible Input Range | ±30 V |
| Input Impedance (Power-ON) | 1 MΩ |
| Input Impedance (Power-OFF) | 100 kΩ |
| Rated Accuracy | ±4 mV (1–5 V), ±9 mV (1–10 V) |
| Temperature Drift | ±4 mV/10 °C (1–5 V), ±9 mV/10 °C (1–10 V) |
| Data Update Frequency | 40 ms |
| Withstand Voltage | 1.5 kV AC for 1 min (signal/system isolation) |
| Maximum Current Consumption | 5 V system: 300 mA; 24 V system: 140 mA |
| External Connections | Pressure clamp, MIL cable, or KS1 signal cable |
| Dimensions (W x H x D) | 130 x 124 x 32.8 mm |
| Weight | Approx. 0.29 kg |
Applications
-
Process automation in chemical and petrochemical industries
-
Safety instrumentation in oil & gas refineries
-
Voltage signal monitoring in power plants
-
Factory automation requiring isolated voltage inputs
-
Critical infrastructure and utility control systems
Key Advantages
-
High input isolation improves operational safety
-
Dual-range voltage input supports broader signal compatibility
-
Compact form factor ideal for dense installations
-
Excellent accuracy and low drift over temperature
-
Supports redundant configurations for enhanced reliability
-
Robust build quality and Yokogawa’s proven safety architecture
Frequently Asked Questions (FAQ)
Q1: What type of signals does the SAV144-S63 support?
A1: It supports both 1–5 V and 1–10 V DC voltage signals.
Q2: Can the SAV144-S63 be used in redundant configurations?
A2: Yes, the module can be configured for dual redundancy for increased reliability.
Q3: How many channels does the module have?
A3: It provides 16 isolated input channels.
Q4: What is the rated accuracy for each voltage range?
A4: ±4 mV for 1–5 V range, and ±9 mV for 1–10 V range.
Q5: What’s the data update rate of the module?
A5: The data update frequency is 40 milliseconds.
Q6: Is the SAV144-S63 suitable for hazardous environments?
A6: Yes, explosion-proof versions are available via specific suffix codes.
Q7: What external connections are compatible with this module?
A7: Pressure clamp terminals, MIL cables, and dedicated signal cables (KS1) are supported.
Q8: Does the module provide signal isolation?
A8: Yes, the input channels are isolated from the system to 1.5 kV AC.
Q9: Is it compatible with Yokogawa’s ProSafe-RS platform?
A9: Yes, the SAV144-S63 is specifically designed for ProSafe-RS systems.
Q10: What is the weight of the module?
A10: Approximately 0.29 kg when using the signal cable interface adapter.
