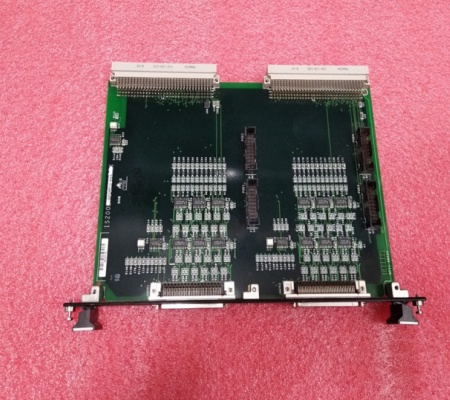

General Electric IS200BICIH1ADB Bridge Interface Controller Board

The IS200BICIH1ADB unit is an interface card originally designed and manufactured by GE Industrial Systems for their Innovation Series, the IS200BICIH1ADB interface card is designed to be mounted in the Innovation Series board frame. This particular model has a drawing revision value of "B", a backward compatible feature revision level of "D", and a non-backward compatible feature revision level of "A".

The IS200BICIH1ADB Bridge Interface Controller Board (BICI) is a bridge controller board using an integrated gate AC thyristor (IGCT) switch device. This bridge interface controller board operates within the Innovation Series board frame. It interfaces with the CABP control assembly backplane via the P1 and P2 backplane connectors. The board has 19 auxiliary boards soldered to the surface, including the AOCA analog comparator module and the DVAA dual voltage controlled oscillator module.

The BICI board does not provide power to any other board or assembly. Gating and status feedback signals from the IS200BPII Bridge Power Interface Board (BPII) are conditioned and sent to the BICI board through the P1 and P2 backplane connectors.

The GE IGBT P3 Buffer Board DS200IPCDG1ABB has a 4-pin connector and screws for adjusting the Insulated Bipolar Transistor (IGBT). The screws can be adjusted by turning them with a screwdriver.

The GE IGBT P3 Buffer Board DS200IPCDG2A has a 4-pin connector and screws for adjusting the Insulated Bipolar Transistor (IGBT). Before removing the old board, note the location of the board and plan to install the replacement board in the same location. Also, note the cable that the 4-pin connector is connected to and plan to connect the same cable to the new board to ensure that you get the same functionality.

When disconnecting the cable, make sure to grab the cable from the connector at the end of the cable. If you pull the cable out by holding the cable portion, you may damage the connection between the wires and the connector. Use one hand to hold the board in place and relieve pressure on the board while you pull the cable out with the other hand.

Frequently asked questions about the product are as follows:

What is the -IS200BICIH1ADB?

The GE IS200BICIH1ADB is part of the General Electric (GE) Mark VI control system, commonly used in industrial automation and power generation applications. This particular model Bridge Interface Controller Board (BICI) plays a vital role in the communication between various subsystems within the control system, especially in turbine and generator control systems.

What are the key features of the -IS200BICIH1ADB?

The BICI is an integral part of timely and accurate communication between control and monitoring devices in the system.

As part of the GE **Mark VIe** system, it is built for high reliability in demanding industrial environments. It helps manage large amounts of data from multiple sources and deliver it to the appropriate control system.

What features and artwork revisions does the -IS200BICIH1ADB model have?

This innovative series of bridge interfaces has three separate revision types, all of which can be explained by the product's long part number. This particular GE Industrial System part comes with B artwork revision, Functional Revision 1 rated "D", and Functional Revision 2 revision A.
