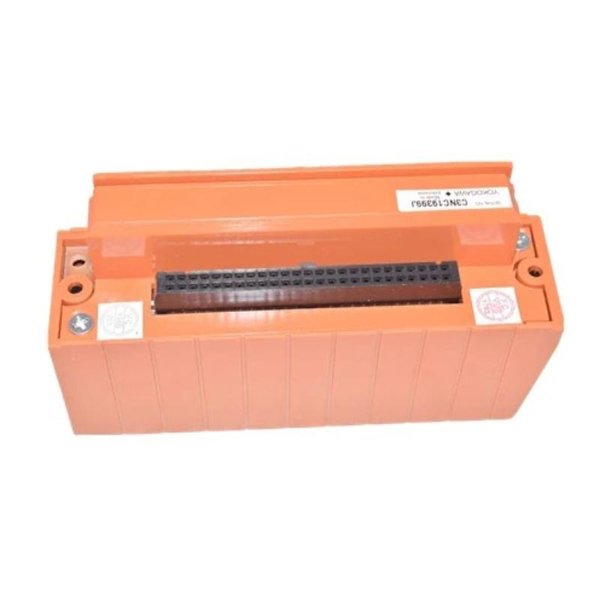

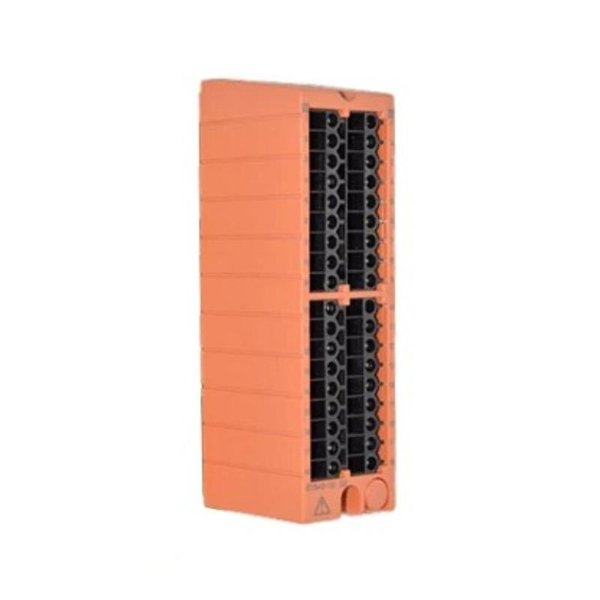

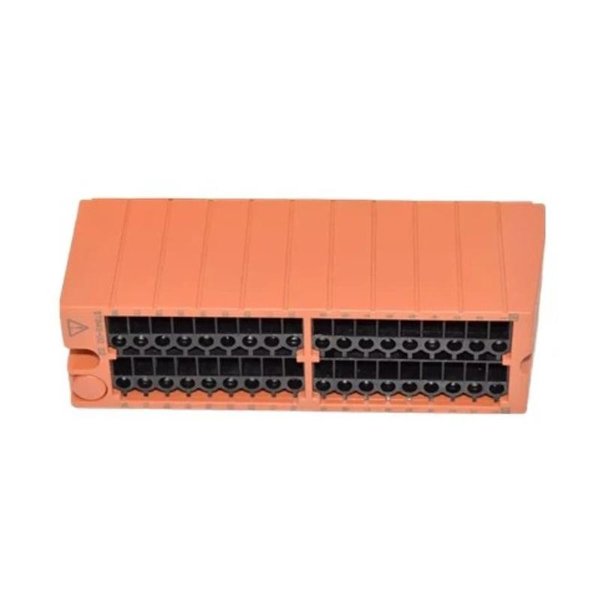

Yokogawa STB4S-00 Terminal Blocks

The Yokogawa STB4S-00 Terminal Blocks provide a reliable interface for connecting field wiring to Yokogawa automation and control systems. Designed for industrial environments, these terminal blocks facilitate organized, safe, and durable connections for I/O modules and field devices.Engineered for ease of installation and maintenance, the STB4S-00 ensures stable signal transmission and supports efficient system management in process control applications.

Key Features

• Provides secure connections for I/O modules and field wiring

• Supports DIN rail or panel mounting for flexible installation

• Robust construction for industrial environments

• Simplifies wiring management and identification

• Compatible with multiple Yokogawa I/O modules

• Reduces downtime with reliable terminal connections

Technical Specifications

Industry Applications

• Oil & Gas – field device wiring and automation

• Power Generation – turbine and generator monitoring

• Petrochemical & Chemical – process control systems

• Water & Wastewater – pump and valve automation

• Manufacturing – process and machinery control

• Food & Beverage – industrial automation systems

Advantages

• Ensures reliable electrical connections for field devices

• Simplifies installation and wiring organization

• Durable construction suitable for harsh industrial conditions

• Supports clear labeling for field wiring identification

• Reduces signal loss and system downtime

• Compatible with a wide range of Yokogawa control systems

Frequently Asked Questions (FAQ)

Q1: What is the main function of the STB4S-00?

It provides a reliable interface between field wiring and Yokogawa I/O modules.

Q2: Which modules are compatible with this terminal block?

It is compatible with Yokogawa S series I/O modules.

Q3: What wire sizes can it accommodate?

0.2 – 2.5 mm² (24–14 AWG).

Q4: How is it mounted?

DIN rail or panel mount.

Q5: What is the operating temperature range?

-20 °C to +70 °C.

Q6: Can it be used in harsh industrial environments?

Yes, it is designed for standard industrial conditions.

Q7: What are its dimensions and weight?

120 mm × 50 mm × 45 mm, approximately 0.3 kg.

Q8: Does it support labeling for wiring identification?

Yes, it allows organized labeling for field wiring management.

Q9: Does it comply with industry standards?

Yes, it meets CE, UL, CSA, and RoHS standards.

Q10: Which industries commonly use this terminal block?

Oil & Gas, Power Generation, Petrochemical, Water & Wastewater, Manufacturing, and Food & Beverage.
