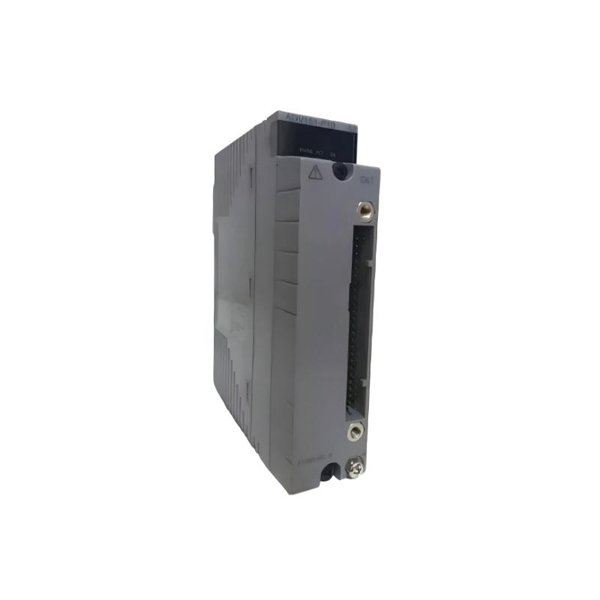

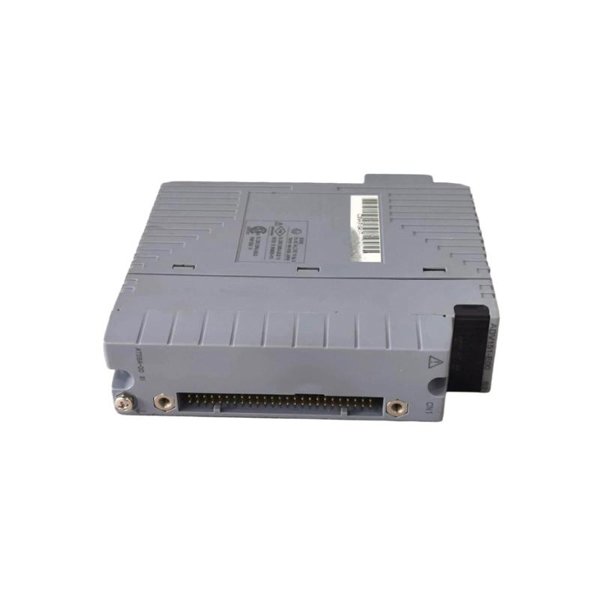

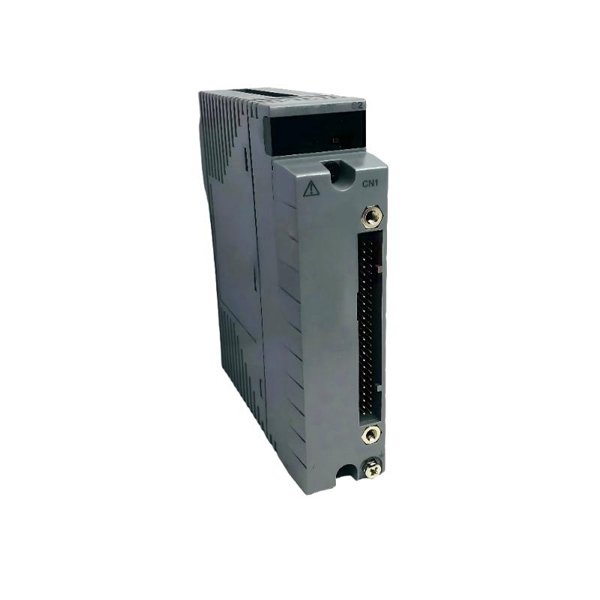

Yokogawa ADV151-E50/D5A00 Digital Input Module

The Yokogawa ADV151-E50/D5A00 is a high-performance digital input module designed for industrial automation and control systems. It is a key component in the Yokogawa Centum VP and ProSafe-RS systems, ensuring seamless communication and control in environments that require precise monitoring and data acquisition. The ADV151-E50/D5A00 module supports digital signals and provides fast, reliable input processing for various industrial applications.

With a compact form factor of 107.5 × 130 × 32.8 mm and a lightweight design of just 0.3 kg, this module can be easily integrated into existing systems, providing flexibility in system configuration. It offers high reliability and robust performance, making it ideal for use in factory automation, process control, and safety systems. The module supports a wide range of input types, including discrete signals from sensors, switches, and other field devices.

The Yokogawa ADV151-E50/D5A00 is designed to meet the stringent requirements of modern industrial systems, ensuring accurate and real-time data collection. Its advanced signal processing capabilities ensure that the system receives the necessary data quickly, enabling optimal control and efficient operation.

Product Parameters

Product Applications

The Yokogawa ADV151-E50/D5A00 digital input module is designed for a variety of industrial applications where high-speed and reliable data acquisition is critical. Some of the key areas of application include:

• Factory Automation: The module collects digital signals from devices such as limit switches, proximity sensors, and emergency stop switches in automated production lines.

• Process Control: In chemical plants, oil refineries, and power stations, the module facilitates real-time data collection from sensors that monitor equipment status and operation.

• Safety Systems: The module is used in safety-critical systems where it is essential to capture digital input signals from safety devices like emergency shutdown switches or fire alarms.

• Machine Monitoring: The module is employed in monitoring the health of machinery and industrial equipment by collecting digital inputs such as machine on/off status or alarm conditions.

• Building Automation: It is also utilized in HVAC systems and other building management systems to collect input from motion sensors, door open/close switches, and lighting control switches.

Its compact size and compatibility with DIN rail mounting allow for easy integration into existing control panels and automation systems, making it an ideal choice for a wide range of industries.

Product Advantages

The Yokogawa ADV151-E50/D5A00 digital input module offers several advantages that make it a preferred choice in industrial applications:

• Compact Design: With dimensions of 107.5 × 130 × 32.8 mm and a weight of 0.3 kg, the module fits into tight spaces and can be easily mounted on a DIN rail for quick installation.

• Wide Input Range: It supports a variety of digital input signals, making it compatible with different types of field devices such as switches, sensors, and actuators.

• Fast Signal Processing: The module ensures rapid signal processing with minimal delay, which is crucial for real-time data collection and decision-making in automated systems.

• Reliable Performance: Designed for industrial environments, it offers high reliability even under harsh conditions such as extreme temperatures (from -20°C to +60°C) and vibration.

• Seamless Integration: The module can be easily integrated into existing systems, and its compatibility with Yokogawa Centum VP and ProSafe-RS ensures smooth communication with other devices in the system.

• Safety Compliance: With certifications such as CE and UL, the module meets the rigorous safety standards required for industrial applications.

• Versatile Applications: It is widely used in factory automation, process control, machine monitoring, and safety systems, offering flexibility across different industries.

FAQ

1. What is the primary function of the Yokogawa ADV151-E50/D5A00 module?

   • It is a digital input module used to collect discrete signals from field devices like sensors, switches, and proximity sensors in industrial systems.

2. What are the dimensions of the ADV151-E50/D5A00?

   • The module measures 107.5 × 130 × 32.8 mm.

3. How much does the module weigh?

   • The module weighs 0.3 kg.

4. What input signals does the module support?

   • It supports digital input signals from devices such as limit switches, emergency stop switches, and proximity sensors.

5. What is the operating temperature range of the module?

   • The module operates in temperatures from -20°C to +60°C.

6. Is the Yokogawa ADV151-E50/D5A00 module easy to install?

   • Yes, the module is DIN rail mounted, making installation simple and efficient in control panels.

7. Can the module be used in process control applications?

   • Yes, it is widely used in process control systems to collect data from sensors monitoring equipment and processes.

8. What safety certifications does the module have?

   • The ADV151-E50/D5A00 module is certified CE and UL, ensuring compliance with industry safety standards.

9. How fast is the signal processing on this module?

   • The module is designed for fast signal processing, ensuring minimal delay for real-time data acquisition.

10. What are the main advantages of using this module?

    • It offers compact size, fast signal processing, reliable performance, and wide application versatility in automation, process control, and safety systems.
