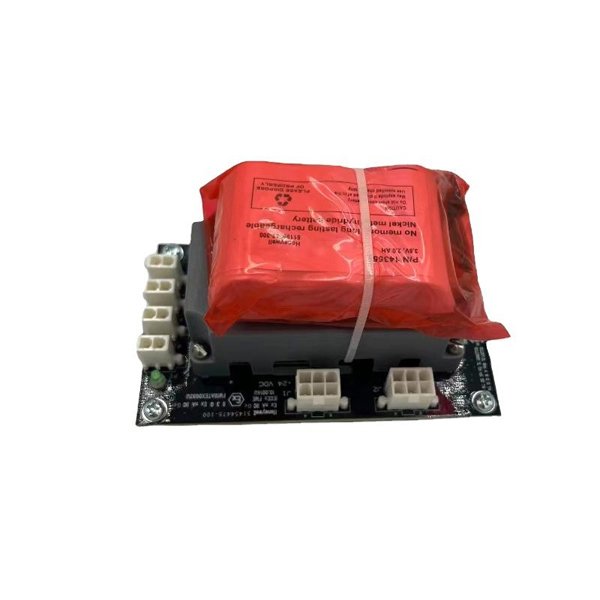

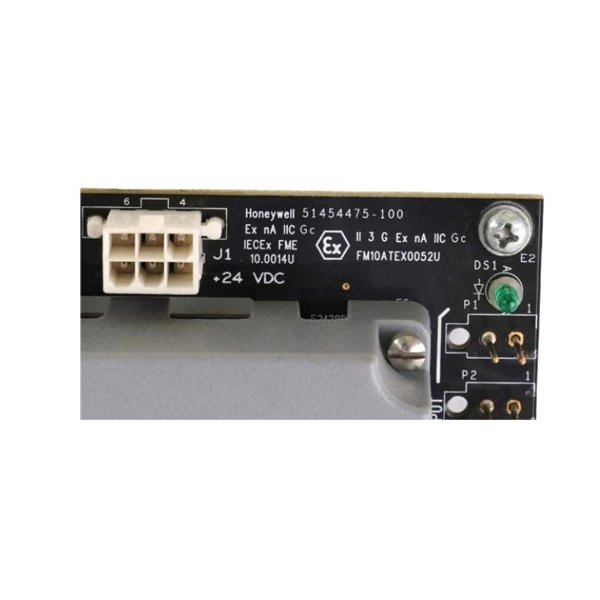

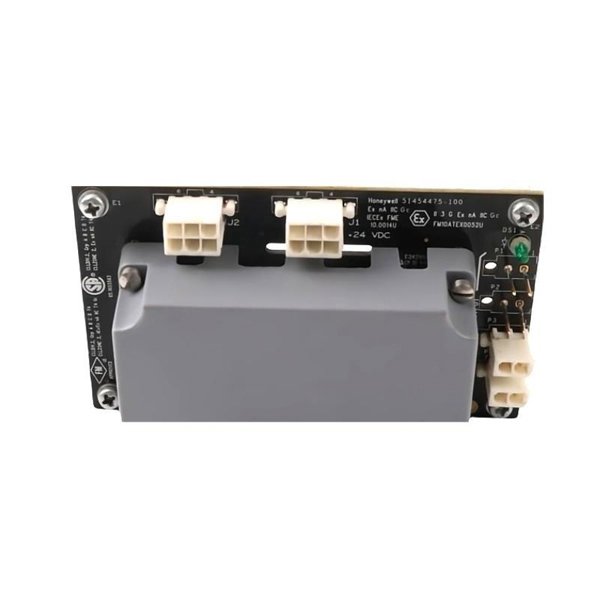

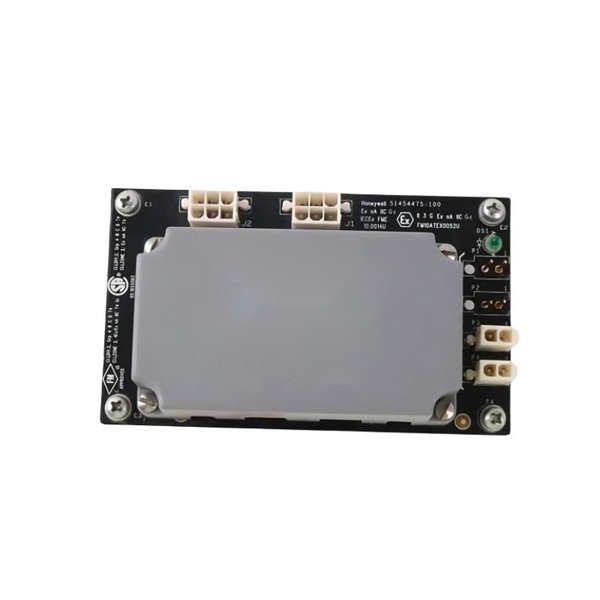

Honeywell 51454475-100 Series 8 C300 RAM Charger Module

The Honeywell 51454475-100 Series 8 C300 RAM Charger Module is a vital component designed to ensure the integrity and continuity of data within Honeywell’s C300 controller systems. This module provides a reliable power backup to the controller’s RAM, safeguarding critical process data during power interruptions. Its robust design and compatibility with Honeywell’s Series 8 architecture make it an essential asset in industrial automation environments where data preservation is paramount.

Technical Specifications

Product Applications

The 51454475-100 RAM Charger Module is engineered for a wide range of industrial applications requiring reliable memory backup:

• Process Automation: Ensuring data integrity in continuous process industries such as oil and gas, chemical, and pharmaceuticals.

• Manufacturing Control: Preserving critical control data in manufacturing systems to prevent downtime and maintain product quality.

• Power Generation: Maintaining essential data in power plants to ensure uninterrupted operations.

• Water Treatment Facilities: Safeguarding control data in water and wastewater treatment plants for consistent service delivery.

• Transportation Systems: Supporting data retention in transportation control systems to enhance safety and reliability.

Product Advantages

• Reliable Data Preservation: Provides continuous power to the controller’s RAM, preventing data loss during power outages.

• Robust Design: Built to withstand harsh industrial environments with a wide operating temperature range.

• Compact Form Factor: Space-saving design allows for easy integration into existing control panels.

• Easy Installation: DIN rail mountable for straightforward installation and maintenance.

• Certified Compliance: Meets international standards for safety and performance, including CE, UL508, and CSA certifications.

• Extended Warranty: Comes with a 12-month warranty, ensuring peace of mind and support.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 51454475-100 RAM Charger Module?

   • It provides backup power to the RAM of Honeywell C300 controllers, preserving critical data during power interruptions.

2. Is this module compatible with all Honeywell controllers?

   • It is specifically designed for Honeywell Series 8 C300 controllers.

3. What is the input voltage requirement for this module?

   • The module operates on a 24 VDC input voltage.

4. What is the battery capacity of the module?

   • It has a battery capacity of 7.2 Ah.

5. Can the module operate in extreme temperatures?

   • Yes, it functions within a temperature range of -40°C to +70°C.

6. How is the module mounted within a control system?

   • It is designed for DIN rail mounting, facilitating easy installation.

7. What certifications does the module have?

   • The module is certified under CE, UL508, and CSA standards.

8. What are the dimensions and weight of the module?

   • Dimensions: 220 x 120 mm; Weight: 0.4 kg.

9. Does the module support redundant power supplies?

   • Yes, it supports redundant power configurations for enhanced reliability.

10. What is the warranty period for the module?

    • It comes with a 12-month warranty from the date of purchase.
