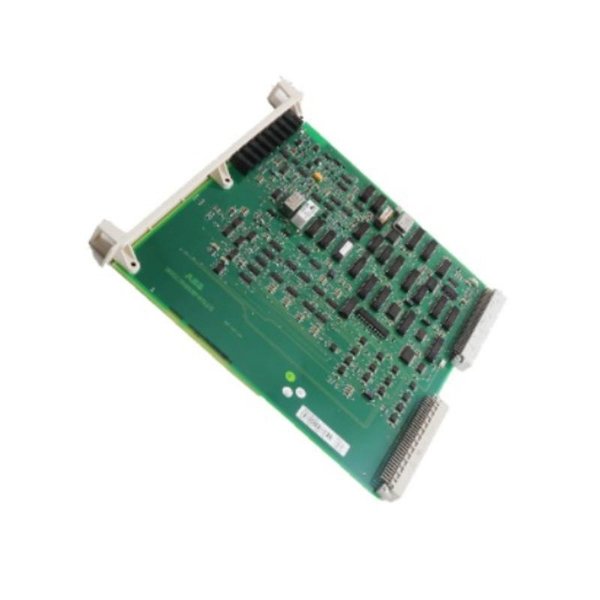

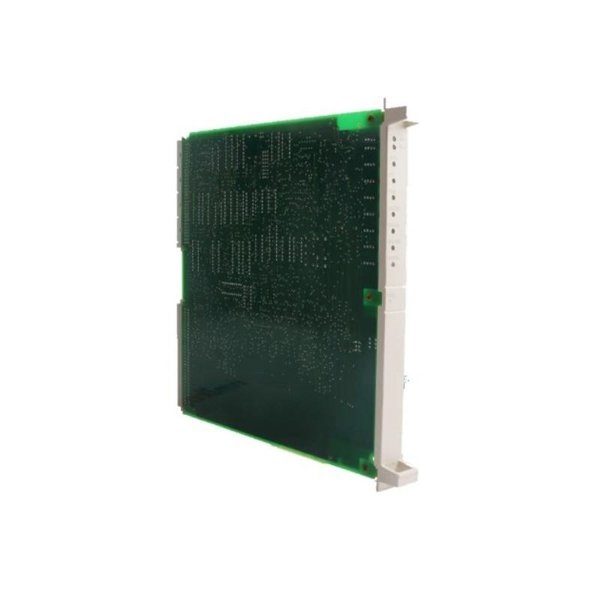

ABB XVC768102 3BHB007211R102 Current Measuring Instrument

The ABB XVC768102 (3BHB007211R102) is a high-precision current measuring instrument used in ABB drive systems and power electronics applications. Designed for demanding industrial environments, it delivers real-time current feedback essential for control, diagnostics, and protection within complex automation or motor control systems. It supports efficient and safe operation in high-power modules by offering reliable current sensing and signal processing.

This model is part of ABB’s trusted XVC range and is widely integrated into power converters, inverters, and advanced control platforms in process and manufacturing industries.

Key Features

• High-accuracy current measurement for control feedback and diagnostics

• Optimized for ABB drives and automation platforms

• Industrial-grade design for electromagnetic compatibility and durability

• Fast response time supporting closed-loop systems

• Supports analog signal output for integration with control units

• DIN rail or panel mountable

• CE and RoHS compliant for global use

Technical Specifications

Industry Applications

• Industrial Drive Systems – Feedback for torque, speed, and current regulation

• Power Converters & Inverters – Real-time current sensing

• Energy Monitoring Systems – Load profiling and energy management

• Manufacturing Automation – Integrated into robots and process equipment

• Process Industries – Ensures stable current in chemical, pulp, and oil sectors

• Renewable Energy – Used in wind, solar, and storage inverter systems

Advantages

• Precise Control Feedback – Enhances accuracy in dynamic control processes

• Integrated Diagnostics – Helps detect overload, imbalance, or short circuits

• Easy Integration – Plug-and-play compatibility with ABB systems

• Compact and Lightweight – Saves panel space in dense automation cabinets

• Reliable in Harsh Conditions – Withstands temperature extremes and EMI

• Reduced Downtime – Supports predictive maintenance and fault localization

Frequently Asked Questions (FAQ)

1. What does the XVC768102 measure?

   It measures AC or DC current within control and drive systems.

2. Is it compatible with ABB drives?

   Yes, it is designed specifically for integration with ABB’s drive and automation platforms.

3. What is the measurement output?

   Typically an analog signal—voltage or current depending on system configuration.

4. Can it be DIN rail mounted?

   Yes, it supports DIN rail and panel mounting.

5. Does it provide fault diagnostics?

   Yes, it includes diagnostic features when used with compatible controllers.

6. What environments is it suitable for?

   Industrial settings from -10°C to +55°C, IP20 rated.

7. Is it CE certified?

   Yes, it meets CE and RoHS compliance standards.

8. What is the typical weight of the module?

   Approximately 350 grams.

9. What is the response time like?

   Fast enough to support real-time control loops.

10. Can it be used in renewable energy systems?

    Yes, particularly for current sensing in solar and wind inverter systems.
