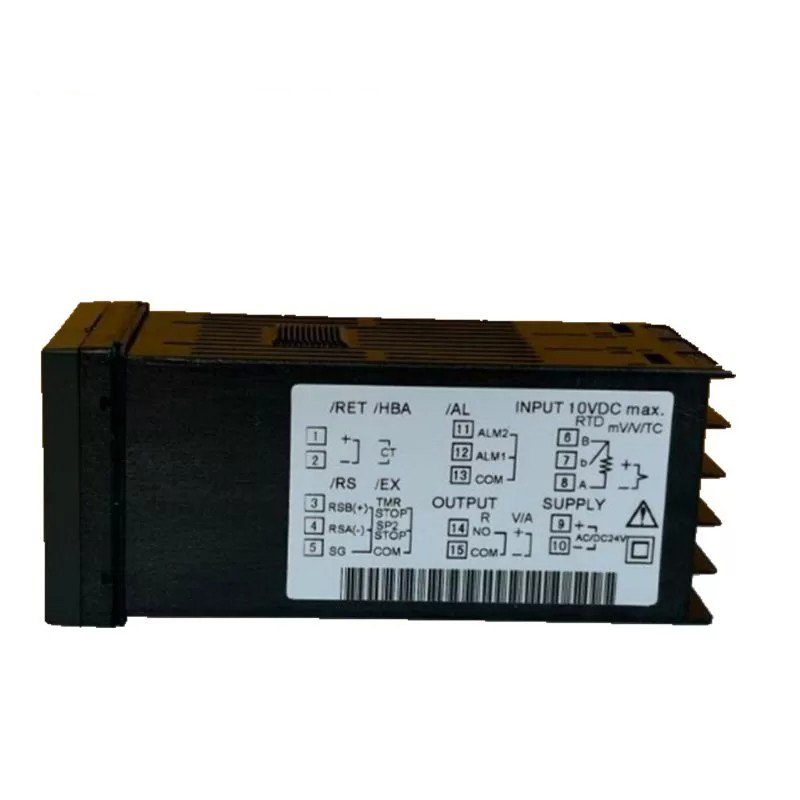

Yokogawa UT150-AN/V24 Temperature Controller

The YOKOGAWA UT150-AN/V24 series features compact, multifunctional 1/16 DIN temperature controllers. They offer universal input, self-tuning, and SUPER overshoot suppression as standard features. Optional functions include retransmission, timer, and communication capabilities.

Key Features of the UT150-AN/V24

• Universal Input: Supports thermocouples (TCs), RTDs, voltage, and current signals.
• Self-Tuning Function: Automatically adjusts to process characteristics for optimal control.
• SUPER Overshoot Suppression: Minimizes overshoot and stabilizes temperature control.
• Optional Retransmission: Allows the controller output to be retransmitted to a recorder or other device.
• Optional Timer Function: Enables time-based control strategies.
• Optional RS-485 Communication: Connects the controller to a PLC or other control system.

Technical Specifications of the UT150-AN/V24

• Input Range:
  • TC: -200 to 2000°C
  • RTD: -200 to 600°C
  • Voltage: 0 to 10V
  • Current: 4 to 20mA
• Output Range: 0 to 100%, relay output (1A max.).
• Control Accuracy: ±0.5% of full scale.
• Power Supply: 100 to 240VAC, 50/60Hz.
• Operating Temperature Range: 0 to 50°C.
• Dimensions: 48 x 48 x 96 mm (1.89 x 1.89 x 3.78 in.).

Applications of the UT150-AN/V24

• Plastic molding machines
• Food and beverage processing
• Metal heat treatment
• Pharmaceutical manufacturing
• Laboratory equipment
