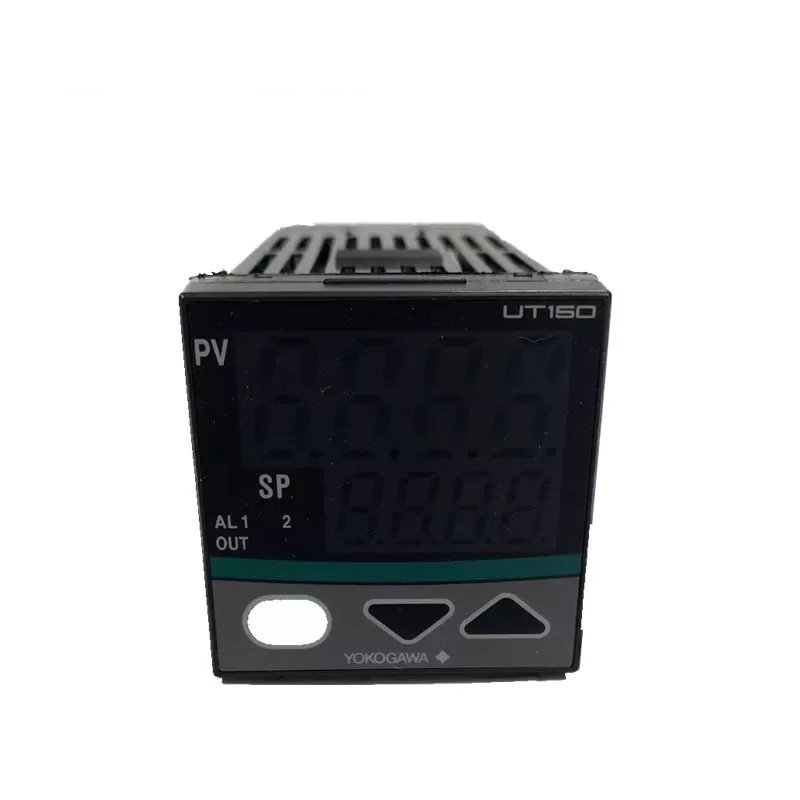

Yokogawa UT150-VN/AL/RS/Z Temperature Controller

The YOKOGAWA UT150-VN/AL/RS/Z is a compact, multi-function, general-purpose temperature controller. It belongs to the UT100 Series controllers, primarily designed for temperature control. This specific model offers RS485 communication functionality, making it highly versatile.

The UT150-VN/AL/RS/Z features a 4-digit LED display and a 1/16 DIN compact size, suitable for space-saving applications. It accepts universal input capabilities, including thermocouple, RTD, and DC mV/V signals. The controller provides various selectable functions:

• Heating/cooling control
• Retransmission output
• Timer function
• Heater burnout detection
• Two alarm relay outputs

This controller operates with a universal power supply (100 to 240 VAC) and offers an optional 24 VDC power supply.

Key Features

• 1/16 DIN compact size ensures space-saving installation.
• Universal input: Accepts thermocouple, RTD, and DC mV/V signals.
• Heating/cooling control for precise temperature regulation.
• Retransmission output allows signal forwarding.
• Timer function provides additional control capabilities.
• Heater burnout detection and two alarm relay outputs enhance safety.
• Universal power supply (100 to 240 VAC) and optional 24 VDC power supply.
• RS485 communication enables easy integration into control systems.

Applications

The UT150-VN/AL/RS/Z suits various temperature control applications, including:

• Industrial ovens
• Furnaces
• Plastic molding machines
• Food processing equipment
• Environmental chambers
• Laboratory equipment

Specifications

• Dimensions: 48 x 48 x 100 mm
• Input: Thermocouple, RTD, DC mV/V
• Control output: Heating/cooling
• Output type: Relay, SSR
• Communication: RS485
• Power supply: 100 to 240 VAC, optional 24 VDC
• Accuracy: ±0.1% of full scale
