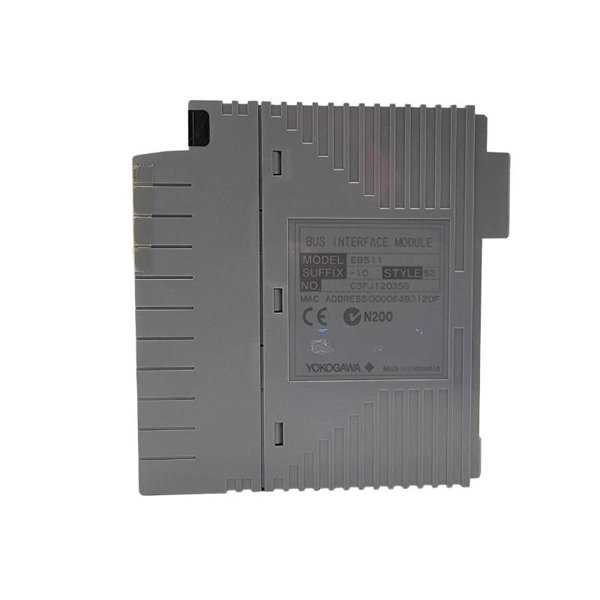

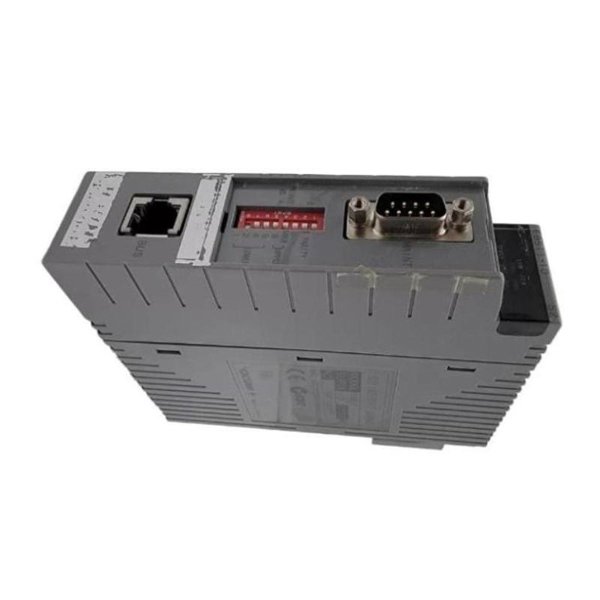

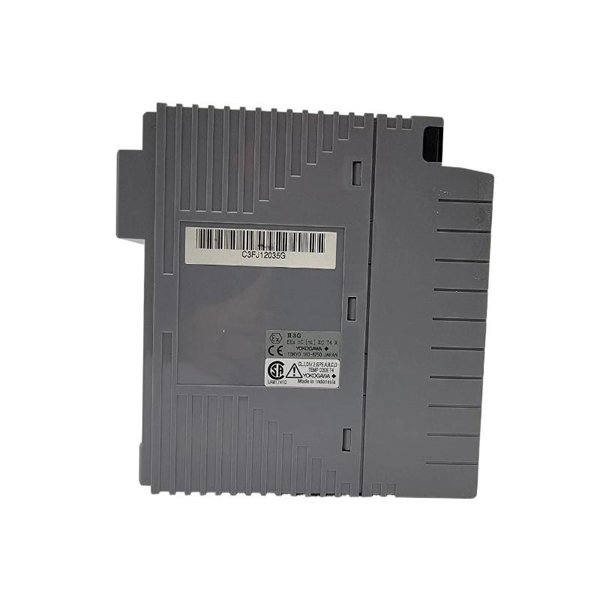

Yokogawa EB511-10 Bus Interface Module
Manufacturer:Yokogawa
Product Number:EB511-10
Product Type:Bus Interface Module
Origin:Japan
Dimensions:25 × 127 × 127 mm
Weight:0.3kg
Views:63
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Yokogawa EB511‑10 S2 Bus Interface Module serves as an interface between Yokogawa CENTUM VP / CS or EXA distributed control system (DCS) and field devices connected via ER Bus. It provides real-time communication through ER Bus protocols, enabling the DCS to receive data from sensors and control commands to actuators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | EB511‑10 S2 |
| Module Type | ER Bus Interface Module |
| Function | Interface between ER Bus field devices & DCS |
| Physical Interface | BNC connector |
| Communication Speed | 10 Mbps |
| Transmission Distance | Up to 185 meters per segment |
| Current Consumption | Approx. 0.7 A |
| Power Supply | 24 V DC nominal |
| Operating Temperature | (not specified) |
| Weight | 0.3 kg |
| Dimensions | 25 × 127 × 127 mm |
| Mounting | Installed in odd‑numbered slot of ANB10 or AFF50 FCU |
| Certifications | Industrial-grade performance |
Industry Applications
-
Integration of ER Bus field devices into Yokogawa CENTUM VP / CS or EXA systems
-
Real-time data exchange between sensors/actuators and central DCS controllers
-
Distributed control in process industries such as petrochemical, power generation, and water treatment
-
Extension of DCS to remote or field instrumentation via ER Bus networks
Key Advantages
-
High‑speed communication at 10 Mbps ensures timely data access
-
Long communication range of up to 185 meters supports extended field setups
-
Compact and lightweight design (≈ 0.3 kg) simplifies installation
-
Robust industrial construction suitable for harsh environments
-
Easy integration within Yokogawa system architecture via standard FCU slots
Frequently Asked Questions (FAQ)
-
What is the main function of the EB511‑10 module?
Acts as an ER Bus interface module bridging field devices to Yokogawa DCS.
-
What communication speed does it support?
Operates at 10 Mbps.
-
What is the maximum cable length supported?
Up to 185 meters per ER Bus segment.
-
How is it connected to the system?
Uses a BNC connector for ER Bus signal interface.
-
Where is the module installed?
Installed in odd-numbered slots of ANB10 or AFF50 Field Control Units.
-
How much current does it draw?
Approximately 0.7 A under nominal operation.
-
What are the dimensions of the module?
Approximately 25 mm (H) × 127 mm (W) × 127 mm (D).
-
What is the weight?
Approximately 0.3 kg.
-
Which systems is the EB511‑10 compatible with?
CENTUM VP, CENTUM CS, and EXA DCS systems.
-
What is the module’s environmental suitability?
Designed for industrial control environments with robust reliability.
