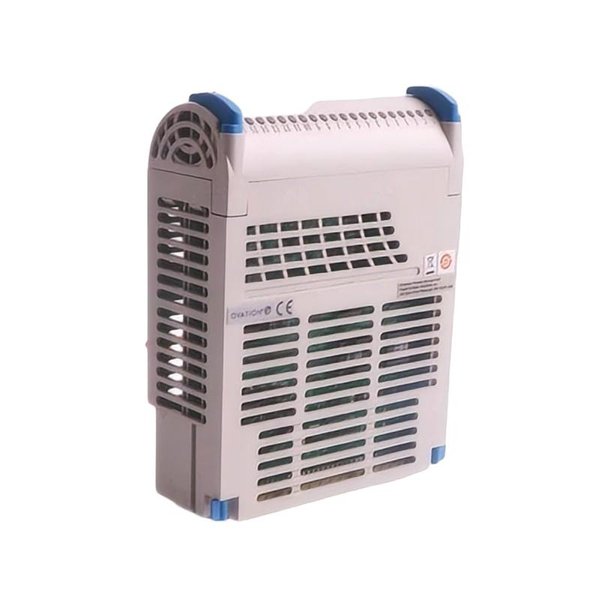

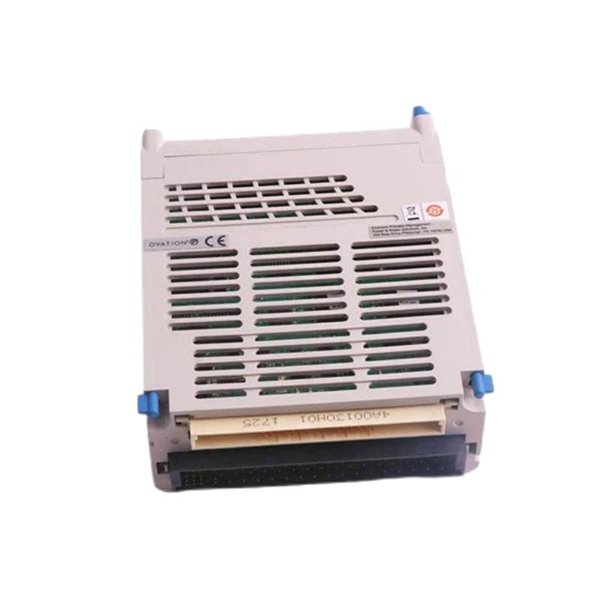

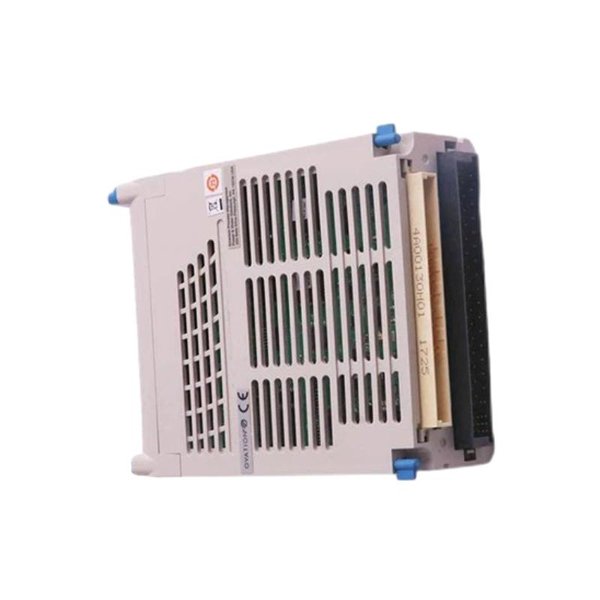

Ovation 5X00589G01 Input/Output Module

The Ovation 5X00589G01 Input/Output (I/O) Module is a critical component within the Emerson Ovation control system, designed to provide precise and reliable interfacing between field devices and the central control platform. The module is engineered to process a wide range of analog and digital signals, ensuring high-fidelity communication and signal integrity in industrial environments.

The 5X00589G01 I/O module is particularly suitable for applications requiring continuous monitoring, rapid signal acquisition, and fault-tolerant operation. Its robust design allows integration into redundant control architectures, making it ideal for power generation, water treatment, petrochemical, and other high-demand industrial processes. The module ensures that field measurements and control outputs are transmitted accurately, supporting safe and efficient plant operations.

Product Parameters

Product Applications

The 5X00589G01 I/O Module is widely used in industrial control and monitoring systems, including:

• Power Generation: Controls turbine, generator, and auxiliary equipment with high accuracy.

• Water and Wastewater Treatment: Interfaces with pumps, valves, and sensors for continuous monitoring.

• Petrochemical Plants: Processes analog and digital signals from temperature, pressure, and flow instruments.

• Industrial Automation: Provides reliable communication with actuators and digital field devices.

• Distributed Control Systems (DCS): Forms part of redundant I/O configurations for high-availability operations.

• Environmental Control: Monitors emissions, flow rates, and other critical environmental parameters.

Product Advantages

• High Accuracy: Supports precise analog and digital signal acquisition.

• Robust Diagnostics: Continuously monitors channels for errors and abnormal conditions.

• Redundancy Support: Compatible with Ovation redundant architectures to enhance system reliability.

• Modular Design: Easy installation and replacement in standard I/O racks.

• Electrical Isolation: Protects the module and system from cross-channel interference and surges.

• Wide Compatibility: Interfaces seamlessly with Ovation control systems and field devices.

• Fast Response: Low latency ensures timely signal processing for critical control loops.

FAQ

1. What types of signals does the 5X00589G01 module support?

   It supports analog voltage/current signals as well as digital input/output signals.

2. Can the module be used in redundant configurations?

   Yes, it is designed to operate in Ovation redundant control architectures.

3. Does the module provide channel diagnostics?

   Yes, it continuously monitors each channel for faults or abnormal conditions.

4. What is the electrical isolation between channels?

   Each channel is electrically isolated from others and the system bus to prevent interference.

5. What is the response time of the module?

   The module typically responds in less than 10 milliseconds.

6. Is the module compatible with older Ovation systems?

   Yes, it supports backward compatibility with legacy Ovation I/O racks and controllers.

7. What is the operating temperature range of the module?

   It operates between 0 °C to +60 °C.

8. Does the module support both digital and analog outputs?

   Yes, it can drive digital actuators and analog-controlled devices.

9. How is the module powered?

   The module consumes approximately 8 W and receives power from the I/O rack.

10. Can the module handle high-density I/O requirements?

    Yes, multiple 5X00589G01 modules can be installed to accommodate large numbers of input/output channels.
