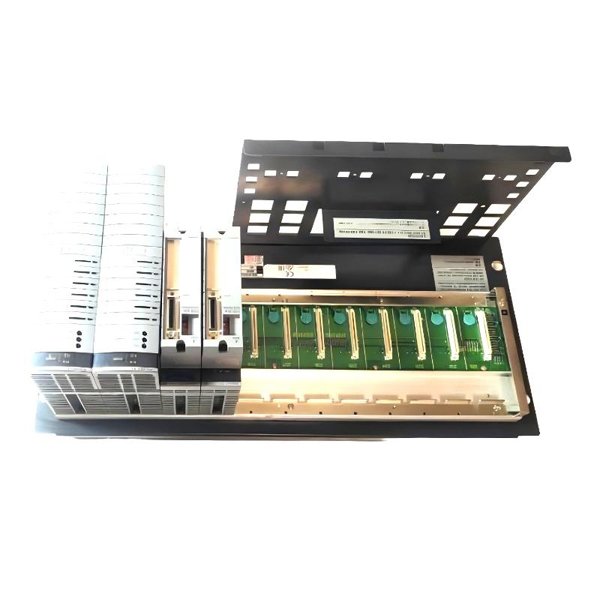

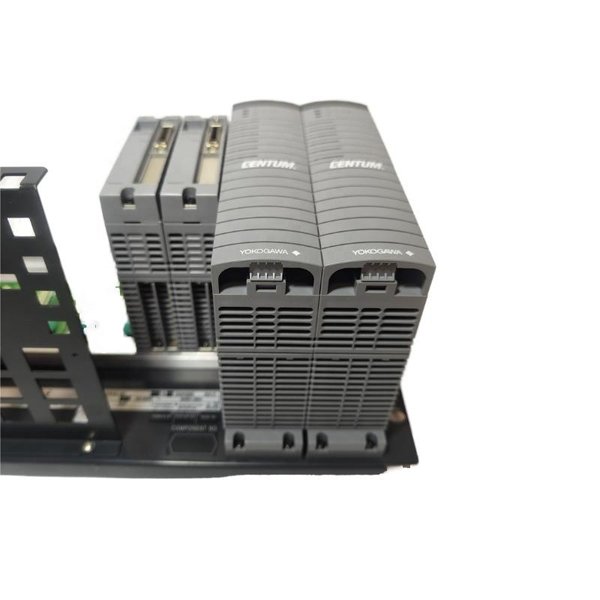

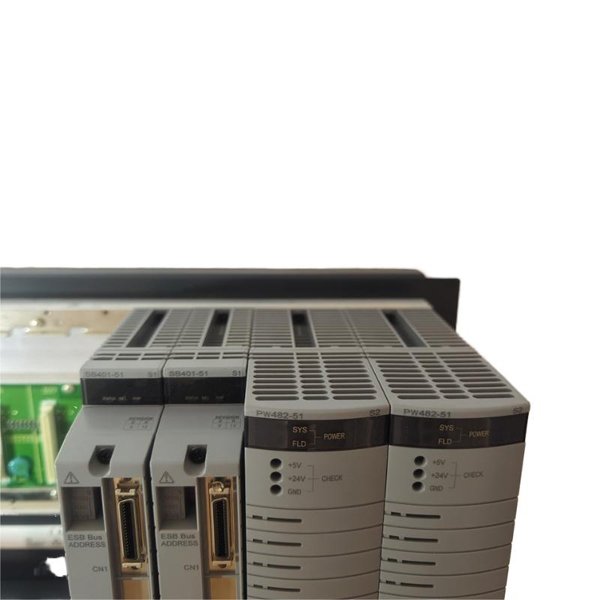

Yokogawa ANB10D-427/CU2T ESB Bus Node Unit

The Yokogawa ANB10D-427/CU2T ESB Bus Node Unit is an advanced module designed to provide seamless integration and communication within an ESB (Ethernet Smart Bus) system. This unit plays a critical role in managing data exchange between various devices and ensuring reliable system performance across large-scale industrial applications. The ANB10D-427/CU2T enables robust and real-time control and monitoring of processes in systems such as automation, control, and monitoring for various industries.

This bus node unit is ideal for environments where fast data transmission and high system reliability are critical. It supports advanced networking capabilities, with built-in features for easy configuration and maintenance. The ANB10D-427/CU2T is part of Yokogawa’s ESB product line, known for enhancing system integration and optimizing communication in automated environments. By enabling efficient data exchange, this unit improves productivity, reduces maintenance costs, and ensures the long-term reliability of automation systems.

Product Parameters

Product Applications

The Yokogawa ANB10D-427/CU2T ESB Bus Node Unit is a versatile component designed for a wide range of industrial applications, primarily in control systems where high-speed data communication is required. Key applications include:

• Industrial Automation Systems: The ESB node unit acts as a central communication hub, linking devices such as controllers, sensors, and actuators, enabling them to share data efficiently across the system.

• Process Control: Used in process control applications, the node unit ensures that control systems can communicate in real-time, improving system responsiveness and process accuracy.

• Distributed Control Systems (DCS): The unit integrates seamlessly into Distributed Control Systems, enhancing communication between field devices and central controllers, enabling operators to monitor and control processes from a central location.

• SCADA Systems: It plays a key role in Supervisory Control and Data Acquisition (SCADA) systems by facilitating communication between the central SCADA system and remote devices or units.

• Energy Management Systems: The unit is used in energy management systems for real-time monitoring of power consumption and distribution, ensuring optimal energy usage and minimizing wastage.

• Factory Automation: It provides the infrastructure for factory automation by connecting various automated systems and machines, enabling real-time data exchange and control.

Product Advantages

• High-Speed Communication: With a data transfer rate of 100 Mbps, the ANB10D-427/CU2T ensures fast and efficient communication between devices, which is critical for real-time control and monitoring.

• Robust and Reliable: Designed with industrial environments in mind, this bus node unit is built to withstand harsh operating conditions, offering enhanced reliability and longevity.

• Easy Integration: The unit is compatible with various communication protocols like TCP/IP and Modbus, making it easy to integrate into existing industrial networks and systems.

• Scalable: The system can be expanded to accommodate additional devices and systems as the need for more control points or monitoring capabilities grows.

• Compact Design: Despite its advanced capabilities, the unit is compact and rack-mountable, making it easy to install in control panels or equipment racks without taking up significant space.

• User-Friendly Configuration: The ANB10D-427/CU2T features intuitive configuration options and LED status indicators, making it easy to set up, monitor, and troubleshoot.

FAQ

1. What communication protocols does the ANB10D-427/CU2T support?

The ANB10D-427/CU2T supports TCP/IP and Modbus communication protocols, which are widely used in industrial automation and control systems.

2. What is the data transfer rate of the ANB10D-427/CU2T?

The unit has a data transfer rate of 100 Mbps, ensuring high-speed communication between devices in an industrial network.

3. What is the power supply requirement for the ANB10D-427/CU2T?

The unit requires a 24 VDC ±10% power supply, which is commonly used in industrial control systems.

4. What is the protection rating of the ANB10D-427/CU2T?

The ANB10D-427/CU2T has an IP20 protection rating, indicating that it is protected against solid objects larger than 12mm but is not waterproof.

5. How is the ANB10D-427/CU2T mounted?

The unit is rack-mounted, making it easy to install within control cabinets or server racks.

6. What is the operating temperature range of the ANB10D-427/CU2T?

The unit operates within a temperature range of -10°C to +60°C, suitable for most industrial environments.

7. Does the ANB10D-427/CU2T support any redundancy features?

While the unit itself does not have specific redundancy features, it can be integrated into a redundant ESB or DCS network for high availability and fault tolerance.

8. What is the weight of the ANB10D-427/CU2T?

The ANB10D-427/CU2T weighs 10 kg, which is typical for robust industrial components.

9. Can the ANB10D-427/CU2T be used in large-scale control systems?

Yes, the unit is designed for scalability and can be integrated into large control systems, including DCS and SCADA systems, to manage communication across multiple devices.

10. What are the status indicators available on the ANB10D-427/CU2T?

The unit features LED indicators that display the operational status, making it easy to monitor its performance and troubleshoot any issues.
