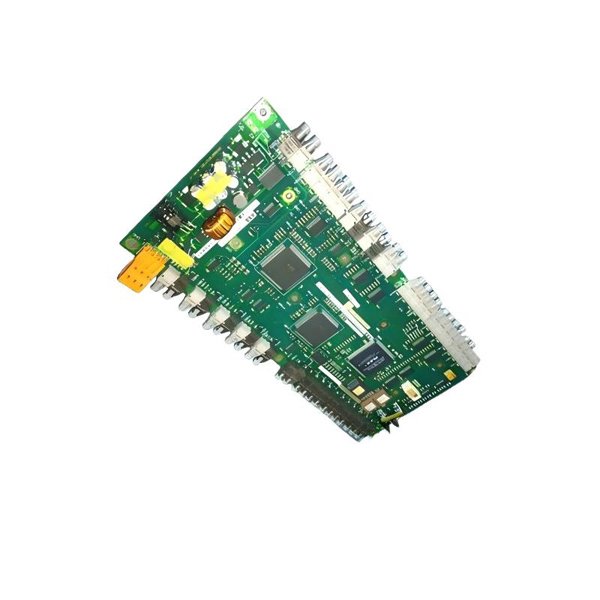

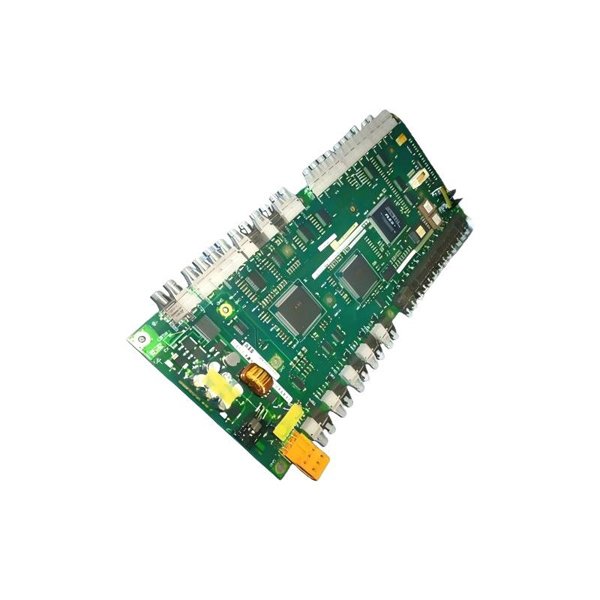

ABB UFC760BE103 3BHB007030R0103 IGCT Module

The ABB UFC760BE103 3BHB007030R0103 is an Integrated Gate Commutated Thyristor (IGCT) module designed for high-power industrial applications. It is engineered for fast switching, high efficiency, and robust performance in demanding environments. The UFC760BE103 is part of ABB’s advanced IGCT technology, providing superior performance for motor drives, power converters, and power transmission systems.

This IGCT module is designed to handle large amounts of power and switch efficiently at high frequencies, making it ideal for applications that require both speed and reliability. Whether used in renewable energy systems, traction systems, or industrial machinery, the UFC760BE103 excels at providing precise and stable power conversion.

Product Specifications

Here are the detailed specifications for the ABB UFC760BE103 3BHB007030R0103 IGCT module:

Product Applications

The ABB UFC760BE103 IGCT module is versatile and can be used in a variety of high-power applications. Its robust design and high switching capabilities make it ideal for the following uses:

1. Motor Drives: The module is widely used in high-power motor drives, ensuring efficient control of motors in industries like manufacturing, robotics, and heavy machinery.

2. Power Converters: It plays a critical role in power electronic converters, where precise current switching is required to convert AC to DC or DC to AC.

3. Renewable Energy Systems: The module is utilized in photovoltaic inverters, wind turbine converters, and other renewable energy systems to manage power flow with high efficiency.

4. Traction Systems: Common in railway and electric vehicle traction systems for efficient energy conversion and propulsion control.

5. HVDC (High-Voltage Direct Current) Systems: Used for long-distance power transmission, offering high voltage and current handling capabilities.

6. Uninterruptible Power Supplies (UPS): The module ensures continuous power in UPS systems, which are essential in maintaining power during outages in critical environments like hospitals and data centers.

Product Advantages

1. High Switching Frequency: Capable of handling up to 50 kHz switching frequency, enabling fast and efficient power conversion.

2. Low Conduction Losses: Minimizes energy losses during conduction, improving the overall efficiency of the system.

3. Wide Temperature Range: Operates efficiently in extreme temperatures ranging from -40°C to +125°C, making it suitable for harsh industrial environments.

4. Integrated Gate Drive Circuit: The module features an integrated gate drive, simplifying the design and reducing the need for external components.

5. Low Switching Losses: Designed to minimize switching losses, improving energy efficiency and reducing heat generation.

6. Compact Design: With dimensions of 160 x 90 x 30 mm and a weight of 0.6 kg, the module is compact, making it easy to integrate into existing systems with limited space.

7. High Reliability: Built for longevity and reliability, this module is suitable for demanding applications where downtime and failures are costly.

8. Enhanced Safety: Features built-in protection for overvoltage, overcurrent, and thermal protection, ensuring safe operation in high-power systems.

Frequently Asked Questions (FAQ)

1. What is the maximum current that the ABB UFC760BE103 IGCT module can handle?

   • The module is rated for 760 A, making it suitable for high-power industrial applications.

2. What voltage rating is the UFC760BE103 designed for?

   • It can handle up to 3.3 kV, allowing it to be used in high-voltage applications.

3. What is the switching frequency capability of this module?

   • The module can operate with switching frequencies of up to 50 kHz.

4. What is the operating temperature range for the ABB UFC760BE103?

   • The module can operate in temperatures between -40°C and +125°C, making it suitable for harsh industrial environments.

5. What are the advantages of using an IGCT over a traditional thyristor?

   • IGCTs offer faster switching speeds, reduced losses, and higher efficiency, making them ideal for modern high-power applications.

6. How much does the ABB UFC760BE103 weigh?

   • The module weighs 0.6 kg, which is relatively lightweight for its power rating and capabilities.

7. Can the UFC760BE103 be used in renewable energy systems?

   • Yes, it is commonly used in photovoltaic and wind turbine converters to handle high-power switching efficiently.

8. What is the leakage current of this IGCT module?

   • The leakage current is less than 10 mA, ensuring minimal energy loss.

9. Is the ABB UFC760BE103 easy to integrate into existing systems?

   • Yes, the module includes an integrated gate drive circuit, which simplifies system design and installation.

10. What are the typical applications for this IGCT module?

    • It is widely used in motor drives, power converters, renewable energy systems, HVDC applications, and UPS systems.
