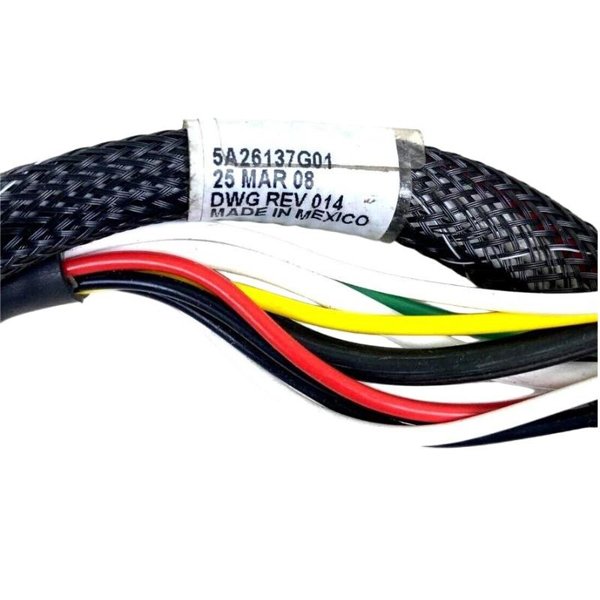

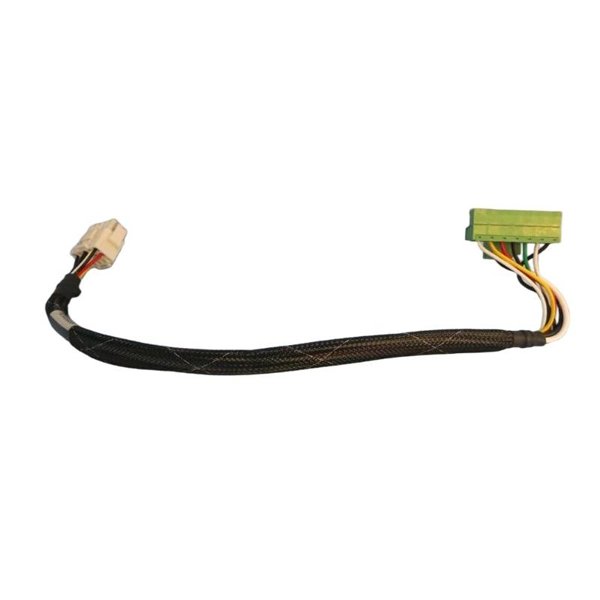

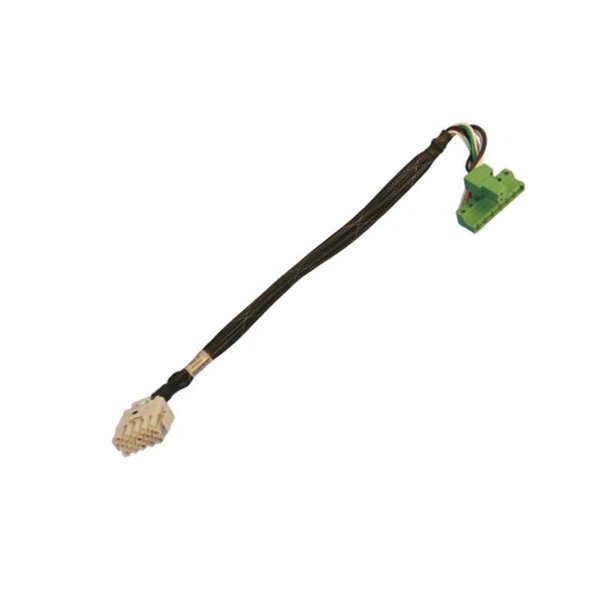

Ovation 5A26137G01 Distribution Cable

The Ovation 5A26137G01 Distribution Cable is a high-quality industrial-grade cable specifically designed for reliable signal and power transmission within Emerson’s Ovation control systems. Engineered to support high-performance automation networks, this cable ensures secure communication between system modules and field devices in mission-critical environments.

With rugged construction and excellent electrical properties, the 5A26137G01 is built to withstand the harsh conditions typically found in process automation, power generation, and industrial control facilities. Whether used in a new installation or as part of a system upgrade, this distribution cable provides the reliability and efficiency demanded by modern industrial systems.

Product Specifications

Product Applications

The Ovation 5A26137G01 Distribution Cable serves as a critical interconnect component in Ovation control systems and is used in a wide range of applications:

1. Power Plants

   Used to distribute control signals and low-voltage power between Ovation controllers and field equipment.

2. Process Control Facilities

   Facilitates reliable communication in chemical, petrochemical, and water treatment plants.

3. Industrial Automation Systems

   Ensures dependable transmission between PLCs, I/O modules, and sensors.

4. Substations

   Connects SCADA systems and protective relays in electrical substations.

5. OEM Equipment Integration

   Used by equipment manufacturers to ensure compatibility with Ovation-based automation platforms.

6. Distributed Control Systems (DCS)

   Functions as a signal backbone within Ovation DCS installations.

Product Advantages

The Ovation 5A26137G01 Distribution Cable provides several benefits that make it a trusted solution in demanding environments:

1. Shielded Construction

   Foil shielding reduces EMI (Electromagnetic Interference), ensuring signal integrity in high-noise environments.

2. Flame-Resistant Design

   Meets UL VW-1 and CSA FT4 flame test ratings, providing enhanced safety in industrial applications.

3. Flexible and Durable

   Withstands repeated flexing without performance loss, making it ideal for both static and dynamic applications.

4. High Temperature Tolerance

   Rated for continuous operation from -20°C to +90°C, suited for harsh climate zones.

5. RoHS and UL Compliance

   Meets international safety and environmental standards.

6. Customizable Lengths

   Can be tailored to system needs, reducing waste and installation complexity.

7. Easy Installation

   With a manageable bend radius and durable outer jacket, it is simple to route and secure within panels or conduit systems.

FAQ (Frequently Asked Questions)

1. What is the primary function of the 5A26137G01 Distribution Cable?

   • It serves to transmit control signals and low-voltage power between Ovation system components.

2. Is the cable shielded?

   • Yes, it includes foil shielding with a drain wire to minimize electromagnetic interference.

3. Can this cable be used outdoors?

   • It is primarily rated for indoor use, but may be used in protected outdoor enclosures depending on local conditions.

4. What kind of connectors are compatible with this cable?

   • Standard terminal blocks or Ovation-specific connectors designed for 18 AWG conductors.

5. Is this cable flame-retardant?

   • Yes, it is rated UL VW-1 and CSA FT4 for flame resistance.

6. Can I order the cable in custom lengths?

   • Absolutely. Though standard lengths are 100 meters, custom cuts are available on request.

7. What is the insulation material used?

   • The insulation is made of durable, heat-resistant PVC.

8. Is the cable resistant to oil and chemicals?

   • Yes, the outer jacket is oil- and chemical-resistant for industrial environments.

9. What color is the cable jacket?

   • The cable jacket is black.

10. Does the cable comply with RoHS standards?

• Yes, it is fully RoHS-compliant and environmentally safe.
