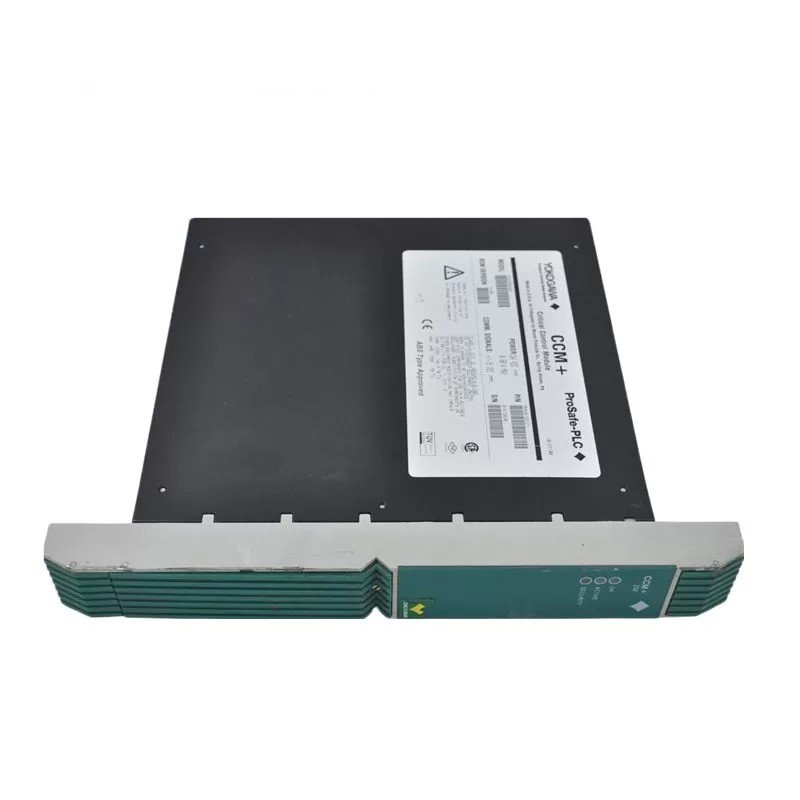

The YOKOGAWA PSCCM22AAN is vital in Yokogawa’s ProSafe-RS safety instrumented system (SIS). It acts as the central processing unit for the SIS, handling safety-related signals.

Safety-Related Signal Processing

The PSCCM22AAN processes signals from field devices, including sensors, transmitters, and switches. It performs calculations and logical operations to assess hazardous conditions.

Safety Function Execution

Upon detecting a hazardous condition, the PSCCM22AAN initiates the necessary safety function. This may include shutting down a process or activating an emergency shutdown system.

Diagnostics and Monitoring

The module monitors its health and connected devices. It detects faults and provides diagnostic information for maintenance and troubleshooting.

Communication

The PSCCM22AAN communicates with other SIS components, such as the safety logic solver (SLS) and the fieldbus network. It exchanges data and status information to maintain system integrity.

Applications

The YOKOGAWA PSCCM22AAN is essential in industries where safety is paramount:

• Oil and Gas: Used in process control, emergency shutdown systems, and fire and gas detection.
• Chemical: Applied in process control, hazardous materials handling, and environmental monitoring.
• Power Generation: Utilized in nuclear, thermal, and hydroelectric power plants.
• Pharmaceutical: Supports process control, quality assurance, and regulatory compliance.
