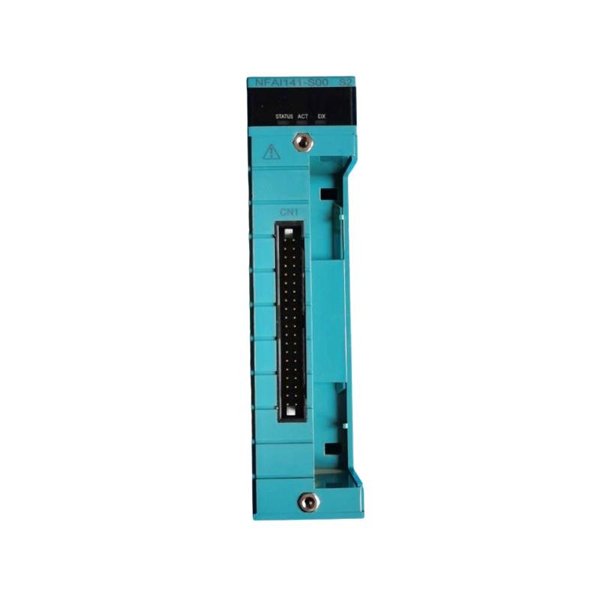

Yokogawa NFAI141-H00/CCC01 Analog Input Module

The Yokogawa NFAI141-H00/CCC01 Analog Input Module is a critical component within Yokogawa’s advanced distributed control systems (DCS), designed to deliver high-precision analog signal acquisition in complex industrial environments. This module provides exceptional accuracy, high-resolution measurement, and robust isolation, making it suitable for demanding applications in industries such as oil & gas, chemical processing, power generation, water treatment, and manufacturing automation.

Engineered to support multiple signal types, including standard 4–20 mA current loops and 1–5 V DC voltage signals, the NFAI141-H00 ensures compatibility with a wide range of field instrumentation such as transmitters, sensors, and analyzers. Its 16-bit resolution guarantees fine granularity in measurement, reducing errors and improving process reliability.

Product Parameters

Product Applications

The NFAI141-H00/CCC01 module is widely used in industrial automation for acquiring and processing analog signals from various sensors and transmitters. Key application areas include:

• Process Control: Captures real-time data from temperature, pressure, and flow sensors for accurate process regulation.

• Energy Monitoring: Collects analog readings for power distribution and energy efficiency management.

• Oil & Gas: Used in refineries and offshore platforms for monitoring critical parameters.

• Chemical Plants: Ensures precise control of chemical reactions through continuous data feedback.

• Manufacturing Automation: Facilitates monitoring of production lines and machinery performance.

Product Advantages

• High Accuracy: 16-bit resolution ensures precise analog data acquisition.

• Strong Isolation: Individual channel isolation reduces signal interference and enhances system reliability.

• Flexible Signal Support: Handles both voltage and current inputs for greater compatibility.

• Robust Design: Operates reliably in harsh industrial conditions with excellent thermal stability.

• Easy Integration: Designed to work seamlessly with Yokogawa systems, minimizing configuration time.

• Enhanced Safety: Electrical isolation protects connected equipment and operators.

FAQ

1. How does the NFAI141 module achieve channel isolation?

   Each channel uses opto-isolation to prevent cross-talk and protect against voltage surges.

2. What is the typical conversion time for analog signals?

   The module typically processes input signals within a few milliseconds for real-time accuracy.

3. Can this module handle mixed input types simultaneously?

   Yes, the module supports both voltage and current inputs within the configured range.

4. How does the module ensure data integrity under noise conditions?

   It employs advanced filtering and shielding techniques to minimize electrical interference.

5. What communication protocol does this module use?

   It uses Yokogawa’s proprietary system bus for high-speed and reliable communication.

6. Is there built-in diagnostic functionality?

   Yes, it includes self-diagnostic features to detect faults and alert operators.

7. What is the maximum input impedance for voltage signals?

   The input impedance is typically above 10 MΩ to ensure negligible loading effect.

8. Does the module support redundant configurations?

   Yes, it can operate in redundant system architectures for critical applications.

9. How does the module handle temperature compensation?

   Internal circuitry compensates for temperature variations to maintain accuracy.

10. Is the module firmware upgradeable?

    Yes, firmware updates can be applied through the system interface for added features and fixes.
