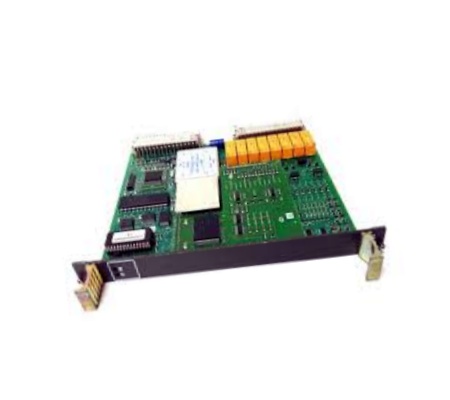

ABB 83SR04C-E GJR2390200R1411 Analog Input Module

ABB 83SR04C-E GJR2390200R1411 is an analog input module in the ABB 83SR series of control modules. This module is used to connect analog signals and is part of a larger control system for industrial automation applications. The 83SR04C-E is specifically designed to process analog input signals. It converts analog signals from field devices into digital signals that can be processed by a PLC, DCS or other control system.

Voltage Signal (0-10V, 0-5V)

Current Signal (4-20mA, 0-20mA)

The 83SR04C-E integrates seamlessly into industrial automation systems, connecting field devices to control systems for real-time monitoring and control.

Signal Conditioning Includes built-in signal conditioning capabilities, allowing it to adjust or filter incoming signals as needed for processing, ensuring that analog data is properly formatted for use by the control system.

The 83SR04C-E may support common industrial communication protocols to transmit data between the analog input module and the main control system. The module can be configured to handle different range, scaling, and signal conditioning options to meet the specific needs of the application. This can be done through software or physical adjustments.

Frequently asked questions about the product are as follows:

-What is ABB 83SR04C-E GJR2390200R1411?

It is an analog input module. It is responsible for converting analog signals from field devices into digital signals that can be processed by the control system.

- What types of analog signals does ABB 83SR04C-E process?

Voltage signals (0-10V, 0-5V)

Current signals (4-20mA, 0-20mA)

These signals can come from various field devices, such as temperature sensors, pressure sensors or flow meters.

- How to configure ABB 83SR04C-E?

Including scaling of analog inputs, alarm thresholds and communication settings. Physical adjustments Depending on the design of the module, some basic configuration may also be done through DIP switches or jumpers.
