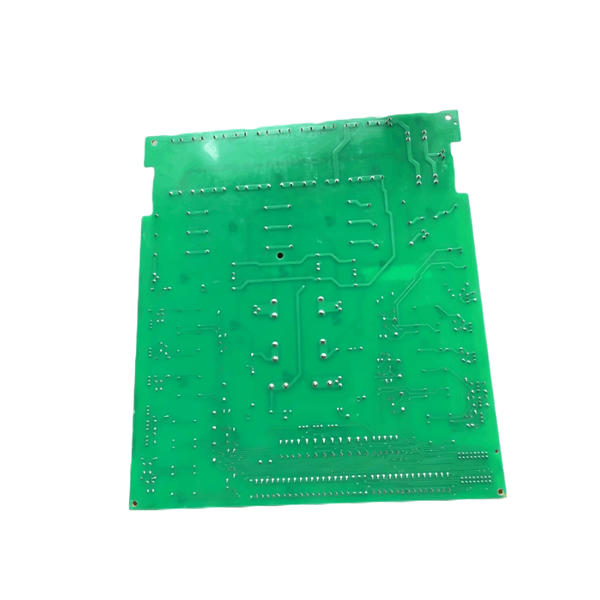

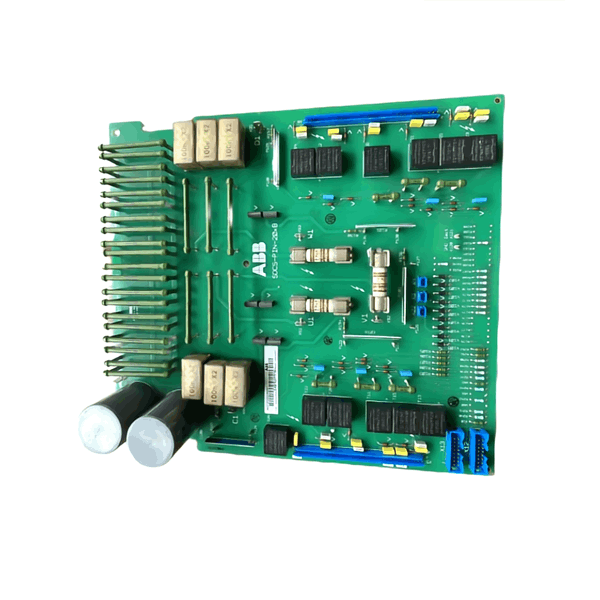

ABB SDCS-PIN-206B 3ADT312500R0002 Power Interface Board

The ABB SDCS-PIN-206B (Part No: 3ADT312500R0002) is an advanced power interface board engineered to work seamlessly with ABB’s DCS500 and DCS600 DC drive systems. It serves as a critical component within the SDCS (Speed Drive Control System) platform, offering reliable electrical interfacing between control electronics and the power stack. The board processes and transmits analog and digital signals, supports drive logic coordination, and offers onboard diagnostics for field troubleshooting.

As a successor to the SDCS-PIN-205 series, the 206B introduces improvements in electrical isolation, thermal resistance, and signal accuracy. It is ideal for high-load industrial environments where precision, durability, and integration reliability are crucial. From motor control in rolling mills to large-scale paper machines, the SDCS-PIN-206B supports continuous operation with minimal downtime.

Technical Specifications

Applications

The SDCS-PIN-206B is widely used in various industries where stable DC drive control and durable signal interfacing are essential. Typical applications include:

• Steel & Metal Processing Plants – For controlling DC motors in rolling mills, coil handling, and wire production.

• Pulp & Paper Industry – For managing high-torque DC motors in large-format paper manufacturing systems.

• Chemical & Petrochemical Plants – Ensures precise motor operation in high-humidity, electrically noisy environments.

• Crane and Hoisting Systems – Supports lifting applications requiring synchronized motor drives.

• Marine and Offshore Drives – Where sealed enclosures and rugged components are vital.

• Heavy Machinery Control Cabinets – OEMs use the board for embedded DC motor control in process automation.

Product Advantages

• Improved Electrical Isolation – Minimizes the risk of signal interference, enabling cleaner analog communication.

• Industrial Durability – Built for 24/7 operation under high load and temperature conditions.

• Integrated Diagnostic Feedback – LED indicators aid in quick fault detection and status monitoring.

• Low Maintenance Design – Solid-state design reduces service intervals and simplifies replacement.

• High Signal Fidelity – Ensures accurate analog and digital signal transfer between logic and power modules.

• Backward Compatibility – Can replace or work alongside earlier SDCS-PIN modules with minimal modification.

Frequently Asked Questions (FAQ)

1. Is the SDCS-PIN-206B compatible with all ABB DCS600 drives?

   Yes, it supports all standard configurations of DCS600 drives. Compatibility with custom versions should be verified with ABB documentation.

2. How does the SDCS-PIN-206B differ from the 205B series?

   The 206B features improved electrical noise immunity, better thermal management, and updated terminal layouts for easier installation.

3. Can this board be used in retrofit applications?

   Absolutely. It is often used to upgrade older DCS500/DCS600 systems, extending the life of legacy control panels.

4. What is the lifespan of the SDCS-PIN-206B?

   In standard industrial environments, the board can operate reliably for 10–15 years with proper ventilation and load conditions.

5. Does the board require firmware updates?

   No. It is a hardware-only module with no firmware. All behavior is defined by the system configuration and connected drive.

6. Is ESD protection required during handling?

   Yes. Electrostatic safety measures are essential when installing or removing the board to prevent latent faults.

7. Can I connect additional I/O devices directly to the board?

   No. It is not designed to support external I/O expansion; use dedicated I/O modules like SDCS-IOB-2.

8. What are the signs of board failure?

   Symptoms include no LED indicators, erratic drive behavior, communication faults, or loss of signal between modules.

9. Can the board be cleaned if exposed to dust?

   Yes, use ESD-safe brushes or compressed air. Avoid solvents or direct contact with cleaning liquids.

10. Is the board hot-swappable?

    No. Always disconnect the power before removing or installing the board to avoid equipment damage.
