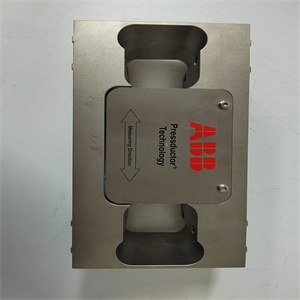

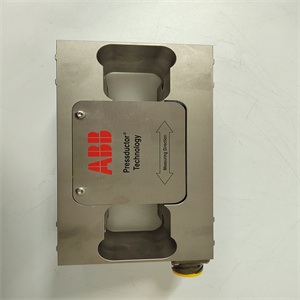

ABB PFTL101A 1.0KN 3BSE004166R1 Product Overview

ABB PFTL101A 1.0KN 3BSE004166R1 is a horizontal tension sensor offered by ABB. Here is a detailed overview of its specifications, features, functions, and application areas

Product Parameters and Specifications

• Measurement Range: 1.0 kN (1000 Newton)
• Tension Measurement: Horizontal tension sensor designed to
• Sensing Technology: Uses strain gauge or electronic sensor technology to detect tension forces^1.
• Input Voltage: 24V²
• Work Voltage: 24V²
• Rated Current: 5A²
• Communication Interface: HDMI interface²
• Operating Temperature: -40 to 100°C²
• System Memory: 8MB²
• Internal Memory: Memory expansion capacity up to 128MB²
• Display: IPS display with 99.9% color accuracy²
• USB Interfaces: 2 USB interfaces²
• Storage Card Slots: 2 slots²
• Panel Protection Grade: IP3²

Dimensions and Weight

Exact dimensions and weight are not specified in the search results. However, it is likely a compact sensor designed for industrial applications.

Features

• High Accuracy: Provides precise tension measurements.
• Remote Control: Allows for remote monitoring and configuration^2.
• Self-Diagnostics: Includes self-diagnostic testing for sensor functionality^3.
• Configurable Outputs: Offers analog and digital inputs/outputs for integration into various systems^3.
• Multiple Units: Supports unit selection for tension measurement in N, kN, MN, kp, t, lb, T^3.
• Alarm Function: Includes light alarm functionality^2.

Functions

• Tension Measurement: Measures horizontal tension or pull forces to ensure materials or devices are operating within specified tension limits^1.
• Monitoring and Control: Provides real-time tension data for monitoring and controlling industrial processes^1.
• Calibration and Maintenance: Regular calibration and maintenance ensure accurate and reliable tension measurements^1.

Application Areas

• Textile Industry: Used to control yarn or fabric tension during textile production^4.
• Printing Machinery: Ensures paper or rolls maintain constant tension during printing processes^4.
• Metal Processing: Maintains appropriate tension in metal strip production^4.
• Packaging Industry: Controls tension in packaging materials^1.
• Cable and Wire Manufacturing: Ensures cables and wires maintain consistent tension during production^14.
• Other Industries: Also used in industries like paper and film processing, wire drawing, and other manufacturing processes where tension control is critical^37.
