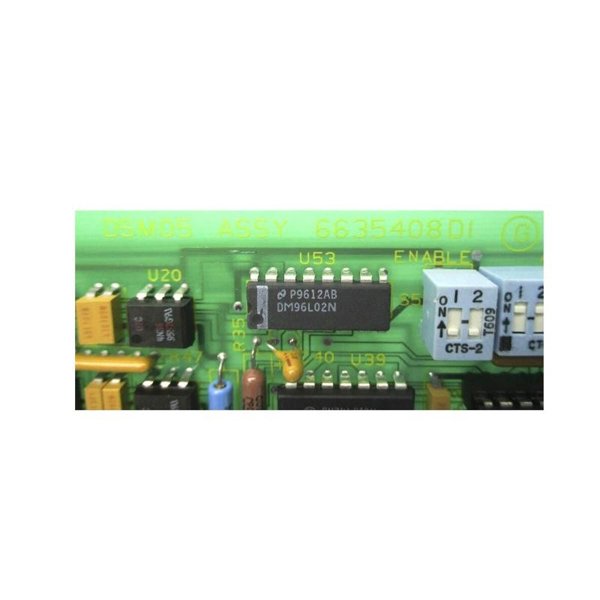

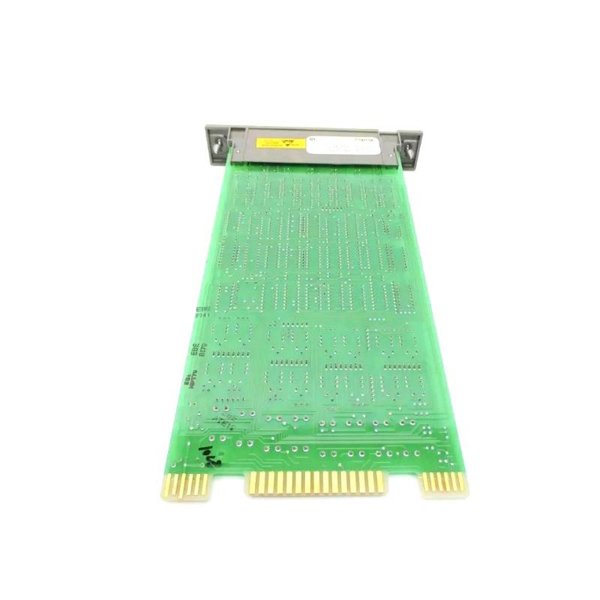

ABB Bailey IMDSM05 Digital I/O Slave Module

The ABB Bailey IMDSM05 Digital I/O Slave Module is a high-performance component designed for industrial automation systems. It integrates seamlessly with other modules and controllers within the ABB control system, particularly in processes requiring efficient digital input and output functions. The module serves as an essential part of the control system, ensuring real-time data transfer, high-speed signal processing, and reliable communication between various system components.

The IMDSM05 module is particularly designed to handle the input and output signals in a versatile manner, meeting the needs of complex industrial environments. Its durability and ease of integration make it a preferred choice in various industries such as manufacturing, power plants, oil & gas, and process industries.

Product Parameters

Product Applications

The ABB Bailey IMDSM05 Digital I/O Slave Module is widely used in industries requiring precise control and monitoring of digital signals. It is typically employed in applications like:

1. Automation Systems: In automated factories, controlling machinery or process lines that require reliable digital I/O connections.

2. Energy Management: Used in power plants for control and monitoring of energy consumption and distribution.

3. Oil & Gas Industry: For the remote control of process units and safety monitoring systems.

4. Building Automation: To manage lighting, heating, and cooling systems in smart buildings.

5. Process Industries: In chemical, water treatment, and food processing plants for real-time data acquisition and control.

The ability to integrate with Profibus and Modbus protocols makes it ideal for use in complex control systems with multiple communication requirements.

Product Advantages

1. Reliability: With high protection standards and rugged design, the IMDSM05 is built to withstand harsh industrial environments.

2. Seamless Integration: Easy integration with ABB’s other control system components like PLCs, making it suitable for upgrading or expanding existing systems.

3. Flexible Communication Options: Supports both Profibus DP and Modbus RTU communication protocols, enhancing the module’s versatility in various system architectures.

4. Compact Design: The module’s small footprint allows it to be mounted in tight spaces, which is essential in industrial applications with space constraints.

5. High-Speed I/O Processing: Capable of handling multiple I/O signals simultaneously with minimal delay, ensuring smooth operation in time-sensitive environments.

6. Cost-Efficiency: Offers a cost-effective solution for digital I/O processing without compromising on performance or durability.

7. Low Power Consumption: Designed for low energy usage, reducing operational costs in large systems.

Frequently Asked Questions (FAQ)

1. What is the main function of the IMDSM05 module?

   • The IMDSM05 module handles digital input and output signals within industrial control systems, allowing for seamless communication between devices.

2. Can the IMDSM05 module be used in hazardous environments?

   • The IMDSM05 module is designed for general industrial use and is not certified for hazardous environments. It operates effectively within the standard temperature and voltage ranges.

3. What types of inputs and outputs does the IMDSM05 support?

   • The IMDSM05 supports digital inputs with dry contacts and open collector outputs. It is also equipped with relay outputs for flexibility in control applications.

4. What communication protocols are supported by the IMDSM05?

   • The IMDSM05 supports Profibus DP and Modbus RTU, making it adaptable for a variety of industrial networks.

5. How is the module mounted?

   • The IMDSM05 is designed for DIN rail mounting, which is a common practice in industrial automation systems for ease of installation and maintenance.

6. What is the temperature range for operating the IMDSM05 module?

   • The module operates effectively within a temperature range of -20°C to +60°C, suitable for many industrial environments.

7. How many I/O channels are available on the IMDSM05?

   • The IMDSM05 provides 16 digital inputs and 16 digital outputs, offering a balanced solution for digital signal processing.

8. What are the power requirements for the IMDSM05 module?

   • The module requires a 24 VDC ± 20% power supply, which is a standard voltage for many industrial devices.

9. Can the IMDSM05 module be used in a mixed protocol environment?

   • Yes, the IMDSM05 supports both Profibus DP and Modbus RTU protocols, making it highly versatile in mixed protocol environments.

10. What are the dimensions of the IMDSM05 module?

    • The module measures 271 x 150 x 30 mm in size, making it compact and easy to install in confined spaces.
