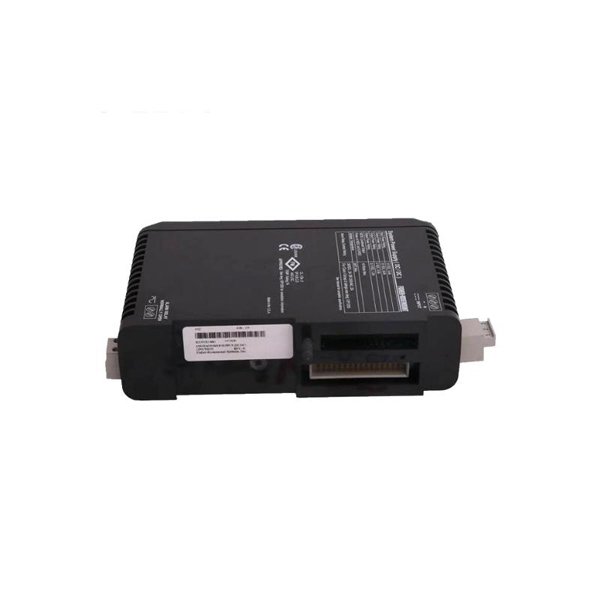

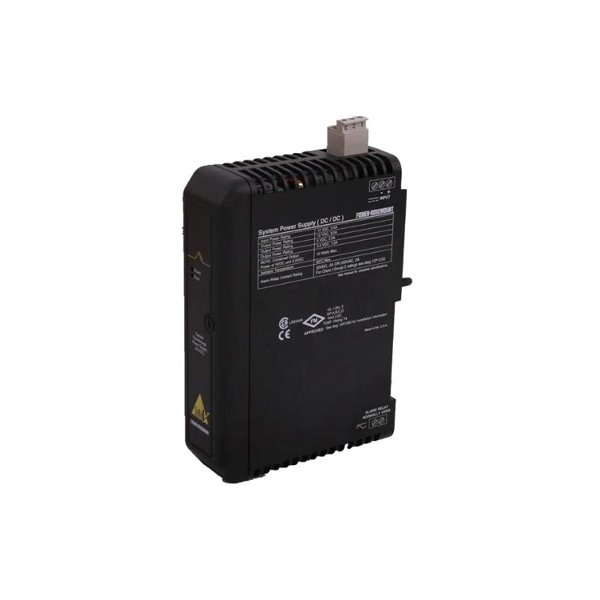

Emerson KJ1501X1-BB1 Power Supply Module

The Emerson KJ1501X1-BB1 is a dedicated power supply module designed specifically for the KJ1500 Series of programmable automation controllers (PACs). It plays a critical role in ensuring stable and reliable power delivery to the control system components, maintaining consistent operation even under challenging industrial conditions. This module is engineered to support the high performance and safety requirements typical of Emerson’s PAC solutions.

The KJ1501X1-BB1 offers robust power management with built-in protections against overloads and short circuits, thus safeguarding the control hardware and connected devices. Its compatibility with the KJ1500 platform simplifies system design and maintenance, making it a favored choice in many process automation installations.

The module is appreciated for its efficiency, durability, and ability to deliver clean power to complex control systems, which is vital in minimizing downtime and extending system lifespan.

Technical Specifications

Applications

The KJ1501X1-BB1 Power Supply Module is widely used across various industrial sectors where Emerson’s KJ1500 PACs are deployed:

• Process Automation: Providing power for controllers in chemical, oil & gas, and refining plants.

• Manufacturing: Powering control systems on production lines in automotive, food and beverage, and packaging industries.

• Energy Sector: Supplying stable power in power generation and distribution applications.

• Water Treatment: Supporting PLCs and controllers in water and wastewater plants.

• Pharmaceutical Industry: Delivering clean and reliable power for automation in drug manufacturing.

• Infrastructure Projects: Used in building management and transportation systems for dependable automation.

Advantages

• High Reliability: Ensures continuous power supply with robust protection against electrical faults.

• Wide Input Voltage Range: Compatible with global power standards for versatile deployment.

• Compact Size: Small footprint for easy integration into control cabinets.

• Efficient Cooling: Natural convection cooling reduces maintenance needs and improves lifespan.

• Seamless Compatibility: Specifically designed for Emerson KJ1500 series controllers.

• Safety Certified: Meets global safety standards ensuring reliable operation in industrial environments.

• Easy Installation: DIN rail mounting facilitates quick setup and replacement.

• Energy Efficient: Delivers high efficiency to reduce energy consumption and heat generation.

Frequently Asked Questions (FAQ)

1. What is the output voltage of the KJ1501X1-BB1 power supply?

   The output voltage is 24 VDC.

2. What is the maximum output current?

   The maximum output current is 5 amperes.

3. Can this power supply module operate globally?

   Yes, it accepts 100 to 240 VAC input, making it suitable for global use.

4. Does it have any built-in protection features?

   Yes, it includes overcurrent, overvoltage, and short circuit protections.

5. How is the module cooled?

   It uses convection cooling, requiring no fans.

6. What are the dimensions of this power supply?

   It measures 89 × 140 × 38 mm.

7. Is this power supply compatible with other Emerson controllers?

   It is specifically designed for the KJ1500 series.

8. What mounting options are available?

   The module is mounted on a standard DIN rail.

9. What operating temperature range can it withstand?

   It operates between 0°C and 55°C.

10. Is this power supply certified for industrial safety standards?

    Yes, it holds UL, CE, and CSA certifications.
