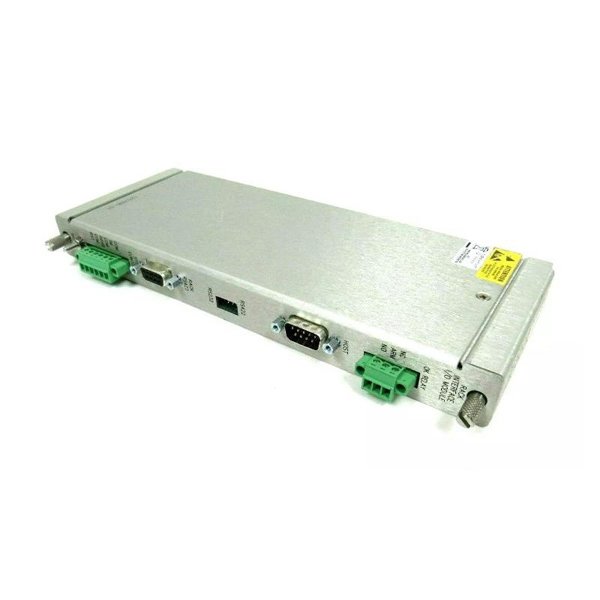

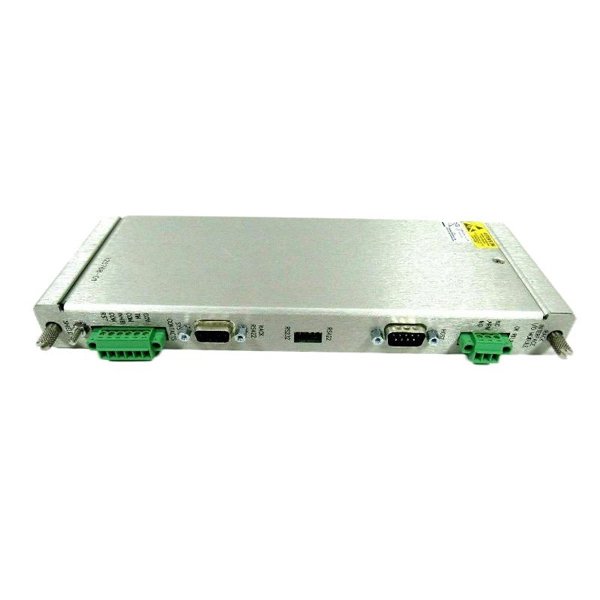

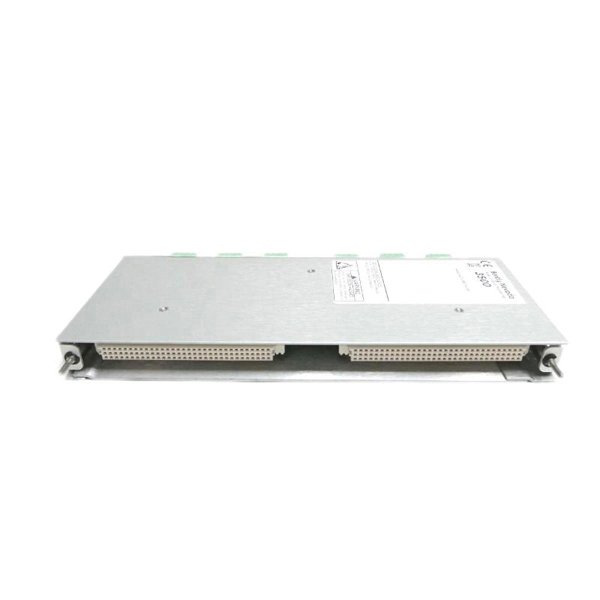

Bently Nevada 3500/20-01-02-00 125768-01 Rack Interface Module

The Bently Nevada 3500/20-01-02-00 Rack Interface Module (RIM), part number 125768-01, plays a central role in the Bently Nevada 3500 Series Machinery Protection System. It acts as the interface between the 3500 monitoring rack and external communication devices such as System 1® condition monitoring software, distributed control systems (DCS), or programmable logic controllers (PLC). This module also performs various rack-level functions, including the management of configuration data and communication status.

The 3500/20 RIM is vital for system integrity, supporting configuration uploads/downloads, real-time alarm transmission, and system diagnostics. It is often installed in the leftmost slot (slot 1) of the 3500 rack and is essential for operating the system’s configuration and communication capabilities.

Technical Specifications

Applications

The 3500/20-01-02-00 Rack Interface Module is a core component of the Bently Nevada 3500 Series and is used in a variety of critical monitoring and protection environments:

• Gas and Steam Turbine Monitoring Systems

• Compressor Health Management

• Rotating Equipment in Refineries and Petrochemical Plants

• Large Industrial Motor and Generator Monitoring

• Power Generation Control Systems

• Remote Asset Monitoring via System 1®

This module allows the 3500 rack to integrate with plant-wide control and asset management systems, enhancing visibility, reliability, and diagnostic capabilities.

Product Advantages

• Centralized Rack Communication Control

  Acts as the nerve center of the 3500 monitoring rack, managing all system-wide configuration and communication functions.

• Reliable and Redundant Monitoring

  Enables the use of dual RIMs in redundant configurations, providing continuous system operation even if one module fails.

• Diagnostic and Status Monitoring

  Provides real-time LED status indicators and health monitoring for effective troubleshooting.

• Versatile Connectivity

  Supports multiple communication protocols (RS-232, RS-422/485), with variants supporting Ethernet or TDI (Transient Data Interface).

• High Compatibility

  Seamlessly works with all modules in the 3500 series and integrates with System 1® software.

• Modular Design

  Easily replaceable and hot-swappable without powering down the rack.

Frequently Asked Questions (FAQ)

1. What is the main function of the 3500/20 Rack Interface Module?

   It manages communication between the rack and external systems while also handling system configuration.

2. Where is the RIM installed in the rack?

   It is always installed in slot 1, the leftmost slot of the 3500 rack.

3. Can I use two RIMs for redundancy?

   Yes, the 3500 Series allows dual RIMs to provide backup in case of a primary failure.

4. Is Ethernet supported in this module?

   This specific model supports RS-232 and RS-422/485; Ethernet support is available in other RIM variants.

5. How is the module configured?

   Configuration is done via 3500 Configuration Software or front-panel DIP switches.

6. What software is required to communicate with the RIM?

   Typically, Bently Nevada’s System 1® condition monitoring software is used.

7. What happens if the RIM fails?

   In non-redundant systems, rack communication is lost. In redundant setups, the backup RIM takes over.

8. Is the module hot-swappable?

   Yes, it can be removed and replaced without shutting down the system.

9. Does the RIM store configuration data?

   Yes, it stores system configuration and facilitates upload/download operations.

10. Is this module required for the rack to operate?

    Yes, the 3500 rack cannot function properly without at least one RIM installed.
