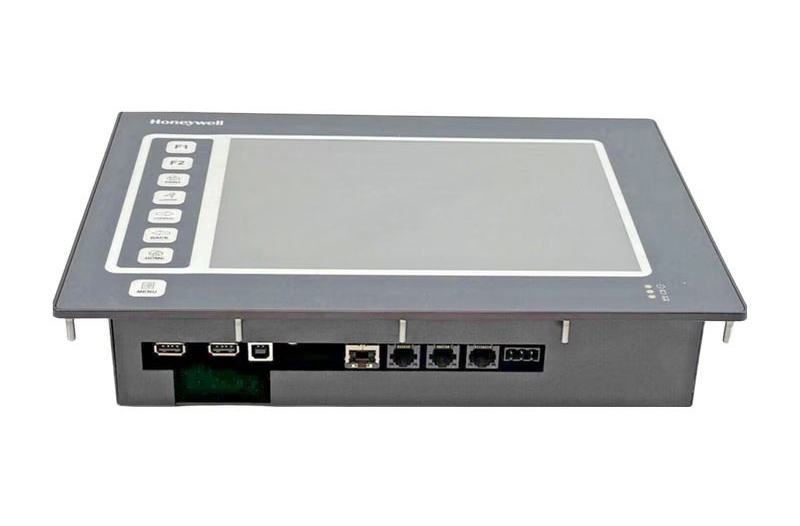

Honeywell 900CS10-00 Control Station Interface Unit

The Honeywell 900CS10-00 Control Station offers an intuitive interface for the ControlEdge HC900 PAC. It improves system performance, reduces operator workload, and enhances process visibility. The 10.4-inch touchscreen supports fast interaction and accurate control in industrial environments. Additionally, its rugged design ensures reliable operation in harsh conditions. With advanced features and flexible connectivity, it supports both local and remote operations.

General Information

• Manufacturer: Honeywell
• Series: 900 Control Station
• Model Number: 900CS10-00
• Category: HMI / MMI / OIT
• Subcategory: Operator Interface
• Weight: 5.57 lbs

Display and Enclosure

• Display Size: 10.4 inches (touchscreen)
• Enclosure: Full metal case
• Front Bezel: Water-tight for industrial protection

Power and Electrical

• Power Supply: +24 VDC ±20%
• Power Consumption: 29 W maximum (without options)

Connectivity and Ports

• Ethernet: 10/100 Base-T
• Serial: Optional RS485
• USB Ports:
  • 2 × USB host ports
  • 1 × USB device port
• Wi-Fi: Optional interface for remote monitoring

Software and Features

• Configuration Tool: Station Designer PC software
• Custom Display: Supports display development tools
• Multilingual Support: Yes, for global use

Environmental Ratings

• Operating Temperature: -10 to 50 °C (14 to 122 °F)
• Storage Temperature: -20 to 70 °C (-4 to 158 °F)
• Humidity: Up to 80% RH, non-condensing (0 to 50°C)
• Altitude: Operational up to 2000 meters
• Vibration Resistance: 5–500 Hz, 2 g (IEC 68-2-6 compliant)
