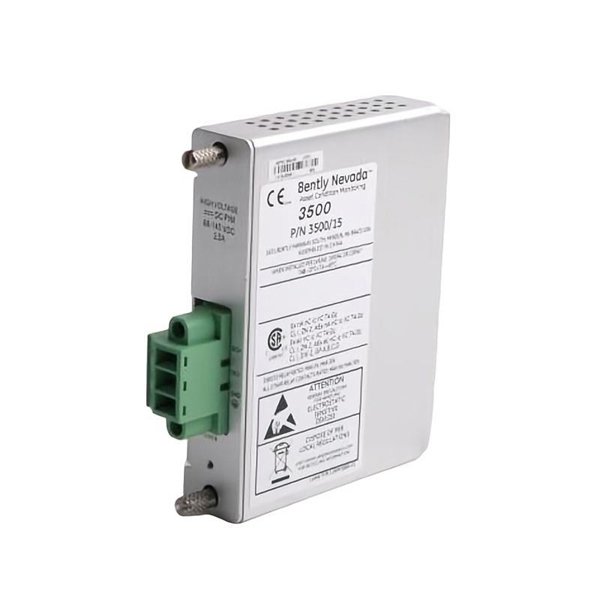

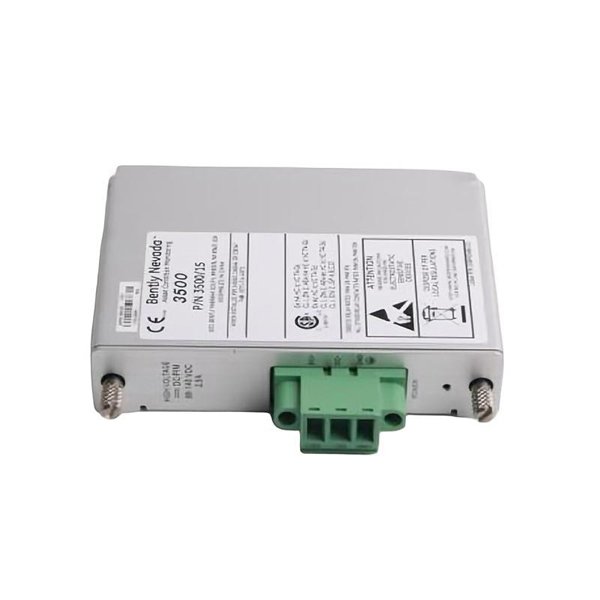

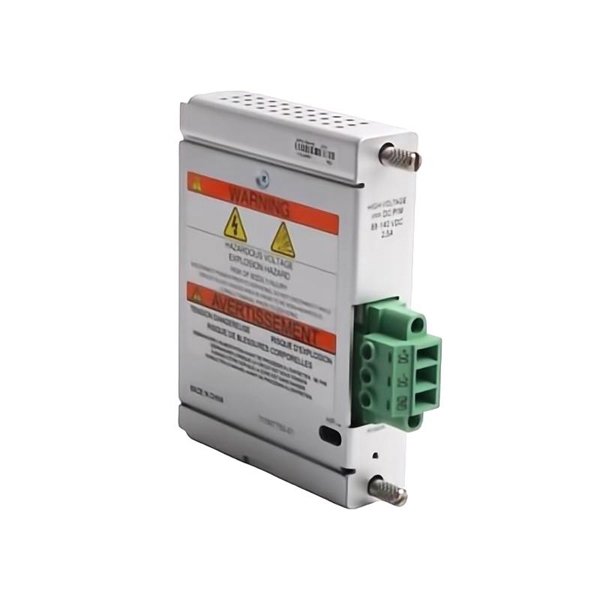

Bently Nevada 3500/15 115M7750-01 High Voltage DC PIM

The Bently Nevada 3500/15 High Voltage DC PIM (Part Number 115M7750-01) is a specialized module designed to support high voltage DC applications within the Bently Nevada 3500 Series Machinery Protection System. This Power Interface Module (PIM) serves as an interface for providing stable and reliable high voltage DC power essential for driving specific sensors and components within the machinery protection system. It ensures precise voltage regulation and protection mechanisms, which are critical for the accurate functioning of high voltage measurement devices and monitoring equipment. The module’s robust construction and integration capability enable it to perform effectively in demanding industrial environments such as power plants, oil and gas installations, and heavy manufacturing, where continuous machinery protection is paramount.

Product Specifications

Applications

The 3500/15 High Voltage DC PIM module is designed to support and power high voltage sensor components within the machinery protection framework. Its key applications include:

• Supplying high voltage DC power to proximity probes and other sensors requiring elevated voltage levels

• Facilitating accurate sensor excitation for vibration and displacement monitoring systems

• Powering specialized high voltage devices in turbines, compressors, and generators

• Ensuring stable and noise-free power delivery for critical rotating machinery monitoring

• Supporting safety and machinery protection systems in power generation plants and petrochemical industries

• Integration in complex condition monitoring and diagnostic systems requiring high voltage sensor interface

Advantages

• Specialized High Voltage Support: Provides stable high voltage DC output tailored for sensor and module requirements.

• Reliable Performance: Ensures consistent voltage regulation, critical for accurate sensor data acquisition.

• Rugged Industrial Design: Built to operate in challenging environments with a wide temperature range.

• Seamless Integration: Fully compatible with the 3500 Series rack system for easy installation and replacement.

• Enhanced Safety: Incorporates protective features to prevent over-voltage and electrical faults.

• Compact Form Factor: Designed to occupy minimal rack space while delivering high voltage power.

• Proven Industrial Use: Trusted in industries worldwide for powering sensitive measurement devices.

• Facilitates Accurate Monitoring: Helps improve the precision and reliability of machinery condition assessments.

Frequently Asked Questions (FAQ)

1. What is the nominal input voltage for the 115M7750-01 module?

   The module accepts a nominal 24 VDC input voltage.

2. What kind of output voltage does the module provide?

   It provides a specialized high voltage DC output suited for sensor excitation.

3. Is the module compatible with standard 3500 Series racks?

   Yes, it is designed for seamless integration into 3500 Series rack modules.

4. What protection features are included to safeguard the module?

   The module includes over-voltage protection and fault isolation mechanisms.

5. Can this module operate in harsh industrial environments?

   Yes, it is rated for operating temperatures between -40°C and 70°C.

6. What sensors are typically powered by this High Voltage DC PIM?

   Proximity probes and displacement sensors requiring high voltage excitation are commonly powered.

7. Does the module support hot-swapping?

   Yes, it supports hot-swapping following proper maintenance procedures.

8. How does the module ensure output voltage stability?

   It employs voltage regulation circuits specifically designed for high voltage DC output.

9. Can this module be used in redundant power systems?

   It can be integrated within redundant system architectures to enhance reliability.

10. Is the power output isolated to prevent interference with other modules?

    Yes, the design includes electrical isolation to minimize interference and noise.
