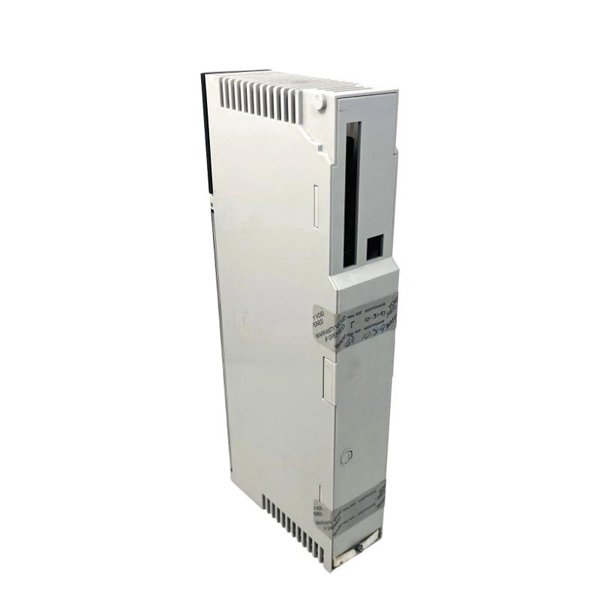

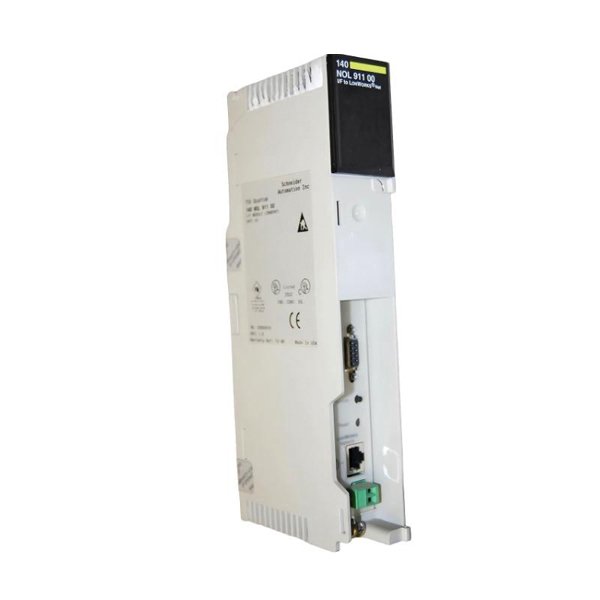

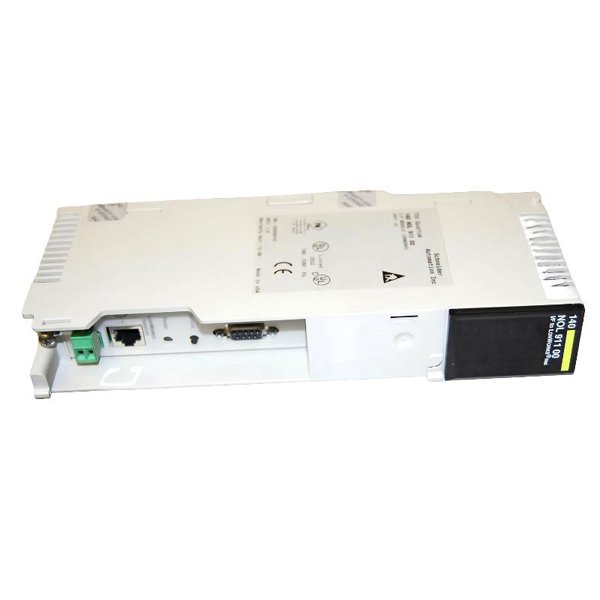

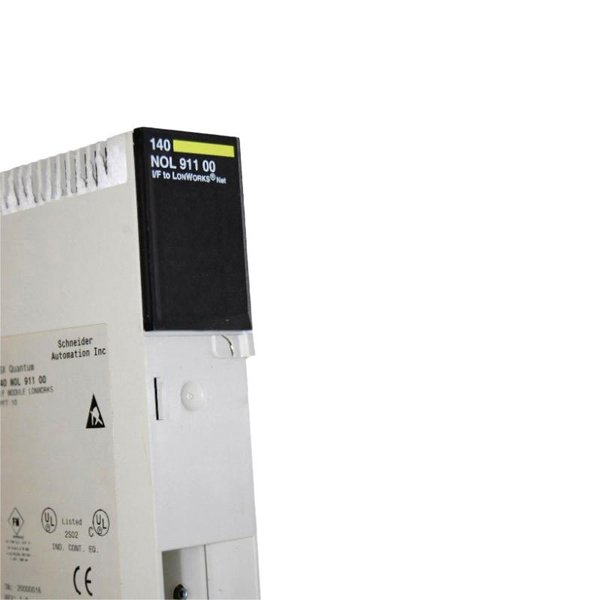

Schneider 140NOL91100 Logic Controller Module

The Schneider Electric 140NOL91100 is a high-reliability logic controller module designed for use within the Modicon Quantum series of programmable automation controllers. Specifically engineered to execute logic tasks at the I/O or communication level, this module operates as a local logic decision-maker rather than a full CPU. It is commonly referred to as a logic coprocessor or application-specific logic module that enhances the processing capacity of Quantum systems in distributed or modular configurations.

Its role is to offload processing tasks from the main CPU, manage time-critical functions locally, and increase the overall responsiveness of the automation system. Ideal for complex industrial environments, the 140NOL91100 is seamlessly integrated with other Quantum modules via the local backplane bus, providing deterministic behavior and support for custom logic execution.

This makes it a valuable asset for facilities requiring modularity, speed, and distributed control—such as manufacturing, petrochemical, power generation, and infrastructure systems.

Product Specifications

Product Applications

The 140NOL91100 Logic Controller Module is tailored for industries where deterministic control and modular processing are essential. It finds strong relevance in:

• Process Automation Systems: Executes local logic to reduce CPU workload in DCS environments.

• Water & Wastewater Treatment: Manages sub-system logic such as pump sequencing or level-based control.

• Food & Beverage Production: Handles real-time machine control and material handling logic.

• Transportation Systems: Enables modular control in tunnel automation and railway subsystems.

• Utilities & Power Distribution: Supports breaker control logic and local interlocks.

• Manufacturing Plants: Used in packaging, robotics, or repetitive control tasks that require fast logic decisions.

Product Advantages

• Distributed Logic Processing

  Offloads specific logic sequences from the main CPU to optimize performance and reduce scan time.

• Tight Integration with Quantum System

  Connects seamlessly with other I/O and communication modules through the Quantum backplane.

• Deterministic and Reliable Execution

  Executes real-time logic with consistent and predictable response times.

• Modular Design

  Supports scalable automation strategies by distributing processing across multiple logic modules.

• Low Power Consumption

  Efficient operation with minimal energy draw from the rack.

• Easy Maintenance and Status Monitoring

  Equipped with LED indicators for instant visual diagnostics and run status.

• Secure and Upgradeable

  Offers firmware upgrade capabilities for future enhancements without replacement.

Frequently Asked Questions (FAQ)

1. What is the primary function of the 140NOL91100 module?

It serves as a logic processor within a Quantum rack, handling specific control tasks independently of the main CPU.

2. Can this module operate without a Quantum CPU?

No, it requires a Quantum CPU for overall program management and communication coordination.

3. What software is used to program this module?

You can program it using Unity Pro or EcoStruxure Control Expert.

4. Does it store programs locally?

Yes, it includes non-volatile memory to retain logic code even during power loss.

5. Can it be used for safety-critical tasks?

It is not SIL-rated for safety applications but can perform fast control logic when used with certified safety systems.

6. How is the module powered?

It draws approximately 400 mA at 5 VDC directly from the Quantum backplane.

7. How do I know if the module is functioning correctly?

Front-facing LEDs indicate RUN, ERROR, and I/O statuses for easy troubleshooting.

8. What communication methods are supported?

Communication is handled internally via the Quantum backplane bus. It does not have external network ports.

9. Is the module hot-swappable?

While some operations may allow hot-swapping, it is recommended to power down the system during replacement for safety.

10. What type of logic programming is supported?

It supports ladder logic, structured text, and function block programming based on IEC 61131-3 standards.
