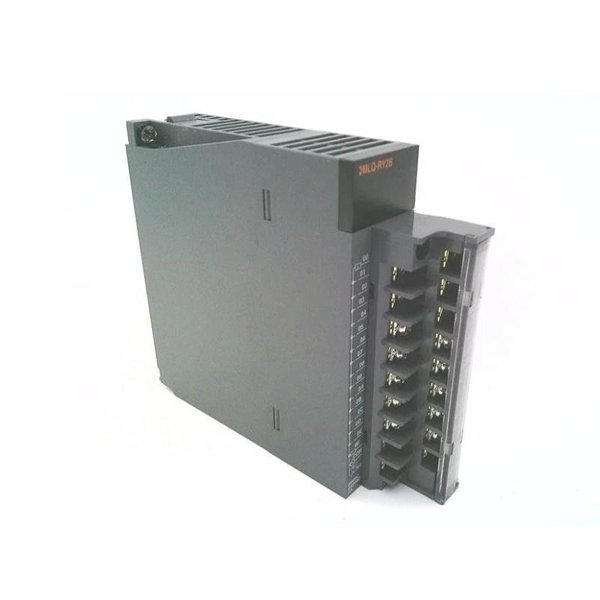

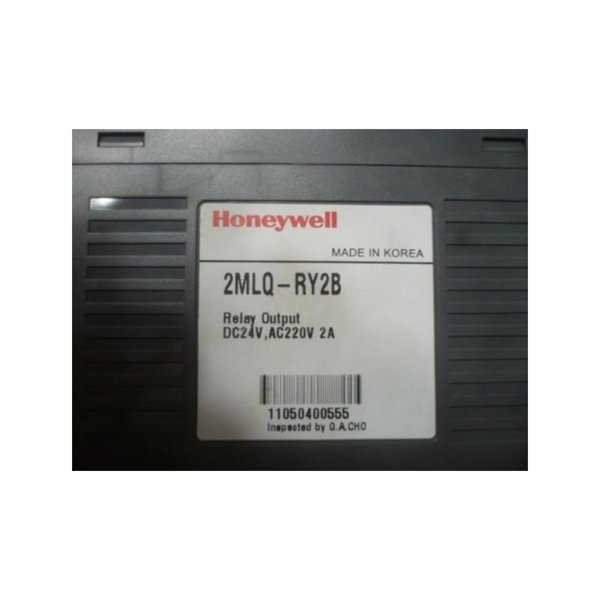

Honeywell 2MLQ-RY2B Digital Output Module

Name: Honeywell 2MLQ-RY2B Digital Output Module
Brand: Honeywell
Availability: InStock

Manufacturer:Honeywell

Product Number:2MLQ-RY2B

Product Type:Digital Output Module

Origin:USA

Dimensions:114 × 48 × 127 mm

Weight:0.17 kg

Views:52

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Contact Sales

Product Description

The Honeywell 2MLQ-RY2B is a 16-point digital relay output module belonging to the MasterLogic-200 PLC system. Designed for robust industrial control, it provides high-reliability relay outputs with enhanced protection through integrated surge absorbers (varistor and C.R. absorber). It supports switching for both AC and DC loads and is suitable for applications requiring electrical isolation and noise resistance.

Technical Specifications

Parameter	Specification
Model	2MLQ-RY2B
Output Points	16 relay outputs
Isolation Method	Relay isolation
Rated Load Voltage/Current	DC24V 2A (resistive), AC220V 2A (COSφ = 1)
Min. Load Voltage/Current	DC5V / 1mA
Max. Load Voltage/Current	AC250V, DC125V
Off Leakage Current	0.1mA (AC220V, 60Hz)
Max. On/Off Frequency	3,600 times/hour
Surge Absorber	Varistor (387~473V), C.R Absorber (IEC 61006-6-2)
Electrical Service Life	≥100,000 operations (at rated load)
Mechanical Service Life	≥20 million operations
Response Time (Off → On)	≤10 ms
Response Time (On → Off)	≤12 ms
Common Method	16 points / 1 COM
Current Consumption	500mA (All points ON)
Operation Indicator	LED (ON per channel)
External Connection	18-point terminal block (M3 × 6 screws)
Dimensions	114 × 48 × 127 mm
Weight	0.17 kg

Applications

General-purpose industrial digital control systems
HVAC and building automation
Process control and manufacturing
Electrical isolation-required environments
Control of solenoids, relays, small motors, and lamps

Advantages

High surge resistance with dual-type absorbers
Reliable operation under high switching cycles
Wide voltage and load compatibility
Clear LED indicators for output state monitoring
Modular design for flexible system integration

FAQ

Q1: What type of output does the 2MLQ-RY2B module provide?

A1: It provides 16-point relay outputs suitable for both AC and DC loads.

Q2: What is the maximum switching voltage supported?

A2: The module supports up to AC250V or DC125V.

Q3: Can this module be used for inductive loads?

A3: Yes, it includes surge protection suitable for inductive loads.

Q4: What is the module’s response time?

A4: ≤10 ms for Off → On and ≤12 ms for On → Off.

Q5: Is there any LED indication for channel activity?

A5: Yes, each channel includes an LED to indicate output status.

Q6: What type of surge protection is used?

A6: A combination of varistor (387–473V) and C.R. absorber compliant with IEC 61006-6-2.

Q7: What is the minimum allowable load?

A7: DC5V / 1mA.

Q8: Is the module hot-swappable?

A8: No, modules should be replaced with power off to ensure safety.

Q9: Does the module support output isolation?

A9: Yes, it uses relay isolation for channel separation and safety.

Q10: What’s the mechanical life expectancy of the relays?

A10: More than 20 million mechanical operations.
