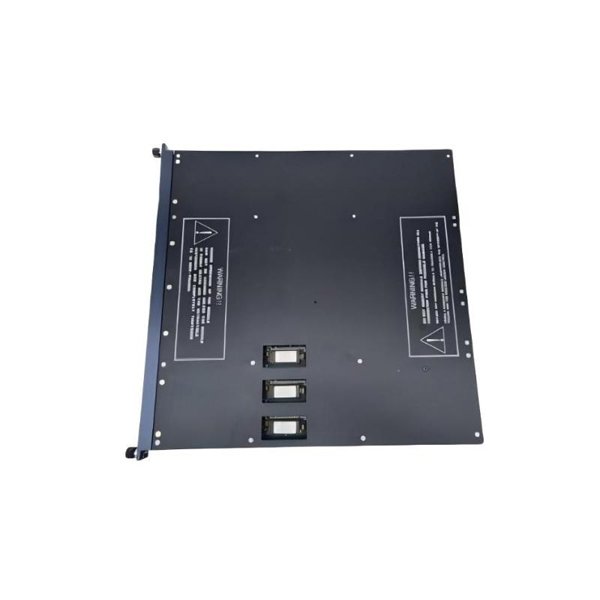

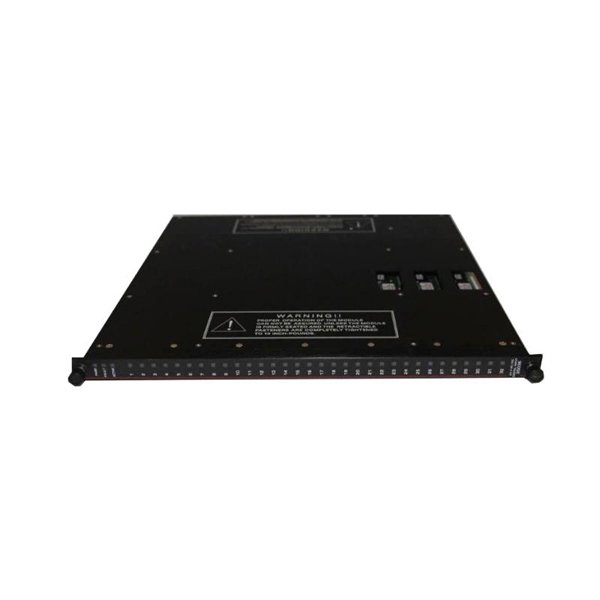

Triconex 3533E Digital Input Module

The Triconex 3533E Digital Input Module is a robust, high-integrity component designed for use in safety-critical and mission-essential control systems. As part of the Triconex safety platform developed by Schneider Electric, the 3533E plays a crucial role in gathering digital status signals from field devices and relaying them to the central control unit for real-time monitoring and decision-making.

What sets the 3533E apart is its compliance with IEC 61508 SIL 3 standards, ensuring it meets the highest levels of functional safety. The module is built to perform in harsh environments, withstanding high temperatures, vibration, humidity, and electrical interference. Additionally, its diagnostic features offer early fault detection and simplify maintenance routines, making it an ideal choice for facilities that require high availability and uninterrupted uptime.

Technical Specifications

Applications

The Triconex 3533E Digital Input Module is suitable for a wide range of industrial applications, including:​

• Oil and Gas: Monitoring and controlling drilling operations, pipeline systems, and refinery processes.

• Chemical Processing: Ensuring safe operation of reactors, mixers, and storage facilities.

• Power Generation: Managing turbine controls, boiler systems, and electrical distribution.

• Manufacturing: Automating assembly lines, material handling, and packaging systems.

• Water Treatment: Overseeing filtration, chemical dosing, and distribution networks.​

Advantages

• High Reliability: Designed for continuous operation in demanding environments.

• Safety Compliance: Meets SIL 3 standards, ensuring functional safety in critical applications.

• Robust Construction: Withstands harsh industrial conditions, including extreme temperatures and exposure to moisture.

• Flexible Integration: Compatible with various communication protocols and control systems.

• Compact Design: Space-saving form factor facilitates easy installation and maintenance.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the Triconex 3533E module?

   It serves as a digital input module, capturing and transmitting digital signals from field devices to the control system.

2. How many input channels does the 3533E support?

   The module supports 16 independent digital input channels.

3. Is the 3533E suitable for use in hazardous environments?

   Yes, it has an IP67 rating and is certified for use in safety-critical applications.

4. What communication interfaces are available on the 3533E?

   It supports RS-485 and Modbus RTU communication protocols.

5. Can the 3533E operate in extreme temperatures?

   Yes, it functions reliably within a temperature range of -40°C to +85°C.

6. What safety certifications does the 3533E hold?

   It is certified to SIL 3 standards under IEC 61508 and also holds UL, CE, and CSA certifications.

7. Is the module compatible with other Triconex systems?

   Yes, it integrates seamlessly with other components of the Triconex Safety Instrumented System.

8. What is the power supply requirement for the 3533E?

   It operates on a 24 VDC power supply.

9. Does the 3533E support remote diagnostics?

   Yes, it provides diagnostic information to the control system for monitoring and maintenance purposes.

10. What are the physical dimensions and weight of the module?

    The module measures 115 x 230 x 50 mm and weighs 1.851 kg.
