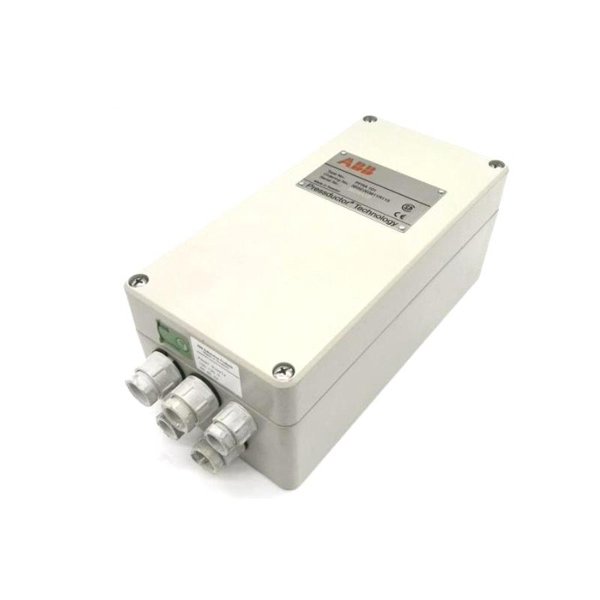

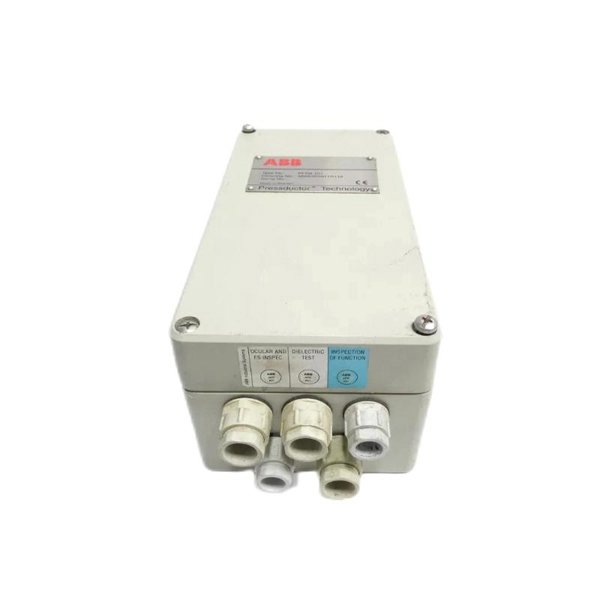

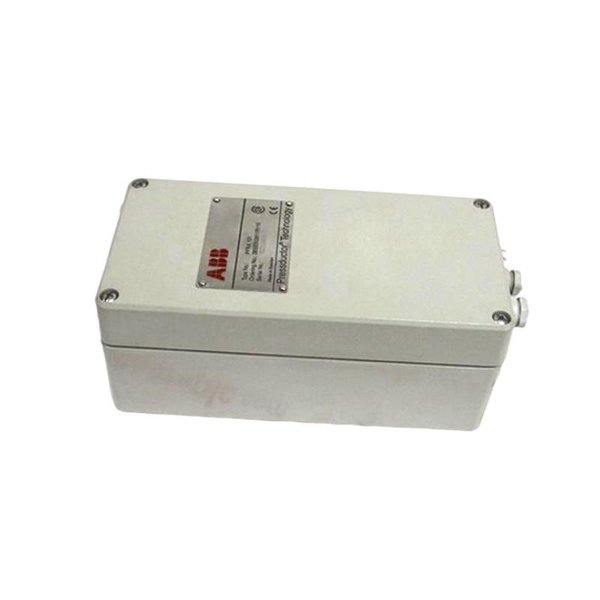

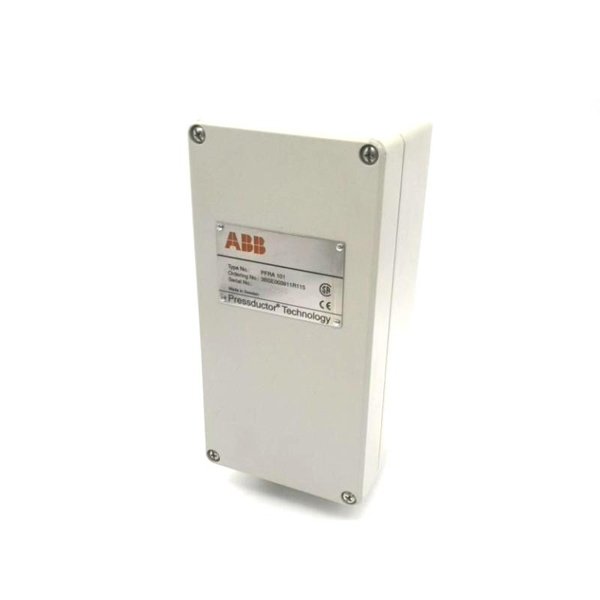

ABB PFRA101 3BSE003911R230 Press Control Unit

The ABB PFRA101 3BSE003911R230 is a Pressductor Control Unit designed to work seamlessly with ABB’s Pressductor load cells. This control unit is engineered to provide precise tension measurement and control in various industrial applications, ensuring optimal performance and reliability. Its robust construction and compatibility with 230V AC power supply make it suitable for demanding environments.​

Product Specifications

Applications

• Paper Industry: Ensuring consistent tension in paper machines and winders.

• Textile Industry: Maintaining proper tension in fabric processing and winding operations.

• Plastic and Rubber Processing: Controlling tension during extrusion and winding processes.

• Printing Industry: Managing web tension in printing presses for high-quality output.​

Advantages

• High Accuracy: Provides precise tension measurement, enhancing product quality.

• Robust Design: Built to withstand harsh industrial environments.

• Easy Integration: Compatible with existing ABB Pressductor load cells and systems.

• Reliable Performance: Ensures consistent operation, reducing downtime.

• Low Maintenance: Designed for long-term use with minimal maintenance requirements.​

Frequently Asked Questions (FAQ)

1. What types of ABB Pressductor load cells are compatible with the PFRA101 unit?

The PFRA101 is designed to work with PFTL101A series Pressductor load cells, including models ranging from 2 kN to 200 kN. Compatibility is factory-tested to ensure accurate tension control.

2. Does the PFRA101 require any special setup or calibration before use?

Yes, proper calibration is essential. The unit includes adjustment functions for zero balancing and gain settings, which must be fine-tuned during commissioning to match the connected load cell and application.

3. What kind of output signals does the PFRA101 provide for integration into control systems?

The unit typically offers standard analog outputs such as 0–10 V or 4–20 mA, depending on configuration, allowing easy integration into DCS, PLC, or standalone tension control loops.

4. Is there a built-in display or user interface on the PFRA101?

No, the PFRA101 does not include a built-in display. Configuration is performed via terminals or remote interface modules, and signal values must be monitored through the connected control system.

5. What are the installation requirements for the PFRA101 regarding enclosure or panel space?

While the exact dimensions are not specified publicly, the unit is panel-mountable and typically requires a standard 19-inch rack or similar enclosure with adequate ventilation. Always consult ABB technical documents for cut-out and clearance specifications.

6. Can the PFRA101 operate in high-vibration or electrically noisy environments?

Yes, the PFRA101 is designed with industrial-grade shielding and robust circuitry to handle electromagnetic interference (EMI) and mechanical vibrations commonly found in manufacturing plants.

7. How does the PFRA101 handle signal drift or temperature-related fluctuations?

The unit includes internal temperature compensation and signal filtering features to ensure stable readings, even when operating under fluctuating environmental conditions.

8. Is redundant power supply support available in the PFRA101 design?

No, the PFRA101 is designed for a single 230V AC input. Users seeking redundancy must implement external dual-power modules or uninterruptible power systems (UPS).

9. What kind of maintenance does the PFRA101 require during its operational life?

The unit is largely maintenance-free under normal conditions. However, it’s recommended to inspect wiring terminals annually, verify calibration, and ensure no corrosion or physical damage to connectors.

10. Can firmware or functional updates be applied to the PFRA101?

No firmware update capability is provided. The PFRA101 is a hardware-based analog controller, so any changes to functionality require hardware replacement or upgrading to newer ABB digital units.
