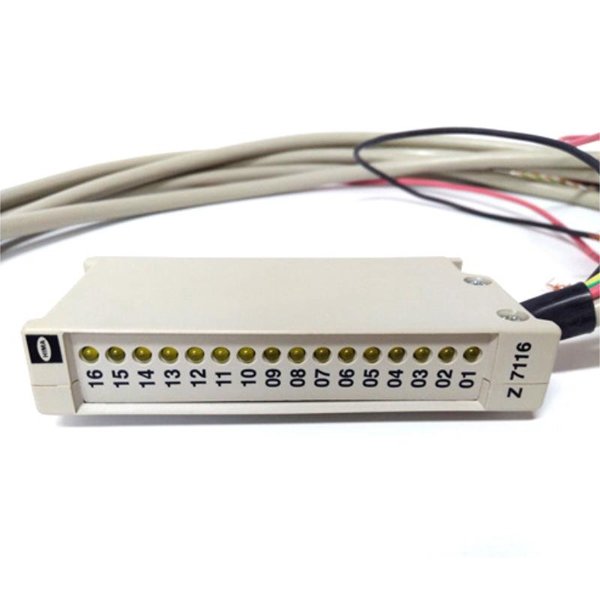

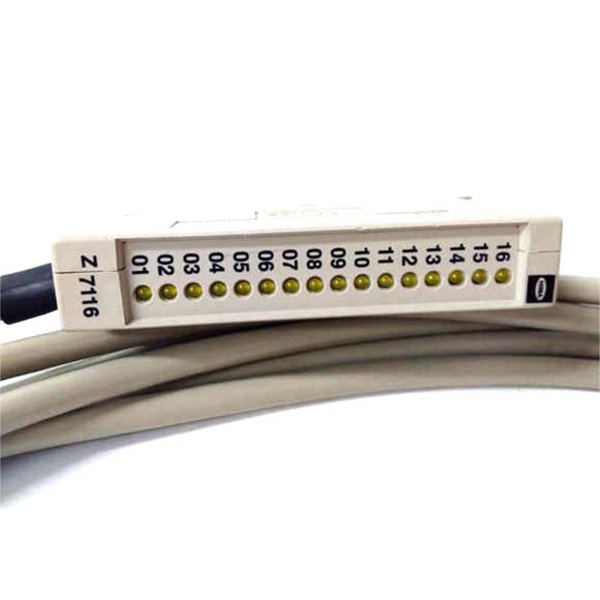

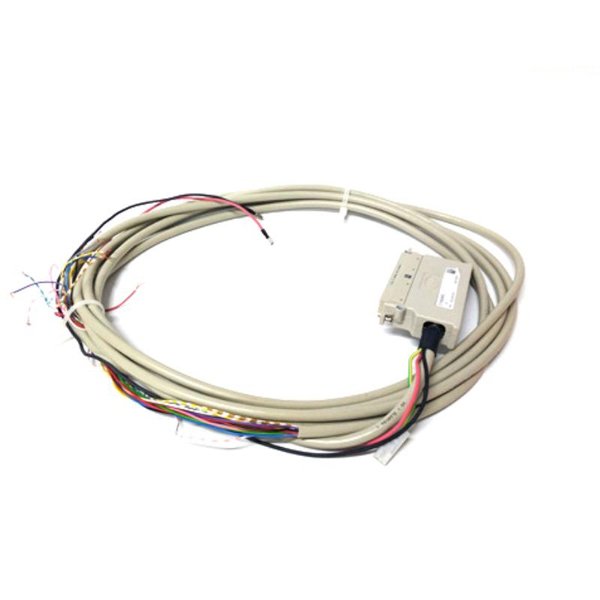

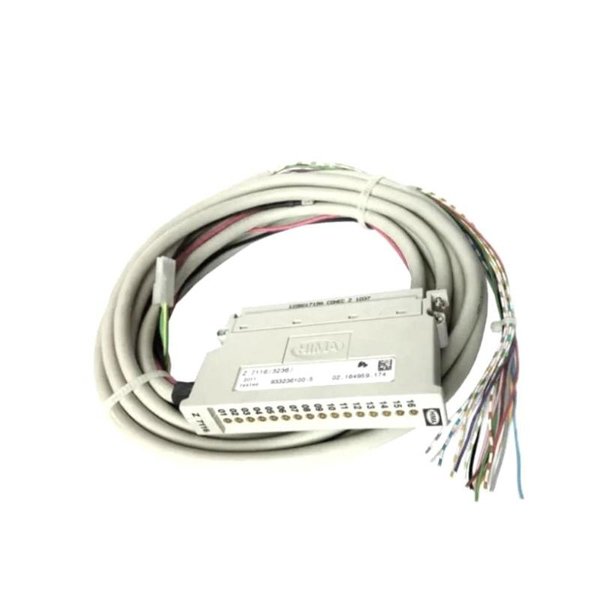

Hima Z7116/3236/C15 Cable Plug

The HIMA Z7116/3236/C15 Cable Plug is a high-reliability industrial connection component designed for use within HIMA’s safety and automation systems. Specifically engineered for compatibility with HIMA’s HIMax and HIQuad platforms, this cable plug plays a critical role in secure electrical interfacing, providing a robust and dependable link between safety modules and field devices.

This model ensures both signal integrity and operational continuity, which are vital in mission-critical applications. With a focus on long-term stability, resistance to mechanical stress, and ease of installation, the Z7116/3236/C15 has become a staple in industries requiring the highest levels of system safety and performance, such as chemical plants, oil refineries, and nuclear facilities.

Product Specifications

Product Applications

The HIMA Z7116/3236/C15 Cable Plug is used in demanding industrial environments where safety, reliability, and long-term operation are critical. It is most commonly applied in:

• Process Automation Systems – Ensuring secure data and power transmission in HIMA HIMax and HIQuad modules.

• Oil & Gas Platforms – Harsh environments requiring vibration-resistant connections.

• Chemical Manufacturing – Safe interface of I/O modules with hazardous field instruments.

• Power Plants – High-reliability system connectivity in turbine, boiler, or grid applications.

• Pharmaceutical Plants – Supporting strict control protocols with validated connections.

• Transportation Infrastructure – Integration in safety-critical railway and airport automation.

Product Advantages

• Optimized for Safety Systems: Specifically developed for use with HIMA safety PLCs, ensuring precise compatibility and performance.

• Reliable Contact Design: Durable contact materials and gold-plated pins minimize resistance and contact wear over time.

• Fast Installation: Modular plug design with locking mechanism simplifies setup and maintenance tasks.

• Compact Form Factor: Space-saving dimensions support dense installations in control cabinets.

• Shock and Vibration Resistance: Built to endure the stresses of high-vibration environments without signal loss.

• Compliant with Global Standards: Meets CE and RoHS regulations for industrial electrical devices.

• Thermal Stability: Wide operational temperature range allows use in extreme climates.

Frequently Asked Questions (FAQ)

1. What is the Z7116/3236/C15 Cable Plug used for?

   It connects field cables to HIMA’s safety modules, ensuring stable and reliable signal transmission.

2. Is this plug compatible with all HIMA systems?

   It is mainly used with HIMax and HIQuad systems but may support other HIMA platforms depending on the wiring scheme.

3. What type of cables can be used with this plug?

   Multicore industrial field cables with appropriate pin assignments and insulation are typically used.

4. Does it require special tools for installation?

   No special tools are needed; standard screwdrivers and wire preparation tools suffice.

5. Is the connector reusable?

   Yes, it can be reused, provided it has not been physically damaged or degraded.

6. What is the maximum current it can handle?

   Each contact is rated for up to 5A, depending on ambient conditions and usage.

7. Can this plug be used in outdoor environments?

   Only if installed within a weatherproof or IP-rated enclosure, as the plug itself is IP20 rated.

8. Does it support hot-swapping?

   No, the plug is not designed for live disconnection under load; system power should be turned off before removal.

9. How do I identify the pin layout for installation?

   A wiring diagram specific to the HIMA system or provided documentation should be consulted.

10. What makes it different from standard industrial cable plugs?

    Its design is purpose-built for integration into HIMA’s safety system environment, offering enhanced compatibility and long-term operational reliability.
