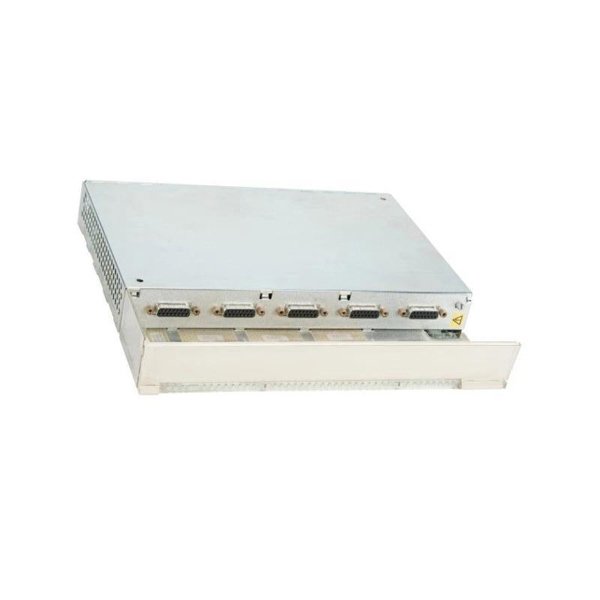

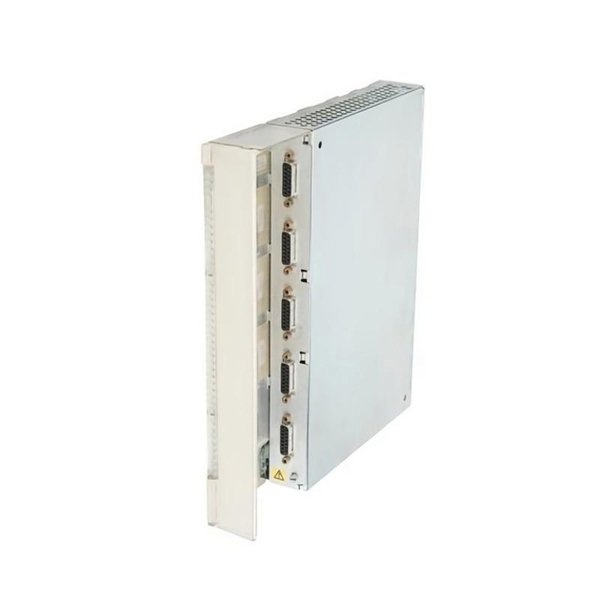

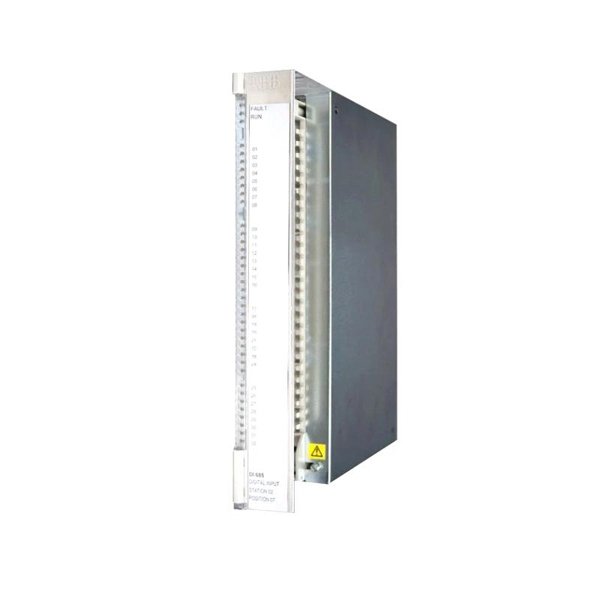

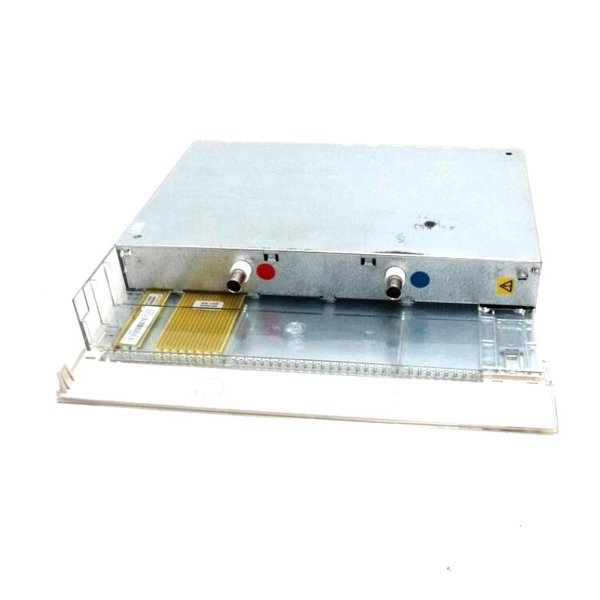

ABB DI685 3BDS005833R1 Digital Input Module

The ABB DI685 (3BDS005833R1) is a digital input module designed for use in ABB’s AC 800M control system, part of the 800xA DCS (Distributed Control System) platform. This module plays a critical role in capturing binary signals from field devices like push buttons, proximity sensors, limit switches, and other industrial digital input sources.

With 32 isolated digital input channels, the DI685 provides reliable and fast data acquisition for control, interlocking, and safety functions. The module supports both positive and negative logic configurations and is engineered to operate under the harsh environmental conditions typical of process and factory automation.

Designed with robust diagnostics, high channel density, and integration-ready connectivity, the DI685 is ideal for complex industrial environments requiring scalable, real-time digital input capabilities.

Product Specifications

Product Applications

The ABB DI685 is utilized in a wide range of industrial applications that require fast, safe, and reliable detection of digital signals:

• Process Automation: Monitoring valve position switches, emergency shutdowns, and discrete sensors in refineries, chemical plants, and power plants.

• Factory Automation: Integration into packaging lines, robotic cells, conveyor systems, and assembly stations.

• Utilities and Infrastructure: Monitoring of field contacts in substations, water treatment facilities, and building automation systems.

• Safety Systems: Ideal for interlock inputs and critical fault signal acquisition in SIL-rated systems.

• Mining and Metals: Used in heavy-duty control panels to read sensors, gates, or limit switches.

• Marine Automation: For shipboard monitoring systems with high channel density requirements and rugged reliability.

Product Advantages

• High Channel Density: 32 channels in a single module reduce rack space and wiring complexity.

• Flexible Logic Configuration: Each input can be set for positive or negative logic as per field wiring.

• Robust Diagnostics: Channel-level diagnostics simplify fault detection and troubleshooting.

• Hot Swappable: Allows maintenance without system shutdown when used with supported base units.

• Backplane Integration: Fully compatible with ABB S800 I/O and AC 800M controller platforms.

• Wide Operating Range: Designed for -25°C to +70°C, making it suitable for extreme environments.

• Industry Certifications: Compliant with global standards for safety, reliability, and interoperability.

• Simplified Wiring: Grouped channel terminals for easier and faster installation.

• Proven Field Performance: Trusted in large-scale 24/7 industrial automation installations globally.

• Software Integration: Seamless integration with ABB’s Control Builder and 800xA engineering tools.

Frequently Asked Questions (FAQ)

1. Q: How many digital signals can the DI685 handle?

   A: The DI685 supports 32 independent digital inputs.

2. Q: Is the module compatible with ABB’s AC 800M controller?

   A: Yes, it’s specifically designed for the AC 800M and integrates over the S800 I/O bus.

3. Q: Can the inputs detect both logic high and logic low signals?

   A: Yes. Inputs are configurable for positive or negative logic based on the wiring.

4. Q: Does the module support hot swapping?

   A: Yes, provided it is used with base units that allow it, like TU840 or TU841.

5. Q: What happens if an input wiring fault occurs?

   A: The module provides diagnostic feedback through status LEDs and the system software.

6. Q: Can I mix DI685 modules with analog modules in the same rack?

   A: Absolutely. The S800 I/O system allows mixing of digital and analog modules.

7. Q: What’s the minimum signal voltage required for a logic HIGH?

   A: The input voltage should be at least 18 VDC to register as HIGH.

8. Q: Does the module require an external power supply?

   A: Field power must be supplied externally, while module logic is powered through the bus.

9. Q: Can this module be used in hazardous areas?

   A: Not directly, but it can be used with appropriate isolation and barriers in classified zones.

10. Q: What kind of terminal base should I use with this module?

    A: Recommended bases include TU840, TU841, or similar from ABB’s terminal base range.
