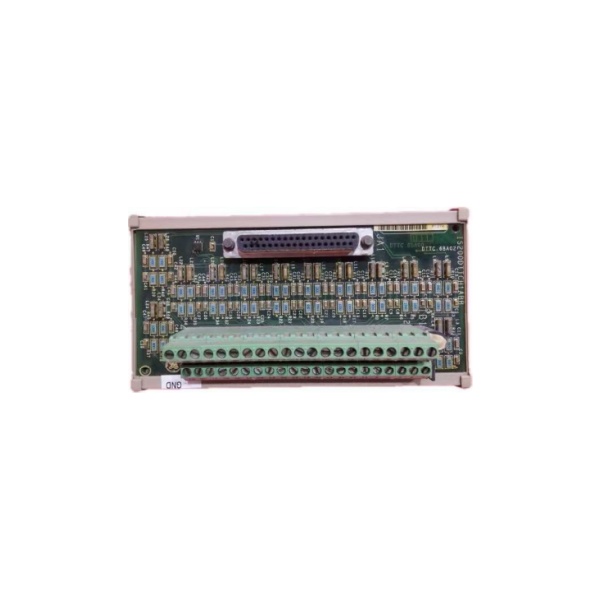

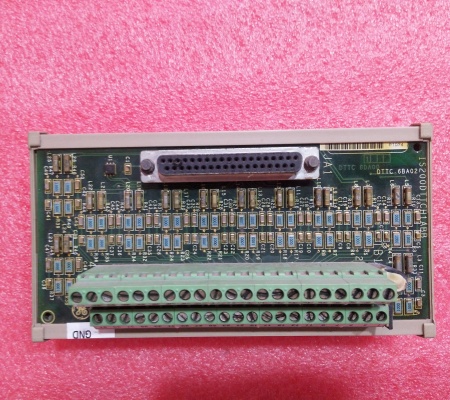

General Electric IS200DTTCH1A Thermocouple Terminal Board

GE IS200DTTCH1A Thermocouple Terminal Board is a thermocouple interface board used in the system. It provides a safe and reliable connection between thermocouple sensors and control systems, enabling the system to collect and process temperature data in real time for monitoring and control purposes.

The IS200DTTCH1A serves as an interface between thermocouple sensors and control systems. It provides terminals and wiring connections to facilitate the connection of various types of thermocouples.

Thermocouples are widely used in industrial applications to measure temperature due to their ruggedness and accuracy at high temperatures.

The IS200DTTCH1A helps ensure that thermocouple signals are properly routed and isolated before being sent to the main processing board. It also includes cold junction compensation for accurate measurements. Ambient temperature at the correctable junction point can be compensated.

Frequently asked questions about the product are as follows:

-What types of thermocouples does the IS200DTTCH1A support?

The IS200DTTCH1A supports a variety of thermocouples including K-type, J-type, T-type, E-type, etc.

-How many thermocouples can be connected to the IS200DTTCH1A?

The IS200DTTCH1A can usually support multiple thermocouple inputs, and each channel is designed to handle one thermocouple input.

-Can the IS200DTTCH1A be used in systems other than GE Mark VIe or Mark VI?

The IS200DTTCH1A is designed for use with GE Mark VIe and Mark VI control systems. It can also be integrated into other systems using the VME interface.
