ABB PFTL201C-10KN 3BSE007913R0010 Load Cells

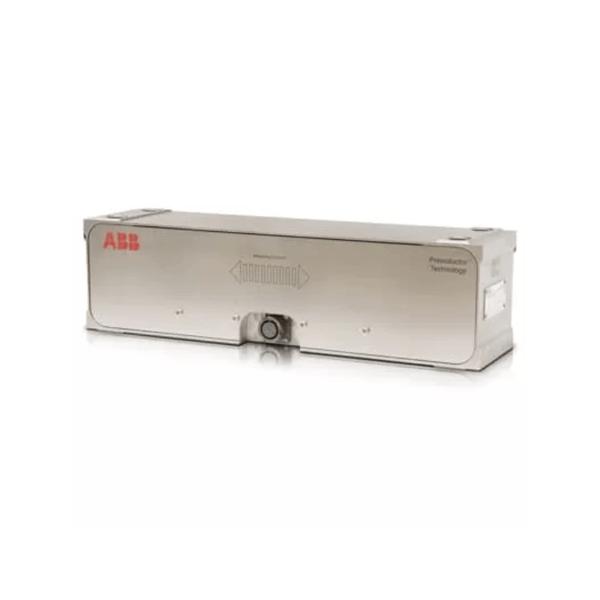

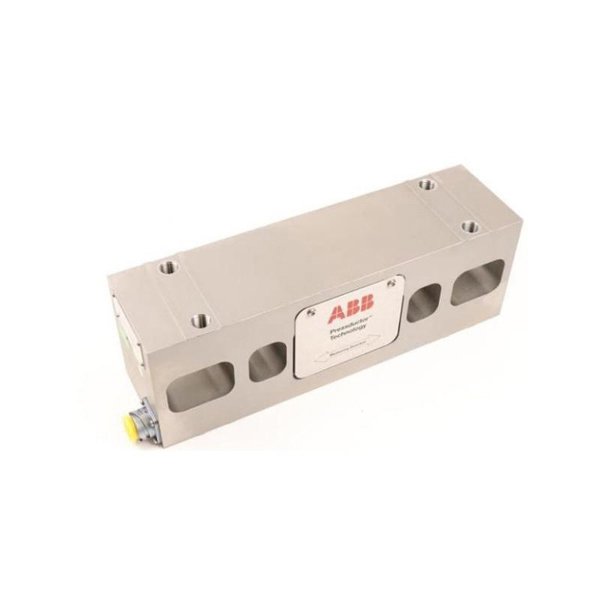

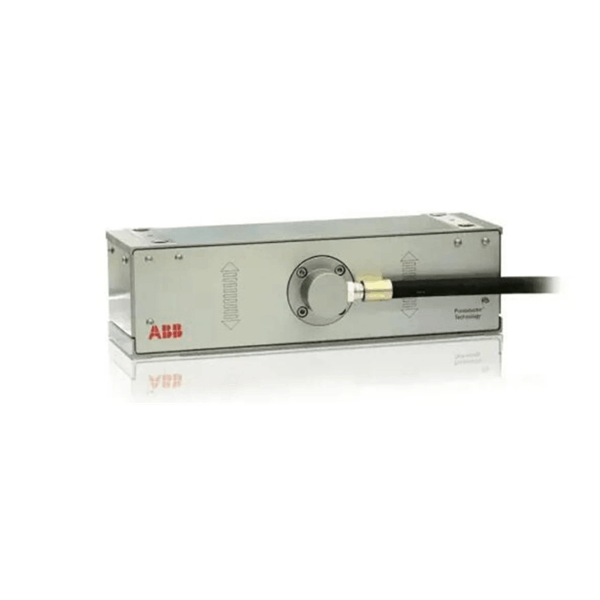

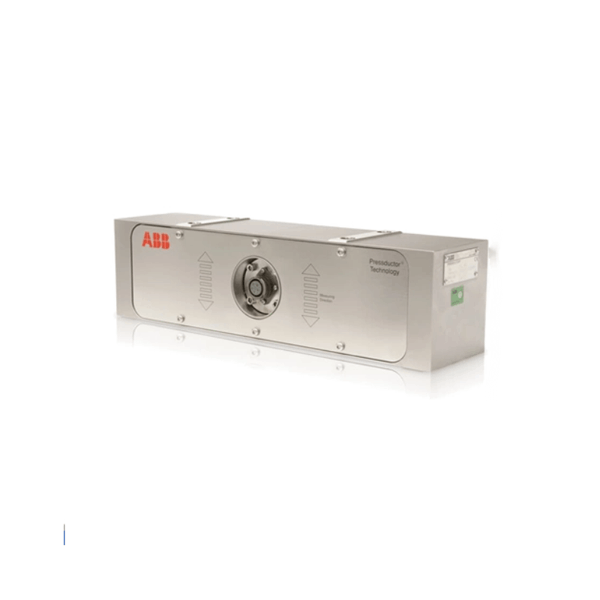

Built with ABB’s patented Pressductor technology, the PFTL201C-10KN converts mechanical force into an electrical signal using a unique magnetoelastic principle. It ensures unmatched signal stability and mechanical robustness, even under extreme overload or harsh environmental conditions. With a nominal force capacity of 10 kN, this transducer is widely applied in both new installations and upgrades of existing measurement systems.

Product Features and Advantages

• True Non-Contact Measurement: Employs ABB’s Pressductor principle which eliminates frictional wear and extends operational life.

• Exceptional Overload Capacity: Can withstand up to 500% overload without compromising accuracy.

• Robust Stainless-Steel Housing: Ensures long-term durability even in chemically aggressive or high-vibration environments.

• High Measurement Accuracy: Low temperature drift and excellent linearity provide consistent and reliable results.

• Simple Integration: Designed for seamless integration with ABB control systems like the Advant, Freelance, and AC 800M series.

• Maintenance-Free: No moving parts, no recalibration needed under normal operation.

• EMC Compliant: Designed for high electromagnetic immunity, making it suitable for modern electrical environments.

Technical Specifications

Product Applications

• Steel and Metal Rolling Mills: For measuring and controlling rolling force.

• Paper and Pulp Industry: Used in web tension control during winding and unwinding.

• Plastic Film Manufacturing: Maintains consistent tension in high-speed processes.

• Textile Machinery: Enables precision tension control in yarn and fabric handling.

• Rubber Processing: Controls press force and sheet tensioning in rubber production.

• Converting Applications: Ensures product quality by monitoring web force during slitting or laminating.

Installation Instructions

1. Pre-Installation Check

   • Ensure the mounting surface is flat, clean, and strong enough to support the transducer.

   • Verify electrical integrity of grounding and shielding components.

2. Mechanical Mounting

   • Use M12 or equivalent-grade bolts for secure flange mounting.

   • Do not apply force to the sensor body during installation.

3. Electrical Connection

   • Connect the shielded cable to the control unit or data acquisition module.

   • Maintain correct polarity and ensure signal line isolation.

4. Calibration (If Required)

   • The sensor comes pre-calibrated. However, system-level calibration may be needed using known reference loads.

5. Testing

   • Run diagnostics to verify signal response and system integration.

6. Maintenance

   • No routine maintenance required. Inspect connections and housing condition annually.
