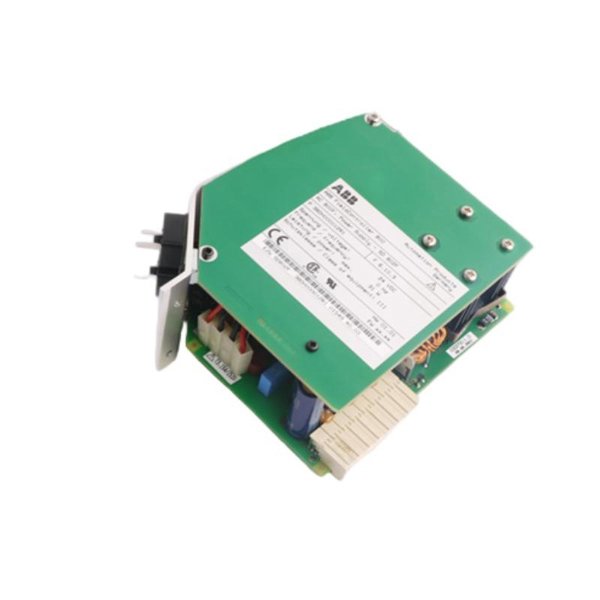

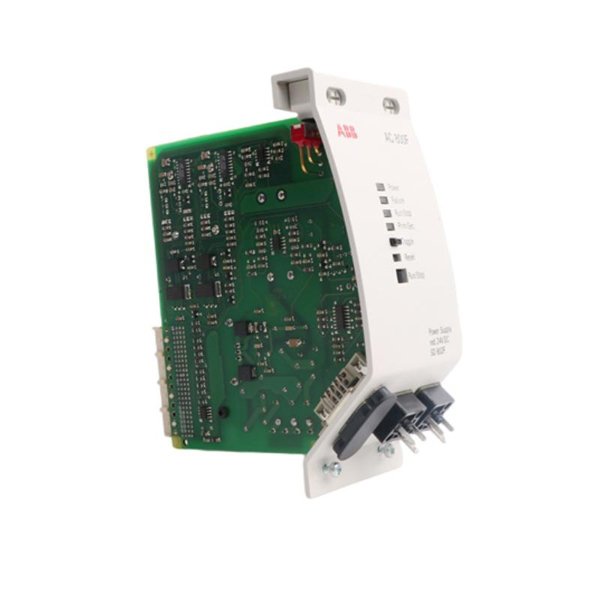

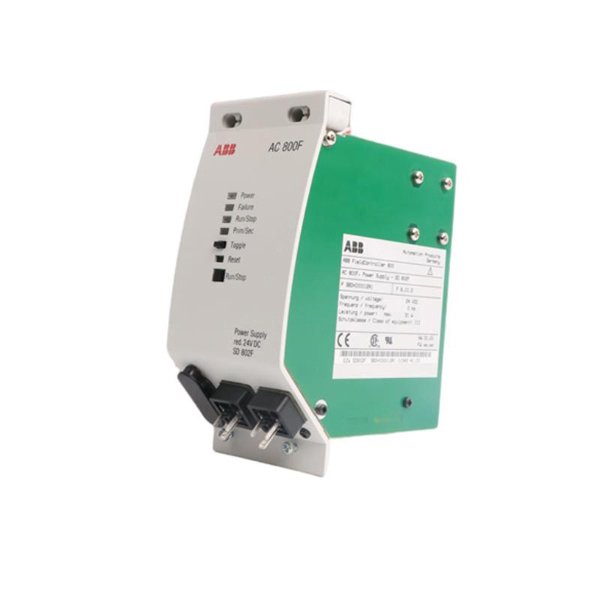

ABB SD802F 3BDH000012R1 power supply

The ABB SD802F 3BDH000012R1 is a high-performance industrial module that forms part of ABB’s comprehensive automation and control solutions. Designed to meet the needs of complex industrial applications, it serves as a critical component in ensuring smooth operations, stability, and reliability. This model is used across various industries, including manufacturing, power generation, and process control.

Technical Specifications

Below is a detailed specification table for the ABB SD802F 3BDH000012R1:

Product Applications

The ABB SD802F 3BDH000012R1 is widely used in industries such as:

• Manufacturing Automation: To monitor and control production lines, ensuring optimal performance.

• Power Generation: Used for automated control of processes in power plants.

• Process Control: Employed in managing complex processes such as chemical production and water treatment.

• Building Management Systems (BMS): Integrating it with HVAC, lighting, and security systems.

Its versatility makes it a valuable tool for any system requiring precise control, monitoring, and automation.

Product Advantages

• Reliability: The ABB SD802F offers unmatched reliability, ensuring long-lasting performance in critical industrial environments.

• Flexibility: Capable of supporting a wide range of I/O configurations and communication protocols, such as PROFIBUS and Modbus TCP, making it adaptable to various applications.

• High Performance: With a robust operating range from -20°C to 60°C and IP20 protection, it performs well in harsh environments.

• Ease of Integration: The module is designed to easily integrate with existing systems, reducing setup time and operational disruptions.

• Energy Efficiency: Designed for low power consumption, optimizing energy use in industrial processes.

FAQs (Frequently Asked Questions)

1. What is the primary use of the ABB SD802F 3BDH000012R1?

   • The ABB SD802F is primarily used for industrial automation, providing reliable control and monitoring of systems in various industries such as manufacturing, power generation, and process control.

2. What are the input/output capabilities of this model?

   • The SD802F supports both digital and analog I/O, allowing it to interface with a wide range of sensors, actuators, and other devices.

3. How can I integrate the ABB SD802F with other systems?

   • The SD802F supports common industrial communication protocols such as PROFIBUS and Modbus TCP, making integration with other control systems straightforward.

4. Is this model suitable for outdoor use?

   • No, the SD802F has an IP20 rating, which protects it from dust but does not make it waterproof or suitable for outdoor use.

5. What is the operating temperature range of the SD802F?

   • The module operates effectively between -20°C and 60°C, making it suitable for use in a wide range of industrial environments.

6. What are the weight and dimensions of the ABB SD802F?

   • The module has a weight of 0.44 kg and dimensions of 66 x 125 x 155mm.

7. What kind of protection does the ABB SD802F offer?

   • The module offers IP20 environmental protection, meaning it is protected against dust but not against water.

8. Can the ABB SD802F be used in a harsh industrial environment?

   • Yes, with its high durability and wide operating temperature range, it is designed to perform reliably in challenging industrial environments.

9. What communication protocols are supported by the ABB SD802F?

   • The SD802F supports PROFIBUS and Modbus TCP, both widely used communication protocols in industrial automation systems.

10. How do I install the ABB SD802F?

    • Installation involves mounting the module on a DIN rail, connecting the input/output wiring, and configuring the communication settings according to your system requirements.
