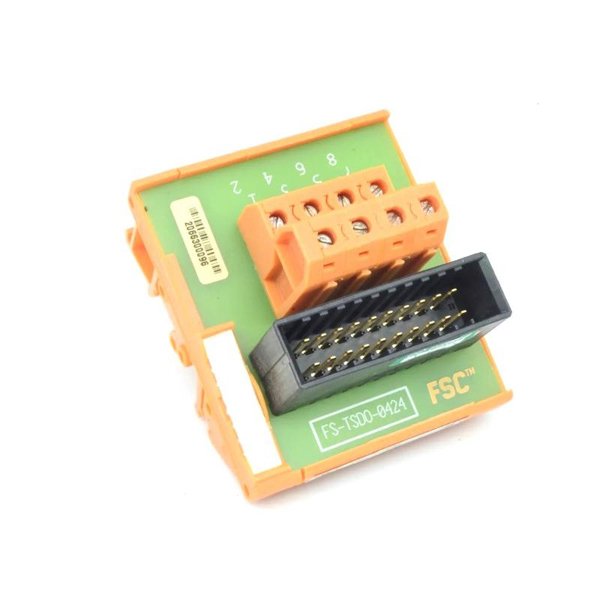

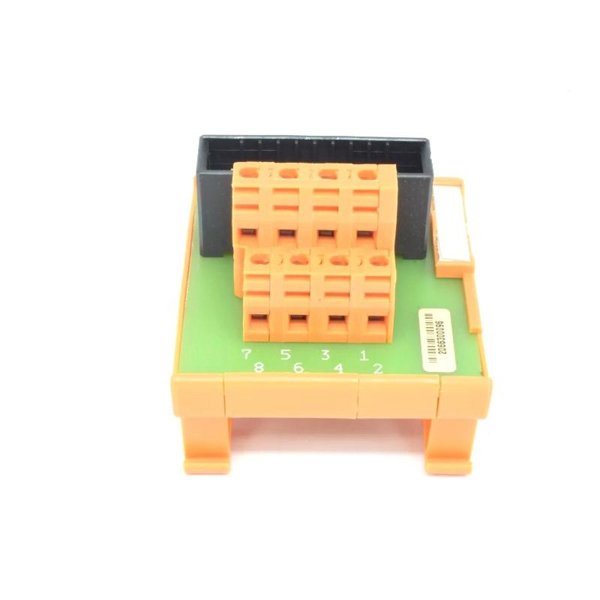

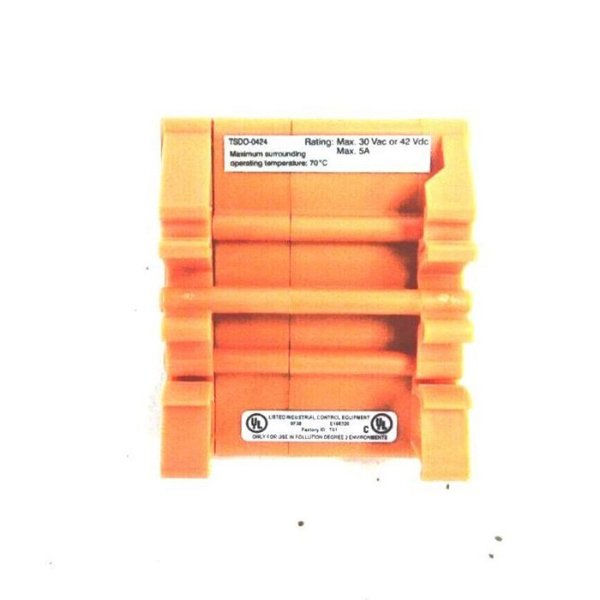

Honeywell FC-TSDO-0424 Safe Digital Output FTA

The Honeywell FC-TSDO-0424 is a Safe Digital Output Field Terminal Assembly (FTA) designed specifically for use with Honeywell’s Safety Manager systems. It provides a high-integrity and safe digital output interface for field devices. Each FTA is engineered to support safety-critical applications in process automation environments, ensuring reliable signal distribution to final control elements such as relays or actuators in safety instrumented systems (SIS).

Technical Specifications

Applications

• Safety Instrumented Systems (SIS)

• Emergency Shutdown Systems (ESD)

• Burner Management Systems (BMS)

• Fire and Gas Systems (F&G)

• High-integrity Pressure Protection Systems (HIPPS)

• Critical output signal interface for field actuators or relays

• Petrochemical, oil & gas, power generation, and chemical processing plants

Advantages

• Certified for use in SIL3 safety applications

• Compact size optimizes panel space

• Channel-to-channel isolation enhances fault tolerance

• Designed specifically for high-integrity output interfacing

• Quick and reliable field wiring with screw terminals

• Seamless integration with Honeywell Safety Manager systems

• High operational reliability in harsh industrial environments

Frequently Asked Questions (FAQ)

Q1: What type of output does the FC-TSDO-0424 support?

A1: It supports 24 digital output channels, suitable for actuating field devices like relays or solenoids.

Q2: Is the FC-TSDO-0424 compatible with standard Honeywell systems?

A2: Yes, it is designed specifically for Honeywell Safety Manager systems.

Q3: Can this module be used in SIL3 applications?

A3: Yes, the module is certified for use in SIL3-rated safety applications.

Q4: What is the operating temperature range of this device?

A4: It operates within -20°C to +70°C.

Q5: How many outputs are available on the FTA?

A5: There are 24 individually isolated digital output channels.

Q6: What field connection type is supported?

A6: The device uses screw terminals for secure field wiring.

Q7: Is it DIN rail mountable?

A7: Yes, it supports standard DIN rail mounting.

Q8: What certifications does this module hold?

A8: It is certified for CE, ATEX, and SIL3 standards.

Q9: Is the module protected against temperature extremes during storage?

A9: Yes, it has a storage temperature range from -40°C to +85°C.

Q10: Can this module be used in harsh industrial environments?

A10: Yes, it is built to endure challenging industrial conditions.
