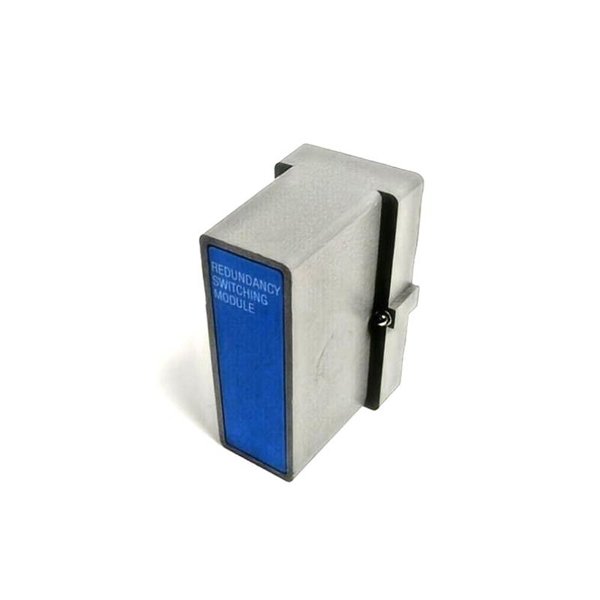

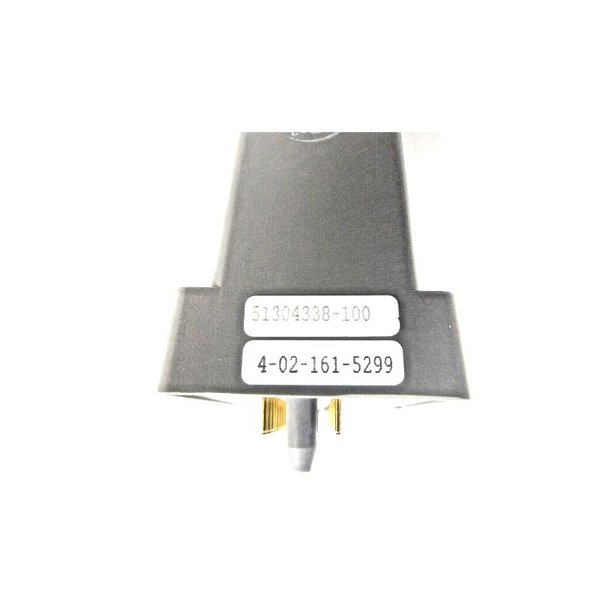

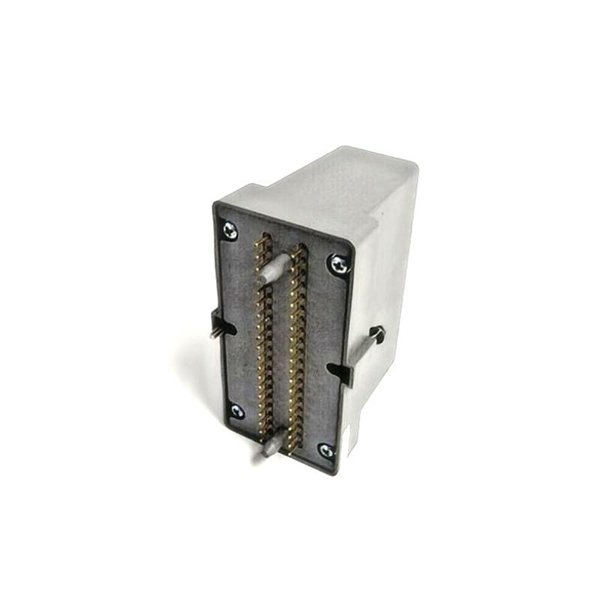

Honeywell 51304338-100 Redundancy Switching Module

The Honeywell 51304338-100 Redundancy Switching Module is engineered to enhance system reliability by providing seamless switching between primary and backup controllers in critical industrial automation systems. Designed for integration with Honeywell’s TDC 3000 and Experion PKS systems, this module ensures uninterrupted operation by automatically transferring control to a standby unit in the event of a primary controller failure.​

Its robust design and advanced features make it suitable for applications where system uptime is paramount, such as in oil and gas, chemical processing, power generation, and other process industries.​

Product Specifications

Product Applications

The 51304338-100 module is ideal for various industrial applications requiring high system availability and reliability:​

• Oil & Gas: Ensuring continuous operation of drilling and refining processes.

• Chemical Processing: Maintaining uninterrupted control in chemical production.

• Power Generation: Providing reliable control in power plants.

• Pharmaceutical Industry: Ensuring consistent environmental control in manufacturing.

• Water Treatment: Maintaining continuous monitoring and control of water treatment processes.

• Food & Beverage: Ensuring uninterrupted operation in food processing and packaging.​

Product Advantages

• Automatic Redundancy Switching: Seamlessly transitions control to a standby unit upon primary controller failure.

• Enhanced System Reliability: Minimizes downtime and maintains continuous operation.

• Compact Design: Space-saving form factor allows for easy integration into existing systems.

• Wide Operating Range: Performs reliably across various environmental conditions.

• Compliance with Standards: Meets international safety and performance standards.

• Ease of Installation: Supports DIN rail and panel mounting for flexible installation options.​

FAQ

1. What is the primary function of the 51304338-100 module?

   It provides automatic switching between primary and backup controllers to ensure continuous system operation.

2. Which systems are compatible with this module?

   It is designed for use with Honeywell’s TDC 3000 and Experion PKS systems.

3. What are the power requirements for the module?

   The module operates on a 24 V DC power supply.

4. Can the module operate in harsh environmental conditions?

   Yes, it functions reliably within a temperature range of 0°C to +60°C and 5% to 95% relative humidity.

5. How is the module mounted?

   It can be mounted on a DIN rail or directly onto a panel.

6. Does the module comply with international standards?

   Yes, it meets CE, UL, and CSA standards.

7. What are the dimensions and weight of the module?

   The module measures 25 x 239 x 159 mm and weighs 0.58 kg.

8. Is the module suitable for use in safety-critical applications?

   While it enhances system reliability, suitability for safety-critical applications should be evaluated based on specific system requirements.

9. What is the warranty period for the module?

   Honeywell provides a 12-month warranty for this module.

10. Can the module be integrated into existing systems without significant modifications?

    Yes, its design allows for easy integration into existing Honeywell control systems.
