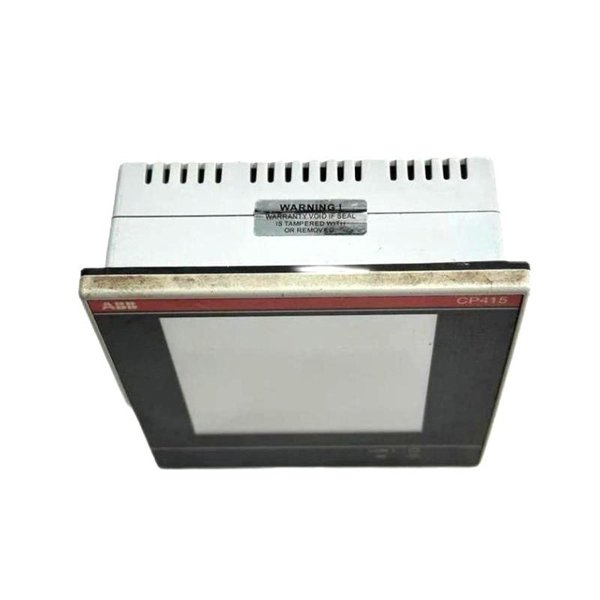

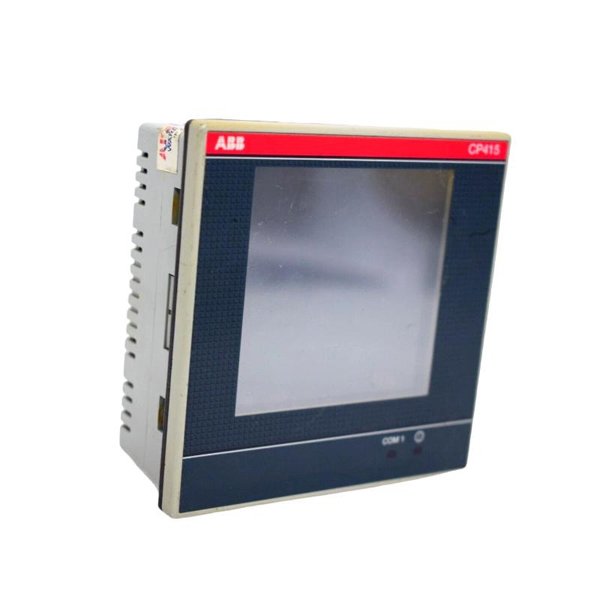

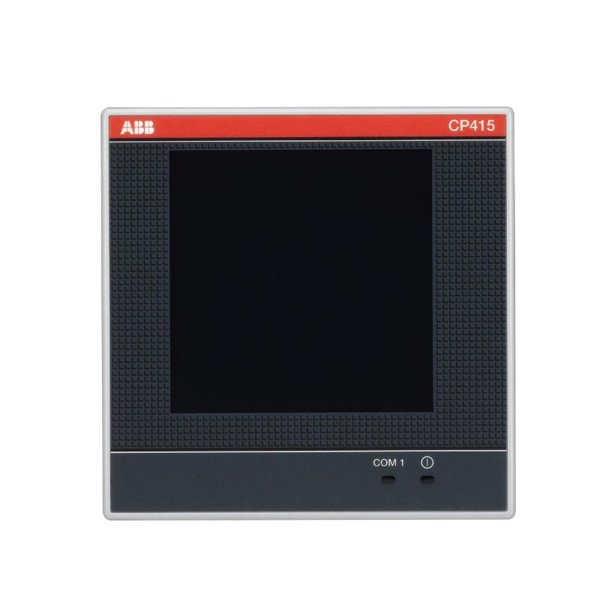

ABB CP415M 1SBP260191R1001 Control Panel
Manufacturer:ABB
Product Number:CP415M 1SBP260191R1001
Product Type:Control Panel
Origin:Sweden
Dimensions:96 x 96 x 41 mm
Weight:0.21 kg
Views:44
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The ABB CP415M 1SBP260191R1001 Control Panel is a compact and versatile operator interface designed specifically for use with ABB’s low-voltage AC drives, providing intuitive control and monitoring for the connected motor systems. It belongs to ABB’s CP400M series of control panels and serves as a high-performance, user-friendly HMI (Human-Machine Interface) for both commissioning and daily operation of drives in industrial environments.
Equipped with a bright, easy-to-read backlit display and responsive membrane keys, the CP415M allows operators to configure parameters, perform diagnostics, monitor real-time performance, and manage control tasks directly from the panel — without requiring additional software or external devices.
The CP415M is also ideal for fast parameter transfer between drives, backup and restore operations, and localized drive control, offering a flexible interface for a wide range of industrial applications. Designed to be rugged and compact, this panel can be either mounted directly on the drive or installed remotely via a panel-mounting option.
As part of ABB’s globally recognized drive ecosystem, the CP415M integrates seamlessly into ABB’s automation systems, providing a highly efficient, cost-effective solution for enhancing user interaction with motor control systems.
Product Specifications
| Parameter | Value |
|---|---|
| Model | CP415M |
| Product Code | 1SBP260191R1001 |
| Product Type | Operator Control Panel (HMI) |
| Display Type | LCD, backlit, monochrome |
| Display Resolution | 4-line × 20-character text display |
| Keypad | 6 membrane keys (Start, Stop, Navigation, Enter) |
| Compatibility | ABB ACS310, ACS355, ACS550, ACS580 series drives |
| Parameter Storage Capacity | Up to 5 parameter sets |
| Communication Interface | Panel bus (RS-485 based), direct connector |
| Operating Voltage | Powered from drive (5 VDC) |
| Operating Temperature Range | -10 °C to +50 °C |
| Storage Temperature Range | -20 °C to +70 °C |
| Humidity | 5% to 95% RH non-condensing |
| Ingress Protection (Front) | IP54 (panel-mounted), IP20 (handheld) |
| Certifications | CE, UL, cULus |
| Parameter Backup & Restore | Yes |
| Mounting Options | Drive-mounted, remote panel-mounted (with kit) |
| Languages Supported | Multi-language (selectable) |
| Dimensions (W × H × D) | 96 x 96 x 41 mm |
| Weight | 0.21 kg |
| Compliance Standards | EN 61800-5-1, EN 61000-6-4, EN 61000-6-2 |
| Parameter Copy Function | Supported |
| Real-time Monitoring | Supported |
Applications
The ABB CP415M Control Panel serves a broad range of applications where intuitive local interaction with ABB drives is required:
-
Pumping Systems
Operator-friendly interface for adjusting pump speed and flow rates.
-
HVAC
Monitoring and controlling fans, blowers, compressors, and chillers.
-
Material Handling & Conveyors
Optimized motor control for conveyor systems and automated handling.
-
Packaging & Processing
Direct control and monitoring of motor-driven equipment in food & beverage plants.
-
OEM Equipment
Provides an embedded HMI option for machinery manufacturers.
-
General Industrial Automation
Any system where quick access to drive configuration and performance is needed.
Product Advantages
-
Enhanced User Interface
4-line × 20-character display with clear navigation.
-
Fast Parameter Copy & Restore
Store and manage up to 5 parameter sets for efficient commissioning.
-
Robust Design
IP54 protection when panel-mounted ensures reliability in industrial environments.
-
Plug & Play Integration
Direct drive connection with no external power required.
-
Global Usability
Multi-language support for international deployment.
-
Compact Footprint
Easy to install on drives or control panels, saving valuable space.
-
Rapid Troubleshooting
Real-time monitoring of faults and drive status.
-
High Compatibility
Works across multiple ABB low-voltage drive families.
-
Energy-Efficient Operation
Low power consumption, powered from the connected drive.
-
Reliable ABB Quality
Backed by ABB’s industry-leading reliability and global support.
Frequently Asked Questions (FAQ)
-
Which ABB drives are compatible with the CP415M panel?
It works with ACS310, ACS355, ACS550, and ACS580 drives.
-
Can I back up drive parameters with this panel?
Yes, up to 5 parameter sets can be backed up and restored.
-
Does the CP415M require external power?
No, it draws 5 VDC power from the drive via the panel bus.
-
Can the panel be mounted remotely?
Yes, with an optional remote mounting kit.
-
Is the panel certified for industrial use?
Yes, it meets CE, UL, and cULus certifications.
-
Does it support multiple languages?
Yes, operators can select their preferred language from the menu.
-
Can it show real-time monitoring data?
Yes, you can view operational data and fault status live on the display.
-
What is the ingress protection rating of the panel?
IP54 when panel-mounted, IP20 when used handheld.
-
Is it compatible with older ABB drives?
Yes, it supports several generations of ABB drives including ACS310/ACS355/ACS550.
-
What is the size and weight of the panel?
96 x 96 x 41 mm, and weighs 0.21 kg.
