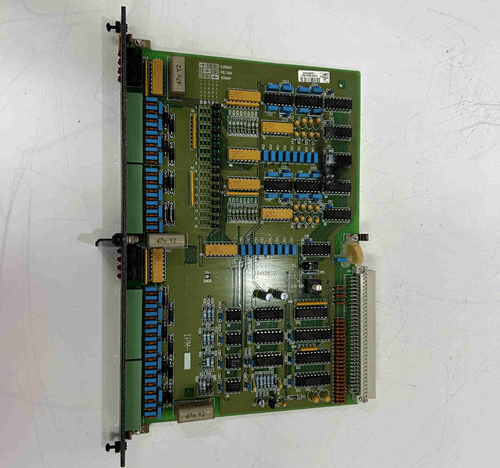

DEIF IPM-1 Control Panel Technical Specifications

DEIF IPM-1 is an integrated control panel used for generator sets, power systems, or automation equipment,Usually used in human-machine interface (HMI) scenarios, it provides functions such as status display, command input, and control operations.

It is a part of the DEIF power generation control system and is commonly used in distributed power sources, grid/off grid switching systems, or maritime power systems.

Core functions

Real time display of operating parameters of the generator set (such as voltage, current, frequency, power, etc.)

Provide control operation interfaces, such as start/stop, switch modes, etc

Monitor the system status and issue alarm messages (such as overload, undervoltage, faults, etc.)

Communication and coordination with main control modules (such as DEIF AGC-4, GPC, LSQ series, etc.)

Support user menu operations and parameter settings

Technical parameters (may vary by version)

Power input: 24V DC power supply (typical)

Display screen type: LCD display screen with backlight

Communication interfaces: RS-485, CAN, Ethernet (depending on configuration)

Button/knob function: multifunctional button+coding knob, used for mode selection and data setting

Installation method: Embedded panel installation (commonly found on distribution cabinet panels)

Environmental adaptability: Industrial grade anti-interference, anti vibration, wide temperature design

Module Features

Compact integrated design for easy panel wiring and maintenance

The visual interface is clear and intuitive, suitable for non-technical personnel to operate

Good compatibility and seamless collaboration with multiple DEIF controller products

Programmable menu, supporting user-defined display and function configuration

High reliability, adaptable to complex industrial and maritime operating environments
