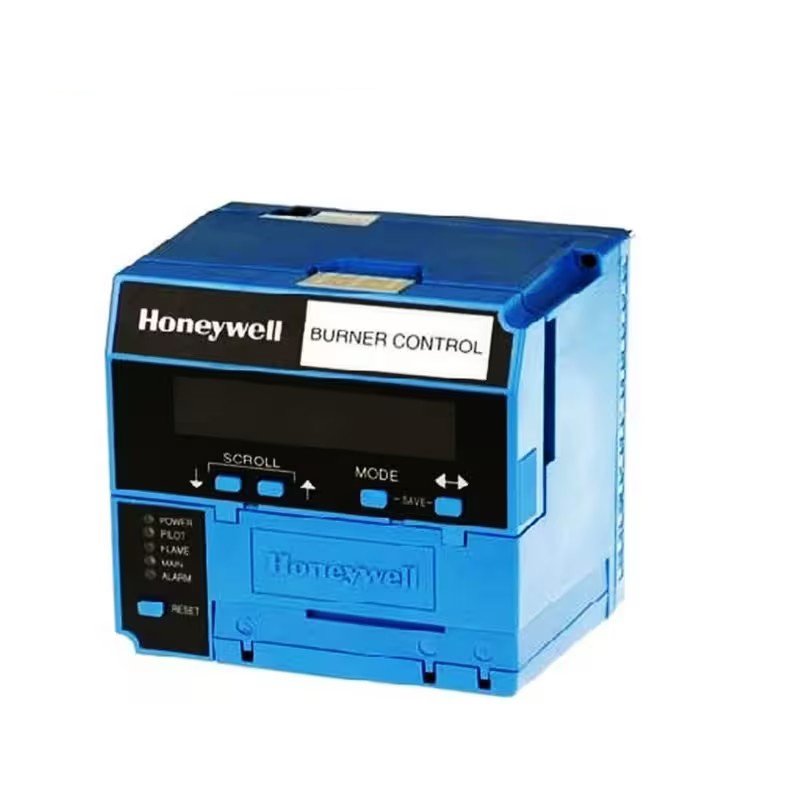

Honeywell RM7840G1014 Burner Control

The Honeywell RM7840G1014 is a microprocessor-based integrated burner control. It automates the firing of gas, oil, coal, or combination fuel single burner applications. This control offers a comprehensive suite of safety features, functional capabilities, and performance advantages over conventional controls.

Key Features

• Automatic Burner Sequencing: This feature ensures a safe and efficient startup and shutdown sequence.
• Flame Supervision: It continuously monitors the flame for both safety and performance.
• System Status Indication: Clear visual indicators display the system’s operating status.
• Self-Diagnostics: The system identifies potential issues and aids in troubleshooting.
• Application Flexibility: Users can adapt it to various burner types and fuel sources.
• Communication Interface: This allows integration with other control systems.
• Interchangeable Flame Amplifiers: The control accommodates different flame detection technologies.
• Nonvolatile Memory: It retains data even in case of power loss.
• Compatibility: It seamlessly integrates with existing Honeywell flame detectors.

Technical Specifications

• Voltage: 120 Vac (+10%, -15%)
• Frequency: 50 Hz; 60 Hz (±10%)
• Dimensions: 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase
• Weight: 1 lb 13 oz.
• Approvals: UL, CSA, FCC
• Operating Temperature: -40°F to +140°F

Applications

• Industrial Burners
• Commercial Heating Systems
• Boilers
