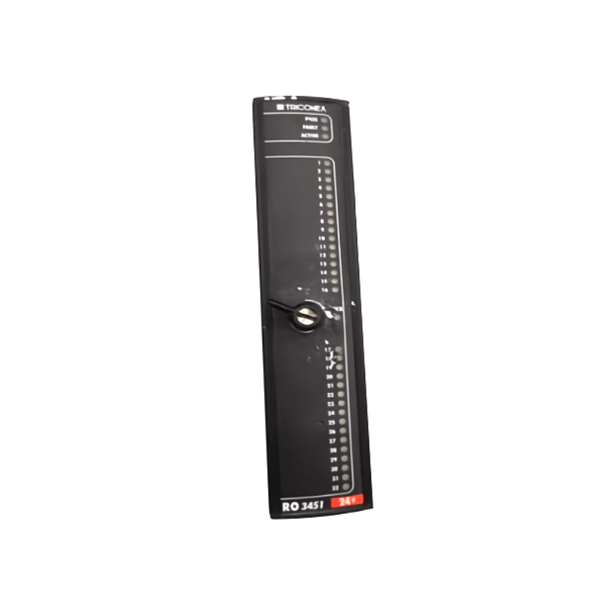

Triconex 3451 Relay Output Module
Manufacturer:Invensys Triconex
Product Number:3451
Product Type: Relay Output Module
Origin:USA
Dimensions:150 x 130 x 50 mm
Weight:0.85 kg
Views:97
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24
Product Description
The Invensys Triconex 3451 Relay Output Module is a critical component of the Triconex Safety Instrumented System (SIS), designed to provide high-reliability relay outputs for industrial automation and safety applications. This module ensures precise control over processes, contributing to the safe and efficient operation of industrial systems. It is particularly suitable for applications where safety and reliability are paramount, such as oil and gas, chemical processing, power generation, and water and wastewater treatment.
Product Specifications
| Feature | Specification |
|---|---|
| Model Number | 3451 |
| Number of Channels | 32, commoned in pairs |
| Contact Type | Solid-State Relay |
| Nominal Input Voltage | +24 V |
| Operational Voltage Range | Up to +30 V |
| Maximum Switching Voltage | +33 V peak |
| Maximum Switching Power | 12 W |
| Maximum Off-State Leakage | <100 μA |
| Nominal Current per Channel | 0.5 A |
| Maximum Overcurrent per Channel | 0.7 A |
| Voltage Drop at Baseplate | <0.25 V at 0.5 A |
| Fuses | Mounted on the baseplate, 1 per output, 0.75 A, fast-acting |
| Dimensions | 150 x 130 x 50 mm |
| Weight | 0.85 kg |
| Operating Temperature | 0°C to 55°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Product Applications
The Triconex 3451 Relay Output Module is utilized across various industries that require high levels of safety and reliability in their control systems. Key applications include:
- Oil & Gas Industry: Used in drilling, production, and refining processes to ensure safe operations and compliance with regulatory requirements.
- Chemical Processing: Integral to monitoring and controlling chemical reactions, ensuring processes remain within safe operational limits.
- Power Generation: Employed in critical control loops, including turbine protection and emergency shutdown systems.
- Water and Wastewater Treatment: Ensures the safe and efficient operation of treatment processes, protecting public health and the environment.
Product Advantages
- High Reliability and Efficiency: Ensures the safe and smooth operation of industrial processes with superior performance and reliability.
- Three-Mode Redundancy (TMR) Architecture: Provides increased system availability and fault tolerance, enhancing overall system safety.
- High-Speed Processing: Capable of handling real-time and mission-critical applications, ensuring timely response to process changes.
- Energy Efficiency: Low power consumption contributes to overall operational cost savings.
- Compact Design: Facilitates easy integration into existing systems without requiring significant space.
