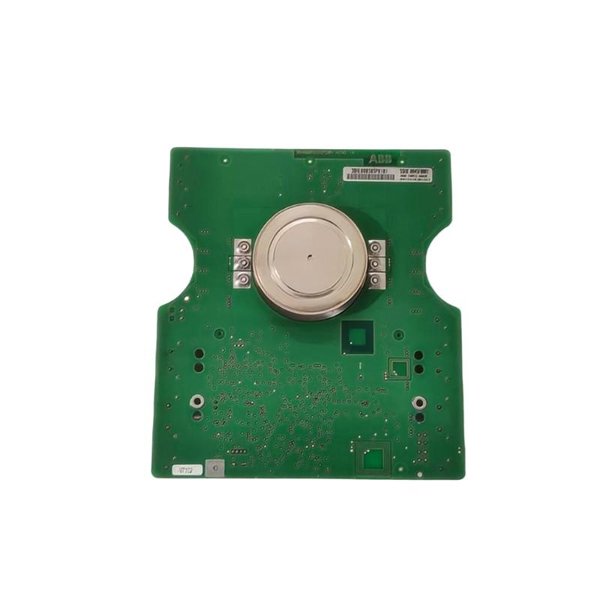

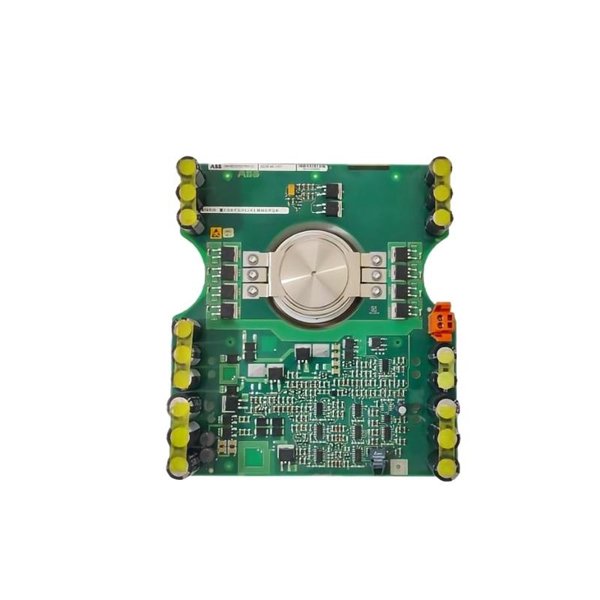

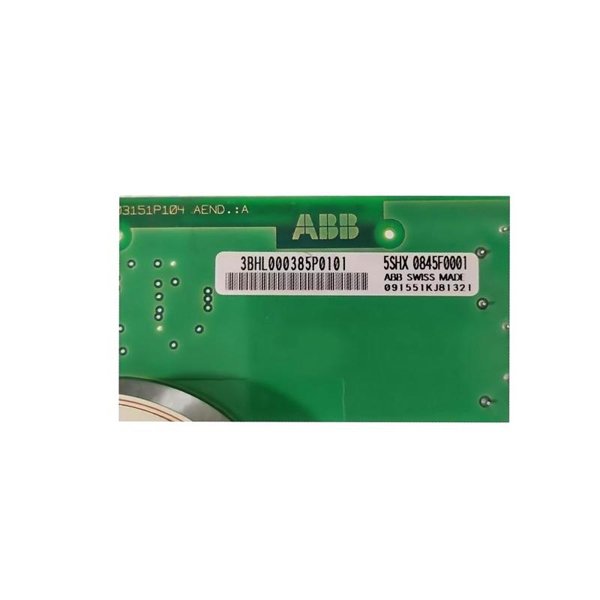

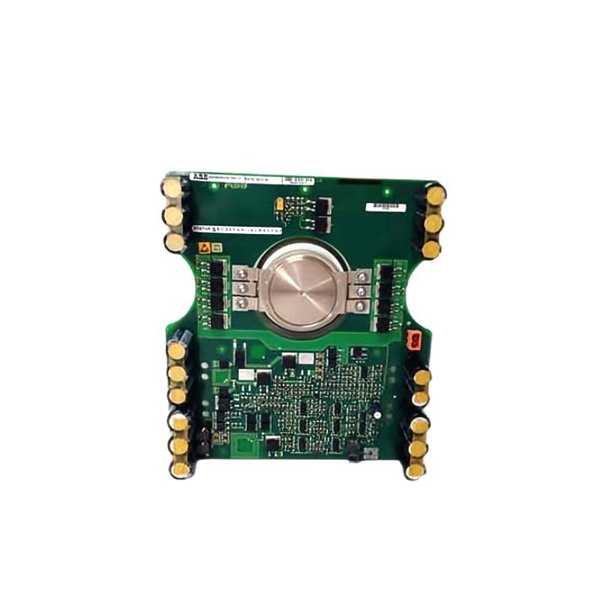

ABB 5SGX0845F0001 3BHB003387R0101 IGCT Module

The ABB 5SGX0845F0001 3BHB003387R0101 is an Integrated Gate-Commutated Thyristor (IGCT) module designed for high-power applications requiring efficient and reliable switching. IGCTs combine the advantages of Gate Turn-Off (GTO) thyristors and Insulated Gate Bipolar Transistors (IGBTs), offering high current handling capabilities and fast switching speeds. This module is engineered to meet the demands of industrial environments, providing robust performance in applications such as medium-voltage drives, power converters, and renewable energy systems.

Product Specifications

Product Applications

The ABB 5SGX0845F0001 IGCT module is suitable for a variety of high-power applications, including:

• Medium-Voltage Drives: Used in industrial motor control systems for efficient power conversion.

• Power Converters: Integral in systems requiring high-speed switching and high current handling.

• Renewable Energy Systems: Applicable in wind and solar power installations for energy conversion and grid integration.

• Rail Traction Systems: Employed in electric locomotives and metro systems for propulsion control.

• HVDC Transmission: Utilized in high-voltage direct current systems for long-distance power transmission.

Product Advantages

• High Efficiency: Offers low conduction and switching losses, improving overall system efficiency.

• Robust Design: Engineered to withstand harsh industrial environments, ensuring longevity and reliability.

• Integrated Gate Drive: Simplifies system design by incorporating the gate drive circuit within the module.

• Compact Size: Space-saving design facilitates easy integration into existing systems.

• Advanced Protection: Built-in protection mechanisms safeguard against overvoltage, overcurrent, and thermal overloads.

FAQ

1. What are the recommended gate drive conditions for optimal switching performance?

   The IGCT should be driven with a gate voltage of approximately 12V, with low impedance and fast rise/fall times to ensure efficient and reliable switching behavior under high load conditions.

2. Is there a specific mounting orientation required for thermal management?

   Yes, the module should be mounted vertically with heatsink fins aligned vertically as well, ensuring natural convection and airflow are not obstructed. Thermal interface materials are also critical for efficient heat dissipation.

3. What are the typical failure modes for this IGCT module, and how can they be mitigated?

   Common failure modes include thermal overload, gate drive failure, and overcurrent. These can be mitigated using fast-acting fuses, temperature sensors on the heat sink, and monitoring gate drive signals.

4. Can this module be paralleled with others for higher current capacity?

   Yes, but paralleling IGCTs requires matched devices and precise gate timing synchronization. Additional snubber circuits and symmetrical layout are recommended to avoid current imbalance.

5. How should the gate driver be protected in case of short circuit across the device?

   A gate driver with integrated short-circuit detection and fast shut-down logic should be used. Additionally, series gate resistors and proper PCB layout help protect the gate driver circuit.

6. What precautions are necessary during handling and installation of the IGCT module?

   The module is sensitive to electrostatic discharge (ESD). Use an antistatic wrist strap and handle only by insulated edges. Also, avoid applying mechanical stress to the terminals during installation.

7. Is it compatible with regenerative drives or bidirectional inverters?

   Yes, this IGCT module is suitable for regenerative and four-quadrant drives, provided that the commutation circuit and gate drive are appropriately designed to handle bidirectional current flow.

8. How often should the thermal interface materials or heatsinks be inspected in continuous operation?

   It is advisable to inspect the thermal paste and mechanical mounting torque every 12-18 months during preventive maintenance, especially in high-duty-cycle or vibration-prone environments.

9. What is the recommended storage duration, and does it require periodic reconditioning?

   If stored in a dry, controlled environment, the module has a shelf life of up to 5 years. No reconditioning is needed if vacuum-sealed, but visual inspection is recommended before deployment.

10. Does the IGCT module support fault-tolerant operation or self-healing features?

    No, fault-tolerance must be implemented at the system level using redundant modules or fault detection mechanisms. The IGCT itself does not have self-healing capabilities.
