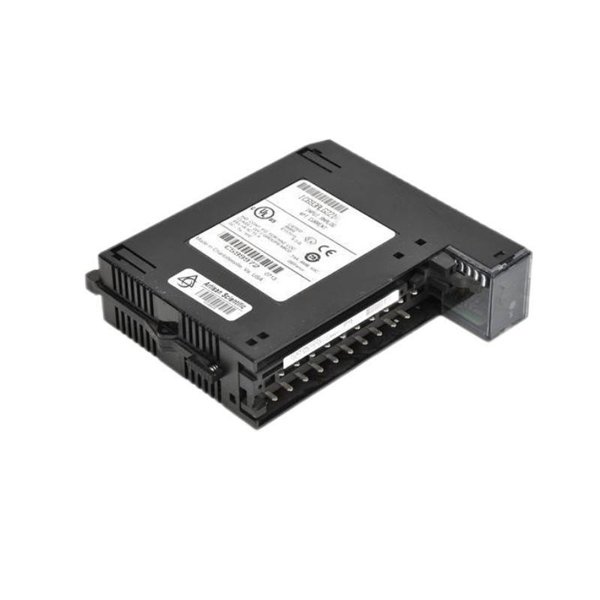

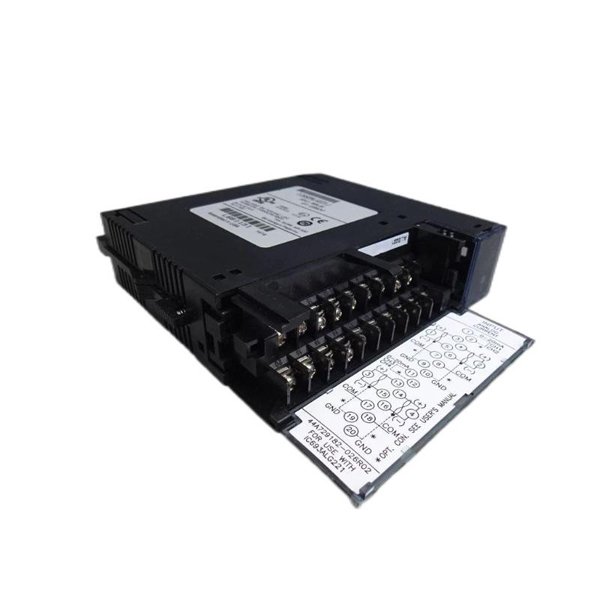

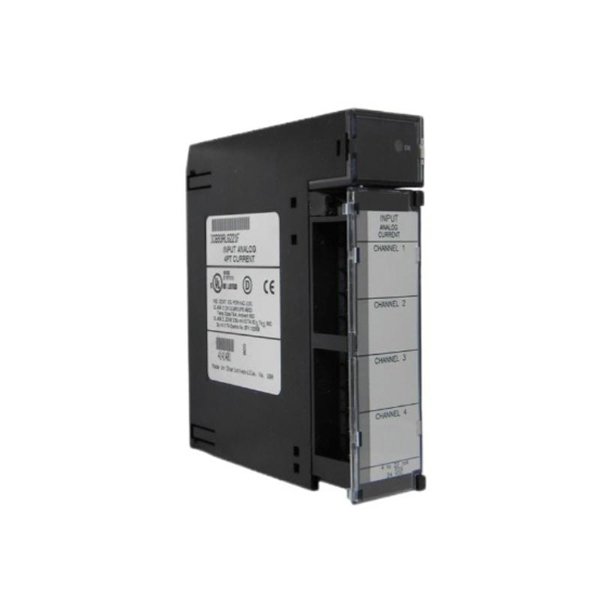

General Electric IC693ALG221 Analog Input Module

The GE IC693ALG221 Analog Input Module is a robust and versatile module designed for integration with the GE Fanuc Rx3i PLC system. It is engineered to accurately convert multiple analog input signals, such as voltage and current, into digital data for processing by the PLC. The IC693ALG221 provides eight channels of high-resolution analog input, making it suitable for demanding industrial environments where precision and reliability are critical.

With enhanced signal conditioning and galvanic isolation between channels, the IC693ALG221 ensures signal integrity and system safety. Its rugged construction and proven design provide long-term stability and performance, supporting applications across diverse industrial sectors. This module is an ideal solution for industries requiring accurate analog measurement integrated directly into control systems.

Product Specifications

Product Applications

• Industrial process monitoring and control

• Data acquisition from various analog sensors including pressure, temperature, and flow sensors

• Closed-loop feedback control in automation systems

• Integration into manufacturing plants, chemical processing, and power generation control networks

• Environmental monitoring and HVAC control systems

• Batch processing and quality control in production lines

• Anywhere precise analog measurement is required within a PLC system environment

Product Advantages

• High Accuracy and Resolution: The 16-bit ADC ensures precise analog-to-digital conversion for reliable data processing.

• Channel Isolation: Galvanic isolation between channels minimizes noise interference and protects against electrical faults.

• Wide Input Range: Supports both voltage (±10 V) and current (4-20 mA) inputs, accommodating a broad range of sensor outputs.

• Durability: Designed to perform reliably in harsh industrial environments with temperature and electrical stress tolerance.

• Ease of Use: Plug-and-play design allows straightforward installation into the Rx3i PLC rack with minimal configuration.

• Fast Sampling Rate: Provides up to 100 samples per second per channel to support real-time monitoring and control.

• Compact Form Factor: Efficiently designed to save space inside control cabinets without compromising functionality.

• Certified Quality: Meets international safety and performance standards, ensuring dependable operation.

Frequently Asked Questions (FAQ)

1. How many channels does the IC693ALG221 module support?

   It supports 8 analog input channels.

2. What types of analog signals can it measure?

   It can measure voltage signals (±10 V) and current signals (4-20 mA).

3. What level of accuracy does the module provide?

   The module provides ±0.1% full scale accuracy.

4. Does the module provide isolation between channels?

   Yes, it features galvanic isolation between each input channel.

5. What are the physical dimensions and weight of the IC693ALG221?

   The module measures 120 x 40 x 100 mm and weighs 0.25 kg.

6. What is the operating temperature range?

   The module operates safely from -20°C to +70°C.

7. Is it compatible with other GE PLC series?

   The IC693ALG221 is designed specifically for the Rx3i series.

8. What is the input signal resolution?

   It features a 16-bit analog-to-digital converter for high resolution.

9. What is the sampling rate of the module?

   It can sample up to 100 times per second per channel.

10. What kind of power supply does the module require?

    The module is powered by 5 V DC supplied from the Rx3i backplane.
