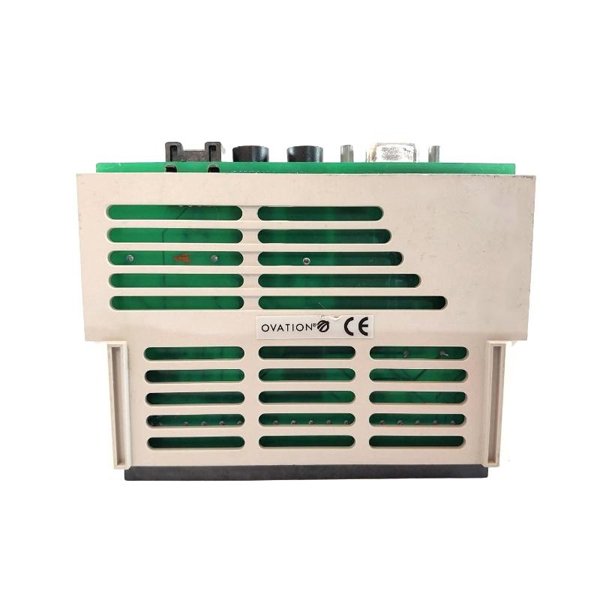

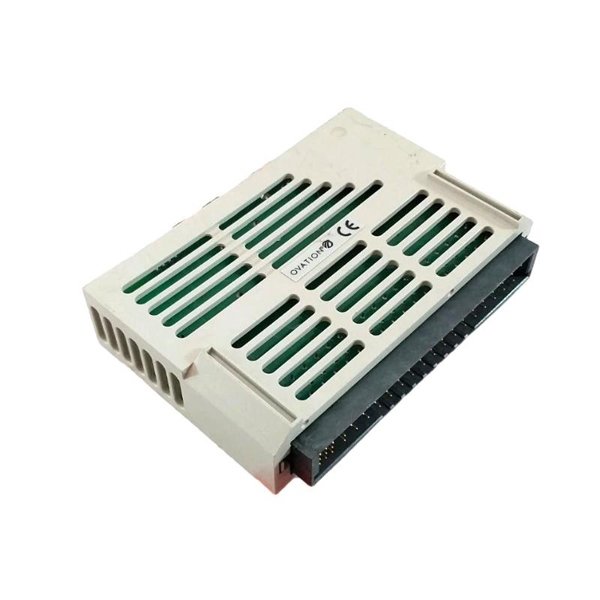

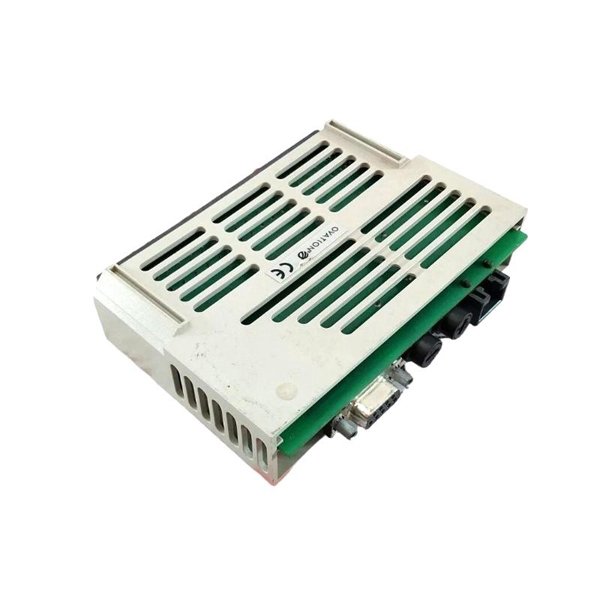

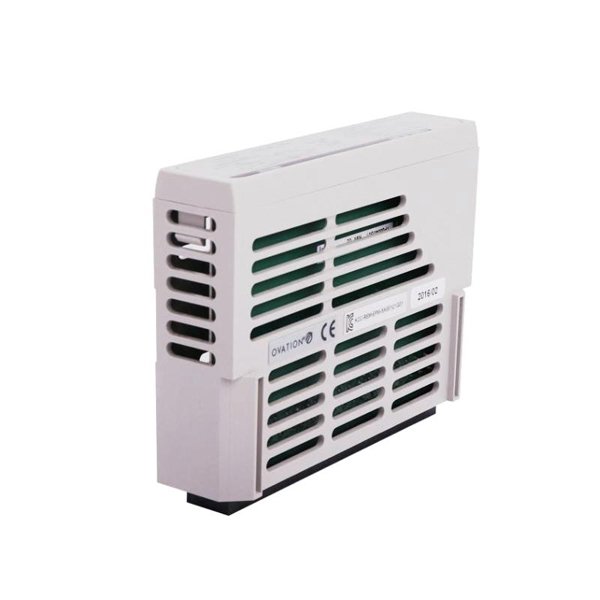

Ovation 1C31181G01 Remote I/O Module

The Ovation 1C31181G01 Remote I/O Module allows for seamless communication between field instruments and the Ovation control system, facilitating the remote monitoring and control of industrial processes. By supporting both analog and digital signals, this module ensures that critical data from sensors, switches, and other field devices can be transmitted accurately to the control system.

Engineered for use in demanding industrial environments, the module provides a rugged and compact solution that can be easily mounted on a DIN rail, making it ideal for control panels with limited space. It supports up to 16 I/O channels, which allows for greater flexibility in handling a variety of devices within different industrial sectors.

The Ovation 1C31181G01 is commonly used in sectors such as power generation, chemical processing, water treatment, and manufacturing, offering superior performance and reliability in remote I/O applications.

Technical Specifications

Applications

The Ovation 1C31181G01 Remote I/O Module is designed to enhance the performance of the Ovation control system by providing remote I/O capabilities for a wide range of industrial applications. Some of the main sectors and use cases include:

1. Power Generation: Widely used for monitoring and controlling power generation processes, including turbines, generators, and other critical systems.

2. Oil & Gas: Integrates with sensors, pumps, and valves for real-time data acquisition and control in oil fields and refineries.

3. Chemical Processing: Facilitates the control of chemical reactions, temperature, pressure, and flow rates in chemical production environments.

4. Water Treatment: Used to monitor and control filtration systems, chemical dosing, and pumps in water and wastewater treatment plants.

5. Manufacturing: Provides remote monitoring and control over automated production lines, ensuring that equipment such as conveyors and robots are running smoothly.

6. Building Automation: Supports the control and monitoring of HVAC systems, lighting, and security systems in large commercial buildings or industrial facilities.

Advantages

1. Remote I/O Management: Provides the ability to connect and control devices from remote locations, reducing the need for additional cabling and complex infrastructure.

2. Compact and Rugged Design: Its small form factor and DIN rail mounting option make it easy to install in tight spaces while withstanding harsh industrial conditions.

3. Versatile Signal Handling: Capable of handling both analog and digital signals (e.g., 4-20mA, 0-10V), making it adaptable to a wide range of field devices.

4. Scalability: Supports up to 16 I/O channels, allowing for future expansion of the system without requiring significant modifications.

5. Reliable Communication: Supports Modbus and Ethernet/IP protocols for seamless communication with various control systems and field devices.

6. High Performance: Offers reliable real-time data collection and control for critical industrial processes, ensuring optimal performance and minimal downtime.

7. Energy Efficient: Operates on a 24V DC power supply, ensuring low power consumption while maintaining high reliability.

8. Easy Integration: Seamlessly integrates with the Ovation control system, simplifying installation and reducing setup time.

9. Certification and Compliance: CE and UL certified for safety and quality assurance, ensuring compliance with industry standards.

10. Improved Productivity: By enabling remote monitoring and control, the module helps reduce the need for manual interventions, improving overall system efficiency and productivity.

FAQ

1. What is the primary function of the Ovation 1C31181G01 Remote I/O Module?

   • The primary function of the module is to provide remote input/output connectivity for the Ovation control system, allowing for real-time monitoring and control of field devices over large industrial processes.

2. How many channels does the Ovation 1C31181G01 support?

   • The module supports up to 16 I/O channels, offering flexibility for connecting multiple devices.

3. What types of signals can the module process?

   • The module can process both analog (e.g., 4-20mA, 0-10V) and digital signals, making it versatile for a variety of field devices.

4. What is the power supply requirement for this module?

   • The Ovation 1C31181G01 operates on a 24V DC power supply.

5. Can the module be used in outdoor environments?

   • While the module is designed for industrial environments, it should be installed in a protective enclosure if used outdoors to shield it from extreme weather conditions.

6. What is the temperature range for operating the Ovation 1C31181G01?

   • The module operates within a temperature range of -20°C to 60°C.

7. Is this module compatible with the Ovation control system?

   • Yes, the Ovation 1C31181G01 integrates seamlessly with the Ovation control system, ensuring smooth data communication and control.

8. What mounting method is supported by this module?

   • The module is designed for DIN rail mounting, making installation straightforward and secure.

9. Which communication protocols does this module support?

   • The Ovation 1C31181G01 supports Modbus and Ethernet/IP protocols for reliable communication.

10. What industries typically use this module?

    • The module is widely used in industries such as power generation, oil & gas, water treatment, chemical processing, manufacturing, and building automation.
