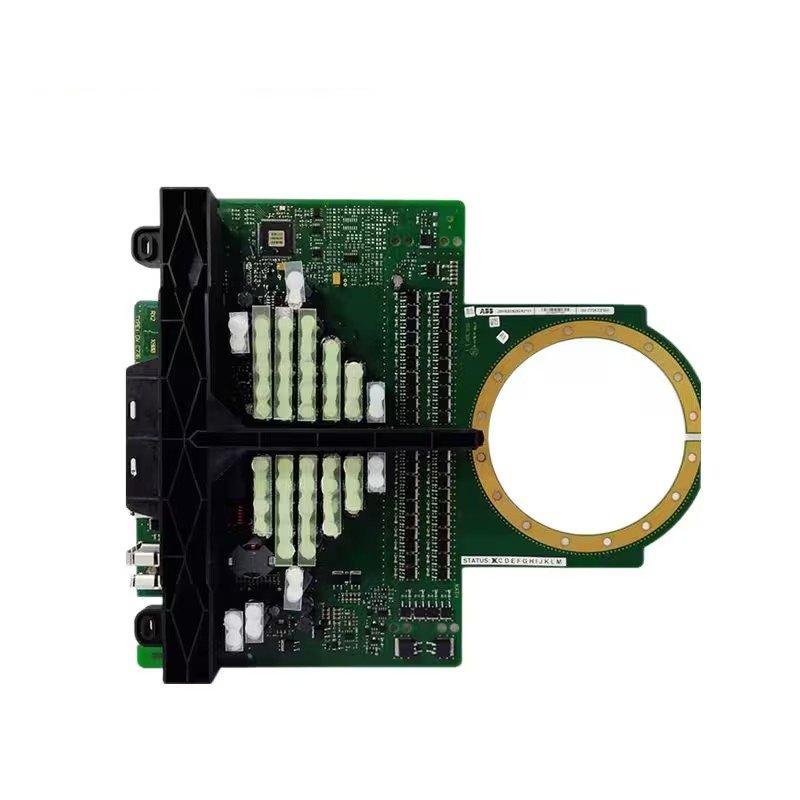

The ABB 3BHE039203R0101/5SXE12-0184 GVC736CE101 is a control module used in industrial automation and control systems. It efficiently manages power control within these systems.

Key Components and Functions

• Thyristor: This module uses a thyristor as its main switching component. Thyristors conduct current in one direction once triggered, making them ideal for AC power control in motor drives, heating elements, and lighting.
• Input/Output Interfaces: The module includes various input and output interfaces to connect with other devices and systems. These interfaces facilitate signal transmission, control, and monitoring.
• Control Logic: The embedded control logic enables precise management of the thyristor’s operation. Programmers can set it to regulate power, respond to feedback signals, and implement protective measures.

Applications

Given the module’s characteristics, it finds use in a wide range of industrial applications:

• Motor Control: It regulates the speed and torque of AC motors in various industrial processes.
• Power Conversion: The module converts AC power to DC power or vice versa, as needed in power supply systems.
• Heating and Cooling: It controls the output of heating elements or cooling systems.
• Lighting Control: The module dims or switches lights in industrial environments.
