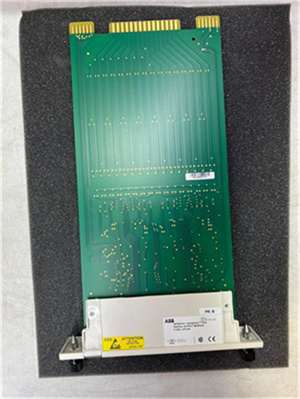

ABB SPDSO14 Product Details

ABB SPDSO14 is an analog output module produced by ABB.The following is a detailed introduction to the product.

Main functions and applications

Analog output:The main function of SPDSO14 is analog output,which can output various analog signals such as voltage,current,etc.This makes it very suitable for industrial automation systems that require precise control of output signals.

Hardware configuration:This product is mainly used for hardware configuration of field control units,including plug-in configuration(such as host plug-in,power plug-in,I/O plug-in,communication plug-in,etc.),hardware redundancy configuration,and hardware installation tasks.

Industrial automation:SPDSO14 is commonly used in industrial automation control systems,such as Symphony Plus I/O HR series(Harmony Rack),etc.It can be used as part of a subsystem in the Harmony control unit(HCU)and work in conjunction with the control subsystem and other I/O subsystems.

Technical features

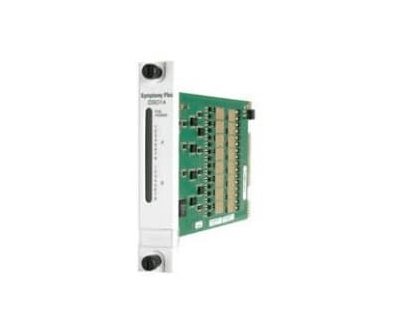

Digital output channel:Although often described as an analog output module,there are also data indicating that SPDSO14 supports 16 digital output channels(DO)with open collector type.This may mean that the product can have both analog and digital output functions in certain applications.

Communication capability:SPDSO14 provides a path between the controller and the I/O module,communicating with the controller through the ASI module to achieve the transmission of input and output data.This enhances the flexibility and integration of the system.

Status indication:The input register of the module reflects the input signal status,and the output point reflects the output latch status,which is convenient for system monitoring and troubleshooting.

Physical parameters

Dimensions:SPDSO14 has moderate dimensions,with a net depth of 73.66mm,a net height of 360.68mm,and a net width of 279.4mm.

Weight:The net weight of the product is 0kg(may vary depending on production batches and configurations).

Environmental category:According to the environmental protection WEEE category,SPDSO14 is classified as Class 5(small equipment,external dimensions not exceeding 50 cm).
