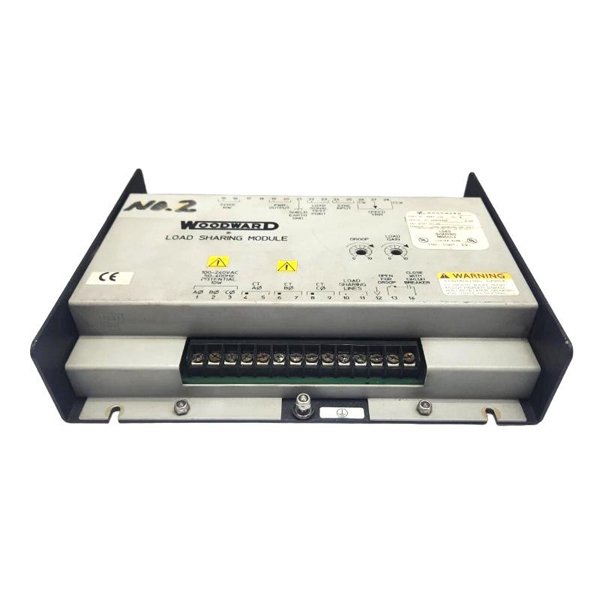

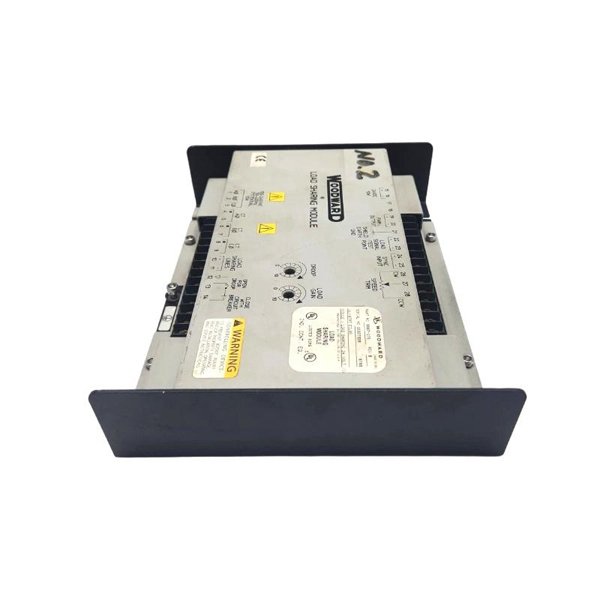

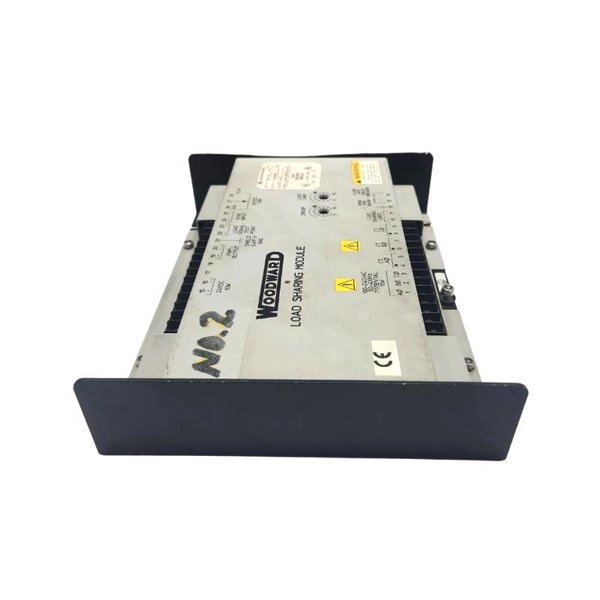

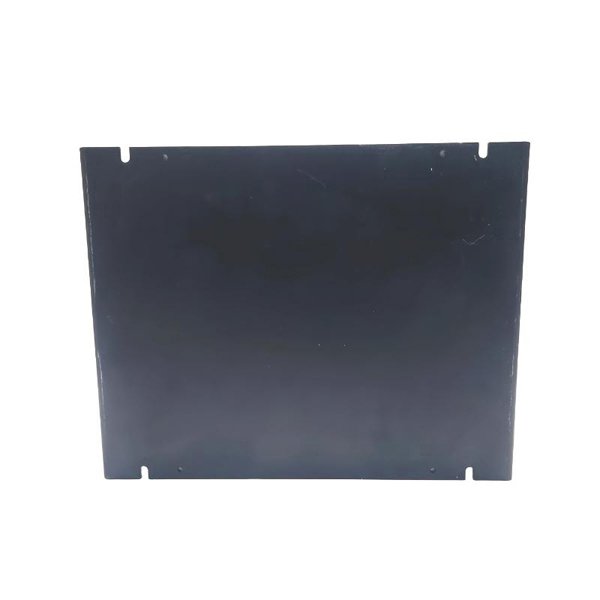

Woodward 9907-175 Load Sharing Module

The Woodward 9907-175 Load Sharing Module is a specialized control component used in generator sets for load sharing, synchronization, and parallel operation. Designed with high precision and reliability, this module ensures even distribution of electrical loads between multiple generator units running in parallel. It forms a core part of Woodward’s legacy and modern generator control systems, offering analog interface capabilities for real-time adjustments in load control.

The 9907-175 module enables multiple generators to work cohesively, avoiding overload on a single unit while enhancing efficiency and system longevity. It works seamlessly with Woodward governors and speed controls, using torque-matching techniques to balance load distribution.

This module is often applied in critical power generation environments such as power plants, marine vessels, data centers, and remote industrial operations where reliable power synchronization is crucial.

Technical Specifications

Product Applications

The Woodward 9907-175 module is designed for industrial power systems where precise load sharing is required between multiple generator sets:

• Power Plants & Utilities

  Enables synchronized generator operation for peak load handling and system redundancy.

• Marine Power Systems

  Used in shipboard generator systems for balanced power across propulsion and auxiliary systems.

• Data Centers

  Helps maintain uptime by balancing power from redundant generator units.

• Remote Oil & Gas Sites

  Ensures reliable power distribution across field generators in remote or unmanned stations.

• Hospitals & Emergency Backup

  Supports critical systems by stabilizing power flow between backup generators.

• Mining and Heavy Industry

  Controls parallel operation of large engine-driven generators in harsh environments.

Product Advantages

• Precise Load Balancing

  Ensures proportional distribution of load, preventing overloading or under-utilization.

• Enhanced System Stability

  Improves synchronization and reduces fluctuations in generator output.

• Seamless Integration

  Designed to integrate effortlessly with Woodward analog governors and other controls.

• Flexible Mounting

  Can be mounted in panels or DIN rails, supporting varied installation requirements.

• Reliable in Harsh Conditions

  Wide operating temperature range and robust build for extreme environments.

• Low Power Consumption

  Operates efficiently with minimal power draw, ideal for battery-backed systems.

Frequently Asked Questions (FAQ)

1. Q: What does the 9907-175 module do in a generator system?

   A: It manages load sharing and ensures synchronized operation among parallel generators.

2. Q: Is it compatible with digital control systems?

   A: It is primarily designed for analog systems but can work with certain digital-to-analog interfaces.

3. Q: What power supply is required for this module?

   A: It operates on 18–32 V DC, commonly 24 V systems in industrial settings.

4. Q: Can it be used with non-Woodward governors?

   A: While optimized for Woodward products, it may be used with compatible analog-based governors.

5. Q: How is the module mounted?

   A: It supports both panel mounting and DIN rail installation.

6. Q: What’s the environmental operating range?

   A: It is built to function in temperatures from –40 °C to +85 °C.

7. Q: Does the module require configuration software?

   A: No, it is analog and hardware-configured through wiring and voltage adjustments.

8. Q: Can I use this module in marine generator applications?

   A: Yes, it is well-suited for maritime environments due to its rugged build and EMI protection.

9. Q: What type of signal does it use for load control?

   A: It uses a torque bias signal to balance the load between generators.

10. Q: What are signs of a failing load sharing module?

    A: Uneven load distribution, generator hunting, or failure to synchronize properly are key symptoms.
